Remove/Install Engine Oil Level Sensor - AR18.40-S-5111EG
Model 447, 448 with engine 274
Model 907 with engine 274
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove oil pan bottom section. | Model 907 with engine 274 | AR01.45-D-7555TSC |
| Model 447, 448 with engine 274 | AR01.45-S-7555EG | ||

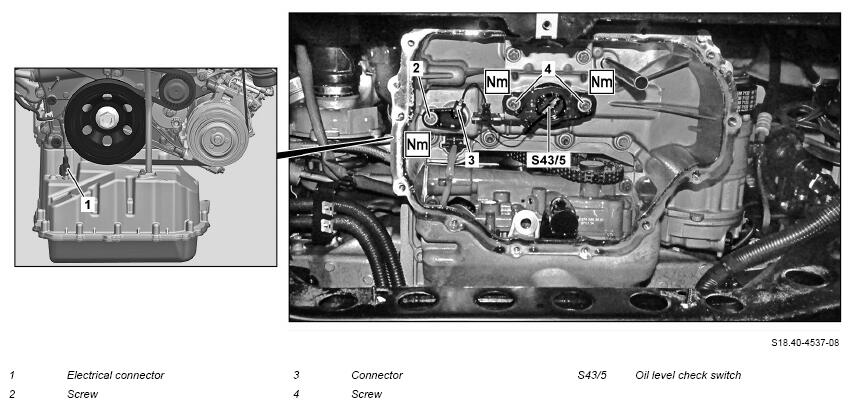

| 2 | Release electrical connector (1) and disconnect. | ||
| 3 | Remove screw/bolt (2). | *BA18.40-Z-1003-02KOB | |
| 4 | Remove plug (3) of the oil level check switch (S43/5) from the oil pan. | ||
| 5 | Unscrew screw/bolts (4). | *BA18.40-Z-1001-02KOB | |
| 6 | Remove electric line from the oil pan and remove oil level check switch (S43/5). | ||
| 7 | Install in the reverse order |
OIL LEVEL CHECK SWITCH
| Number | Designation | Engine 274 in model 907 | Engine 274 in model 447, 448 | |
|---|---|---|---|---|
| BA18.40-Z-1001-02KOB | Screw/bolt, oil level check switch to bracket | Nm | 9 | 9 |
OIL LEVEL CHECK SWITCH
| Number | Designation | Engine 274 in model 907 | Engine 274 in model 447, 448 | |
|---|---|---|---|---|
| BA18.40-Z-1003-02KOB | Screw/bolt, oil level check switch connector to oil pan top section | Nm | 9 | 9 |
