Overview Of System Components For Driver Assistance Systems - GF54.00-P-9998RDM
WARNING: This page is about a different car, the 2020 Mercedes-Benz SLC43 AMG, 2019 Mercedes-Benz SLC43 AMG, 2018 Mercedes-Benz SLC43 AMG, and 2017 Mercedes-Benz SLC43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 172.4 as of model year 2017

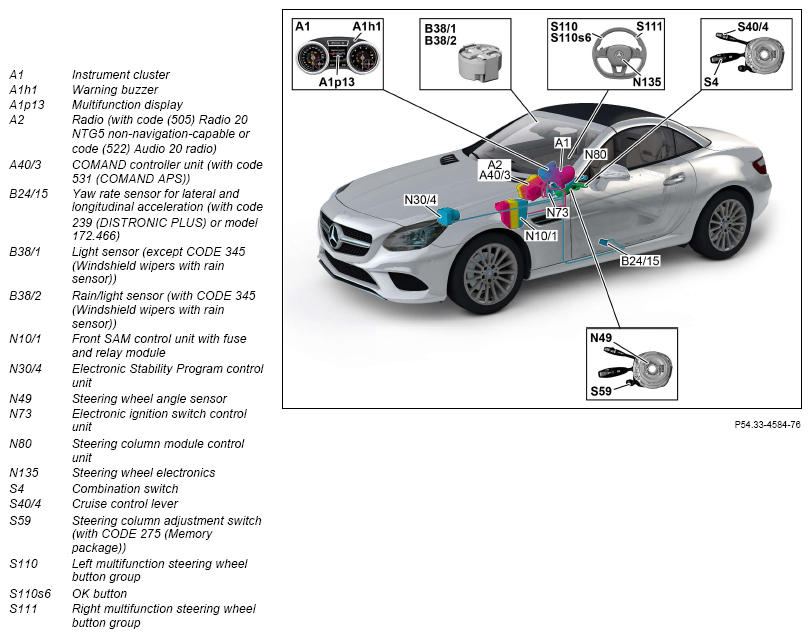

Attention assistance system

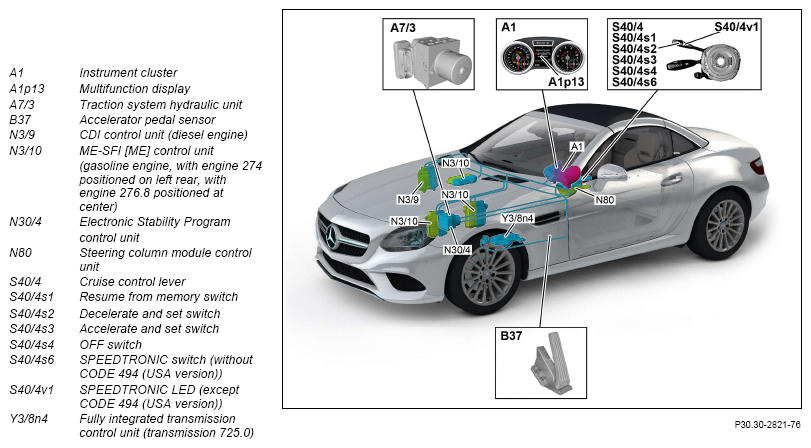

Cruise control

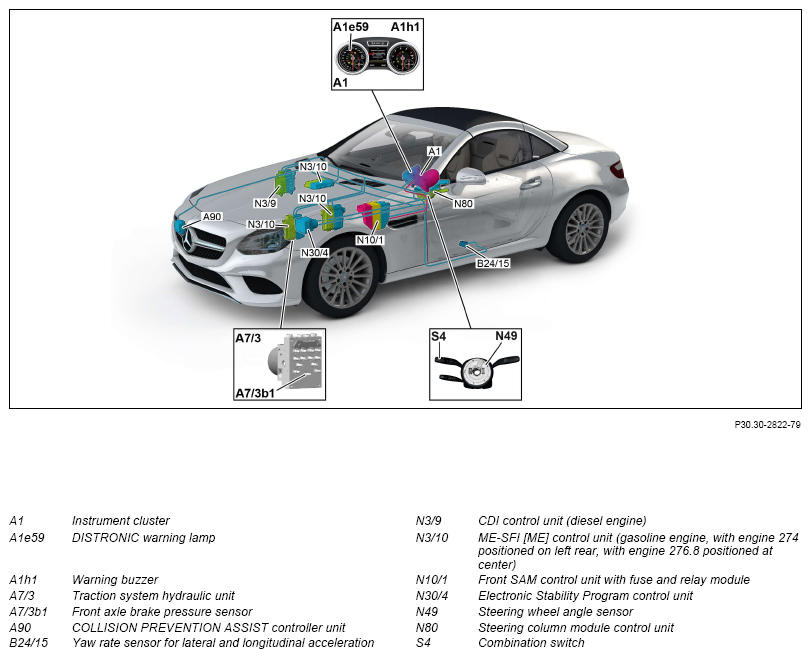

COLLISION PREVENTION ASSIST (with CODE 258 (COLLISION PREVENTION ASSIST))

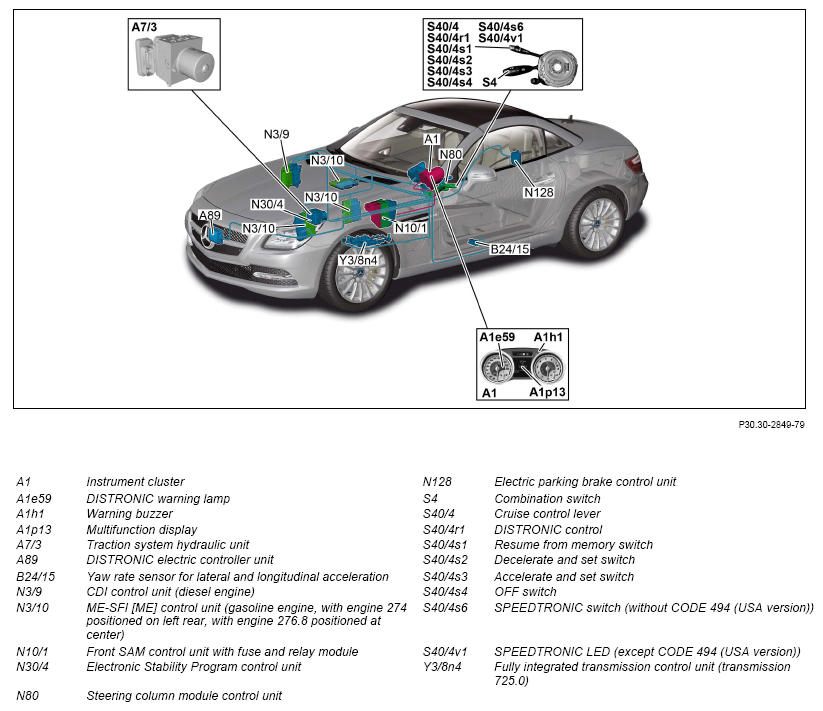

DISTRONIC PLUS (with CODE 239 (DISTRONIC PLUS))

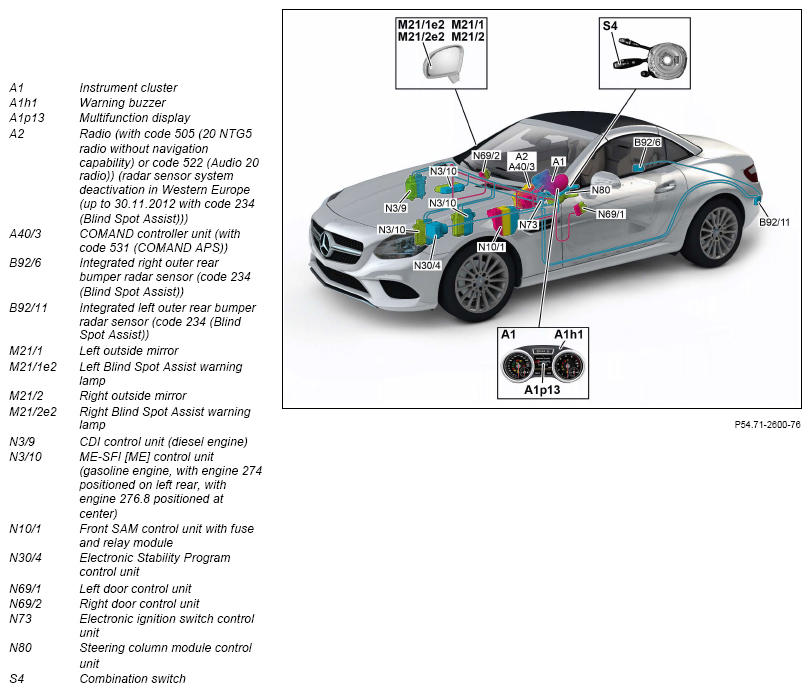

Blind Spot Assist (with code 234 (Blind Spot Assist))

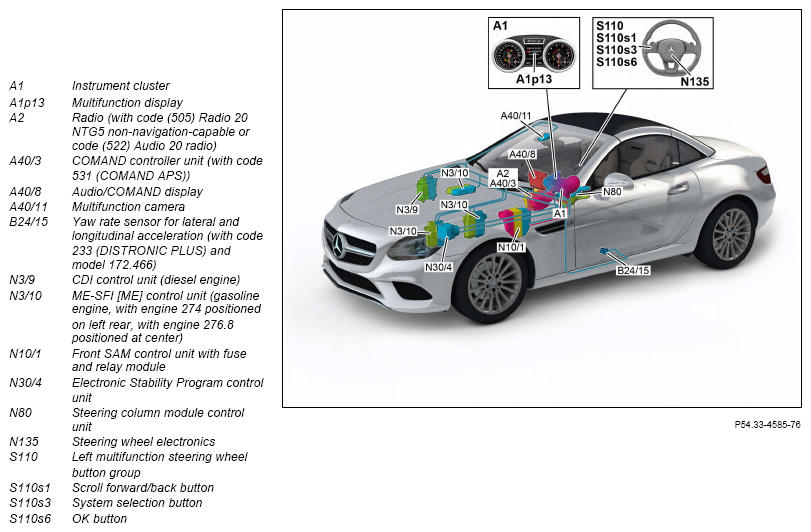

Lane Keeping Assist (with CODE 476 (Lane Keeping Assist))

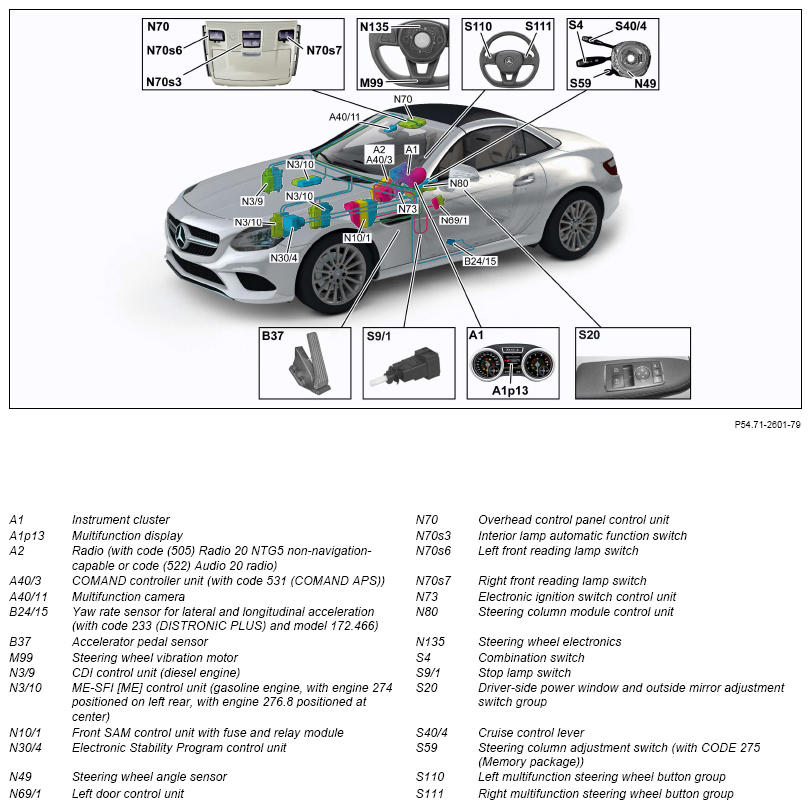

Traffic Sign Assist (with CODE 513 (Traffic Sign Assist))
| Component description for instrument cluster | A1 | GF54.30-P-6000RD | |
| Component description for the radio | Model 172.4 as of model year 2017 with code 505 (Radio 20 NTG5, not navigation-enabled) Model 172.4 as of model year 2017 with code 522 (Audio 20 radio) A2 | GF82.60-P-3122RDM | |
| Component description for COMMAND controller unit | Model 172.4 as of model year 2017 with code 531 (COMMAND APS) A40/3 | GF82.85-P-3136RDM | |
| Component description for Audio/COMMAND display | A40/8 | GF54.30-P-6150RD | |
| Component description for multifunction camera | Model 172.4 as of model year 2017 with code 476 (Lane keeping assist) Model 172.4 as of model year 2017 with code 513 (Traffic Sign Assist) Model 172.4 as of model year 2017 with code 608 (Adaptive Highbeam Assist) Model 172.4 as of model year 2017 with code 628 (Adaptive Highbeam Assist Plus) A40/11 | GF54.21-P-3300RD | |
| Component description for DISTRONIC electric controller unit | Model 172.4 as of model year 2017 with code 239 (DISTRONIC PLUS) A89 | GF30.30-P-3213RDA | |
| COLLISION PREVENTION ASSIST controller unit, component description | Model 172.4 as of model year 2017 with code 258 (COLLISION PREVENTION ASSIST) A90 | GF30.30-P-3214RDM | |
| Component description for yaw rate sensor for lateral and longitudinal acceleration | Model 172.4 as of model year 2017 with code 239 (DISTRONIC PLUS) B24/15 | GF42.45-P-4810RD | |
| Integrated radar sensor, component description | Model 172.4 as of model year 2017 with code 234 (Blind Spot Monitoring) B92/6, B92/11 | GF30.30-P-3313RDM | |
| Component description for CDI control unit | Model 172.4 with engine 651.9 as of model year 2017 N3/9 | GF07.16-P-6000OLK | |
| Component description for ME-SFI (ME) control unit | Model 172.4 with engine 276.8 as of model year 2017 N3/10 | GF07.61-P-6000MNC | |
| Model 172.4 with engine 274.9 as of model year 2017 N3/10 | GF07.61-P-6000MRE | ||
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070RD | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119RDA | |
| Left door control unit, component description | N69/1 | GF72.29-P-4143RD | |
| Right door control unit, component description | N69/2 | GF72.29-P-4144RD | |
| Component description for overhead control panel control unit | N70 | GF82.20-P-5216RD | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001RD | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051RD | |
| Electric parking brake control unit, component description | N128 | GF42.20-P-5005RDA | |
| Component description for fully integrated transmission control unit | Model 172 with transmission 722.9 as of model year 2017 Y3/8n4 | GF27.60-P-5165AHN | |
| Model 172 with transmission 725.0 as of model year 2017 Y3/8n4 | GF27.60-P-5165ANH | ||
| Table of contents for function description of driver assistance systems | GF54.00-P-0998RDM |
