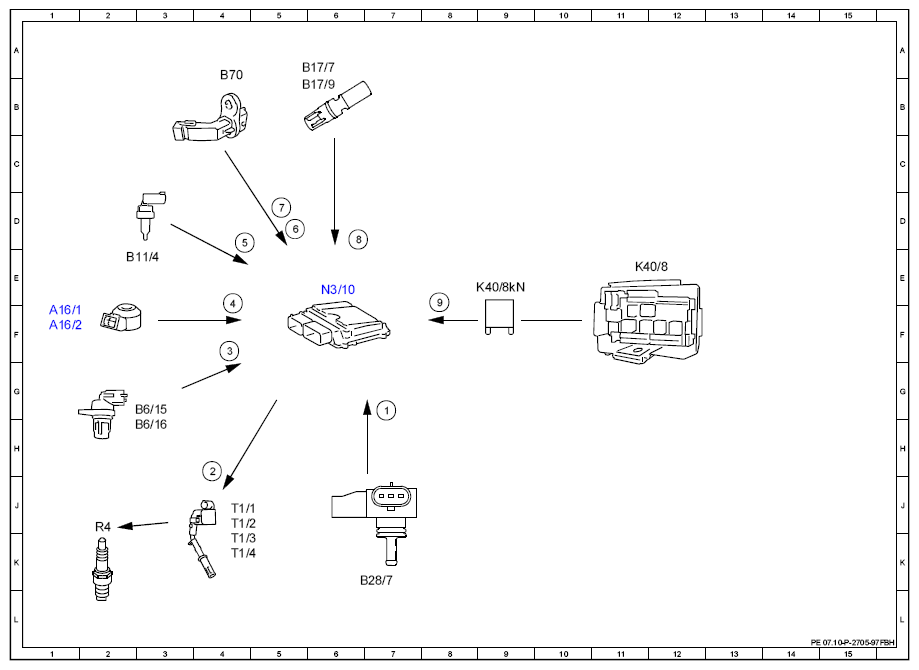

Electrical Function Schematic For Ignition System - PE07.10-P-2705-97FBH
Engine 274.9 in model 205.047/053/054/147/247/253
Engine 274.9 in model 253.353/953
Engine 274.9 in model 253.354/954
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine load, signal | 7G |
| 2 | Ignition coils, actuation | 4H |
| 3 | Camshaft Hall sensor, signal | 4F |
| 4 | Knock sensor, signal | 4F |
| 5 | Coolant temperature sensor, signal | 4D |
| 6 | Engine speed, signal | 5D |
| 7 | Crankshaft Hall sensor, signal | 5D |
| 8 | Charge air temperature sensor, signal | 6D |
| 9 | Circuit 87, status | 8F |
| A16/1 | Knock sensor 1 | 1F |
| A16/2 | Knock sensor 2 | 1F |
| B11/4 | Coolant temperature sensor | 2E |
| B17/7 | Charge air temperature sensor upstream of throttle valve | 6A |
| B17/9 | Charge air temperature sensor downstream of throttle valve | 6B |
| B28/7 | Pressure sensor downstream of throttle valve | 7K |
| B6/15 | Intake camshaft Hall sensor | 2G |
| B6/16 | Exhaust camshaft Hall sensor | 2H |
| B70 | Crankshaft Hall sensor | 4B |
| K40/8 | Engine fuse and relay module | 11E |
| K40/8kN | Circuit 87M relay | 9E |
| N3/10 | ME-SFI [ME] control unit | 6E |
| R4 | Spark plugs | 2J |
| T1/1 | Cylinder 1 ignition coil | 4J |
| T1/2 | Cylinder 2 ignition coil | 4J |
| T1/3 | Cylinder 3 ignition coil | 4K |
| T1/4 | Cylinder 4 ignition coil | 4K |
