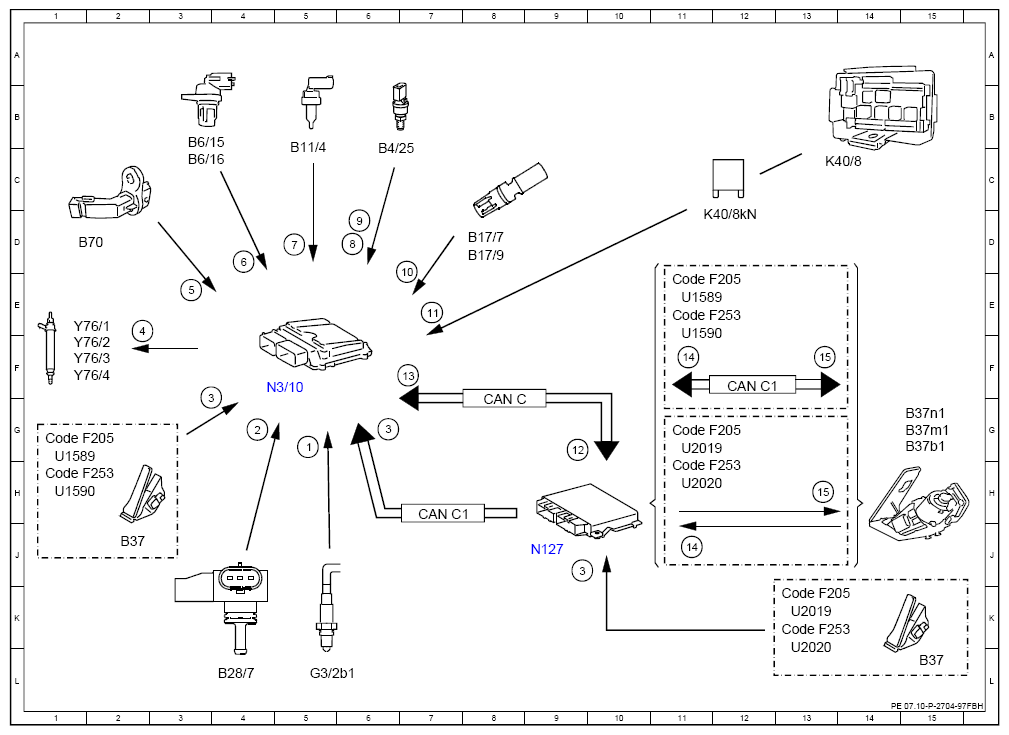

Electrical Function Diagram For Injection Control - PE07.10-P-2704-97FBH
Engine 274.9 in model 205.047/053/054/147/247/253
Engine 274.9 in model 253.353/953
Engine 274.9 in model 253.354/954
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Oxygen sensor sensor element, signal | 5G |
| 10 | Charge air temperature sensor, signal | 7E |
| 11 | Circuit 87, status | 7E |
| 12 | Engine running, signal | 9G |
| 13 | Powertrain control unit, status | 7F |
| 14 | Accelerator pedal module control unit, status | 11F |
| 14 | Accelerator pedal module control unit, status | 11J |
| 15 | Powertrain control unit, request | 13F |
| 15 | Powertrain control unit, request | 13H |
| 2 | Engine load, signal | 4G |
| 3 | Accelerator pedal sensor, signal | 3G |
| 3 | Accelerator pedal sensor, signal | 6G |
| 3 | Accelerator pedal sensor, signal | 9J |
| 4 | Fuel injectors, actuation | 2E |
| 5 | Engine speed, signal | 3E |
| 6 | Camshaft Hall sensor, signal | 4D |
| 7 | Coolant temperature sensor, signal | 5D |
| 8 | Fuel pressure, signal | 6D |
| 9 | Fuel temperature, signal | 6D |
| B11/4 | Coolant temperature sensor | 5C |
| B17/7 | Charge air temperature sensor upstream of throttle valve | 8D |
| B17/9 | Charge air temperature sensor downstream of throttle valve | 8D |
| B28/7 | Pressure sensor downstream of throttle valve | 4L |
| B37 | Accelerator pedal sensor | 2J |
| B37 | Accelerator pedal sensor | 15L |
| B37b1 | Accelerator pedal module sensor | 15G |
| B37m1 | Accelerator pedal module actuator motor | 15G |
| B37n1 | Accelerator pedal module control unit | 15G |
| B4/25 | Fuel pressure and temperature sensor | 6C |
| B6/15 | Intake camshaft Hall sensor | 3B |
| B6/16 | Exhaust camshaft Hall sensor | 3C |
| B70 | Crankshaft Hall sensor | 1D |
| CAN C | Engine CAN | 8G |
| CAN C1 | Drive train CAN | 7H |
| CAN C1 | Drive train CAN | 12F |
| Code F205 | MODEL SERIES 205 | 1G |
| Code F205 | MODEL SERIES 205 | 13K |
| Code F205 | MODEL SERIES 205 | 11E |
| Code F205 | MODEL SERIES 205 | 11G |
| Code F253 | MODEL SERIES 253 | 1H |
| Code F253 | MODEL SERIES 253 | 13K |
| Code F253 | MODEL SERIES 253 | 11E |
| Code F253 | MODEL SERIES 253 | 11H |
| G3/2b1 | Sensor element of oxygen sensor upstream of catalytic converter | 5L |
| K40/8 | Engine fuse and relay module | 13C |
| K40/8kN | Circuit 87M relay | 12D |
| N127 | Drivetrain control unit | 9J |
| N3/10 | ME-SFI [ME] control unit | 5F |
| U1589 | Valid up to model year 2019 | 1G |
| U1589 | Valid up to model year 2019 | 11E |
| U1590 | Valid up to model year 2020 | 1H |
| U1590 | Valid up to model year 2020 | 11F |
| U2019 | Valid as of model year 2019 | 13K |
| U2019 | Valid as of model year 2019 | 11G |
| U2020 | Valid as of model year 2020 | 13L |
| U2020 | Valid as of model year 2020 | 11H |
| Y76/1 | Cylinder 1 fuel injector | 1E |
| Y76/2 | Cylinder 2 fuel injector | 1F |
| Y76/3 | Cylinder 3 fuel injector | 1F |
| Y76/4 | Cylinder 4 fuel injector | 1F |
