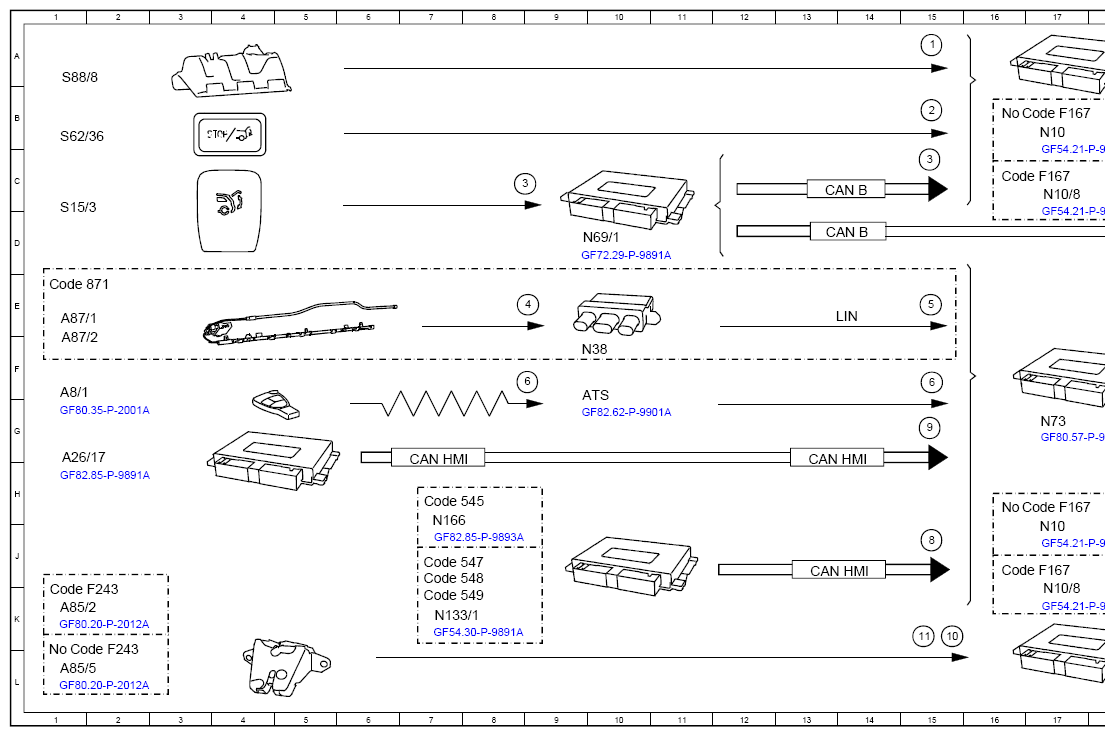

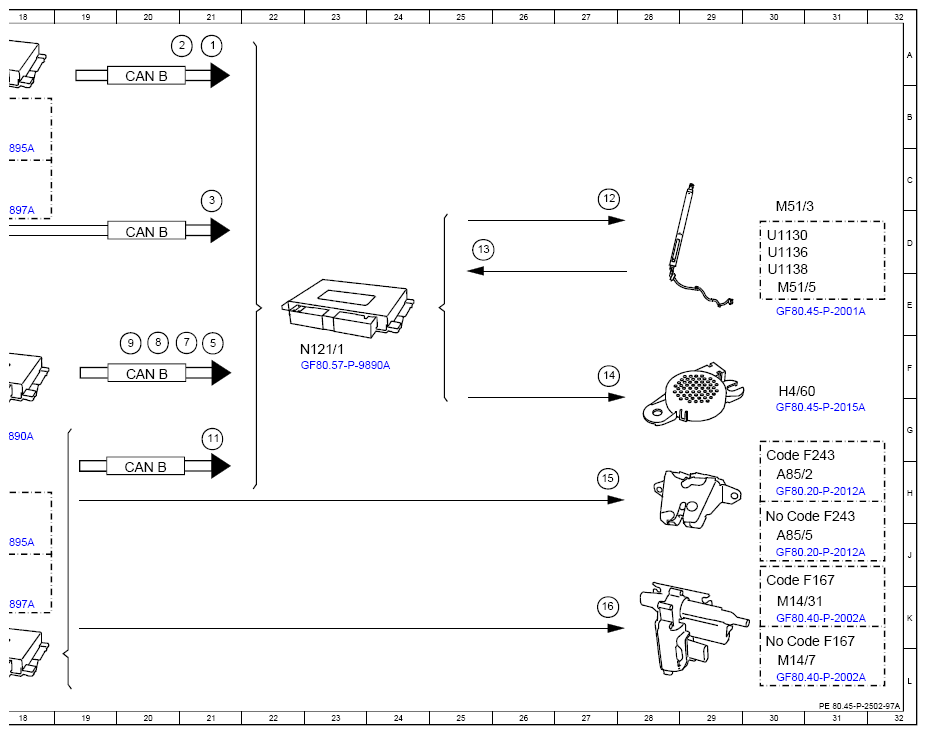

Function Schematic For Liftgate Control - PE80.45-P-2502-97A
Model 118.6, 167, 243, 247 with code 890 (Automatic rear-end door)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | External operation microswitch, status | 15A |
| 1 | External operation microswitch, status | 21A |
| 10 | Trunk lid/liftgate lock safety catch switch, status | 15K |
| 11 | Trunk lid/liftgate lock main catch switch, status | 21G |
| 11 | Trunk lid/liftgate lock main catch switch, status | 15K |
| 12 | Trunk lid/liftgate control drive unit, actuation | 27C |
| 13 | Hall sensors, signal | 25D |
| 14 | Warning buzzer, actuation | 27F |
| 15 | Trunk lid/liftgate lock motor, actuation | 27H |
| 16 | Trunk lid/liftgate lock element, actuation | 27K |
| 2 | Tailgate control button, status | 15B |
| 2 | Tailgate control button, status | 21A |
| 3 | Driver-side trunk lid/1iftgate control button, status | 9C |
| 3 | Driver-side trunk lid/liftgate control button, status | 15B |
| 3 | Driver-side trunk lid/1iftgate control button, status | 21C |
| 4 | Rear switching module sensor, signal | 9E |
| 5 | Open trunk lid/liftgate, request | 15E |
| 5 | Open trunk lid/liftgate, request | 21E |
| 6 | Access authorization code, signal | 9F |
| 6 | Access authorization code, signal | 15F |
| 7 | Circuit 15, status | 21E |
| 8 | Displayed vehicle speed, signal | 15H |
| 8 | Displayed vehicle speed, signal | 20E |
| 9 | Opening angle limiter, request | 20E |
| 9 | Opening angle limiter, request | 15G |
| A26/17 | Head unit | 1G |
| A8/1 | Transmitter key | 1F |
| A85/2 | Liftgate latch | 1K |
| A85/2 | Liftgate latch | 30H |
| A85/5 | Trunk lid/liftgate lock | 1L |
| A85/5 | Trunk lid/liftgate lock | 30J |
| A87/1 | Rear switching module upper sensor | 1E |
| A87/2 | Rear switching module lower sensor | 1F |
| ATS | Antenna system | 10G |
| CAN B | Interior CAN | 13C |
| CAN B | Interior CAN | 20D |
| CAN B | Interior CAN | 20A |
| CAN B | Interior CAN | 20F |
| CAN B | Interior CAN | 20H |
| CAN B | Interior CAN | 14D |
| CAN HMI | User interface CAN | 13J |
| CAN HMI | User interface CAN | 7H |
| CAN HMI | User interface CAN | 13H |
| Code 545 | Connect 5 (NTG6) | 7H |
| Code 547 | Connect 20 Entry (NTG6) | 7J |
| Code 548 | Connect 20 MID (NTG6) | 7J |
| Code 549 | Connect 20 HIGH (NTG6) | 7K |
| Code 871 | HANDS-FREE ACCESS | 1E |
| Code F167 | Model series 167 | 16J |
| Code F167 | Model series 167 | 16H |
| Code F167 | Model series 167 | 16C |
| Code F167 | Model series 167 | 16B |
| Code F167 | Model series 167 | 30J |
| Code F167 | Model series 167 | 30K |
| Code F243 | MODEL SERIES 243 | 1K |
| Code F243 | MODEL SERIES 243 | 1L |
| Code F243 | MODEL SERIES 243 | 30G |
| Code F243 | MODEL SERIES 243 | 30H |
| H4/6C | Trunk lid/liftgate control warning buzzer | 30F |
| LIN | Local Interconnect Network | 14E |
| M14/31 | Trunk lid/liftgate locking element | 30K |
| M14/7 | Trunk lid/liftgate central locking motor | 30L |
| M51/3 | Trunk lid/liftgate control drive unit | 30D |
| M51/5 | Left trunk lid/liftgate control drive unit | 30E |
| N10 | Signal acquisition and actuation module | 17J |
| N10 | Signal acquisition and actuation module | 17B |
| N10/8 | Rear SAM control unit | 17K |
| N10/8 | Rear SAM control unit | 17C |
| N121/1 | Trunk lid/liftgate control control unit | 23F |
| N133/1 | Instrument cluster control unit | 7K |
| N166 | Head unit/instrument cluster control unit | 7J |
| N38 | Rear switching module | 10F |
| N69/1 | Driver door control unit | 10D |
| N73 | Electronic ignition switch control unit | 17G |
| S15/3 | Driver trunk lid/liftgate control button | 1D |
| S62/36 | Trunk lid/liftgate control button | 1B |
| S88/8 | Trunk lid/liftgate external operation button | 1A |
| U1130 | Valid for model 247 | 30D |
| U1136 | Valid for model 118 | 30D |
| U1138 | Valid for model 167.9 | 30E |
