Control Unit For Trunk Lid/Liftgate Control, Detailed Information - GF80.45-P-0002B

Model 247

with code 890 (Automatic rear-end door)

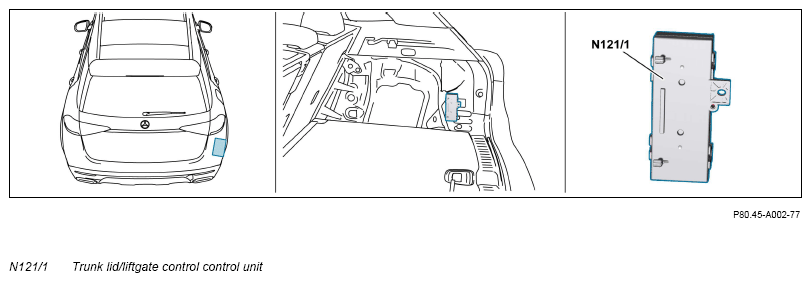

Fig 1: Control Unit For Trunk Lid/Liftgate Control Components Location - Model 247 With Code 890
G14690521Courtesy of MERCEDES-BENZ USA

Location

The control unit for the trunk lid/liftgate control is located to the bottom rear right in the area of the vent flap behind the trunk side trim.
