Dual Clutch Oil Pressure Sensor, Basic Function - GF25.19-P-2000A
Transmission 700.420/421/422/423, 724.033/044/045/103/114/115/120

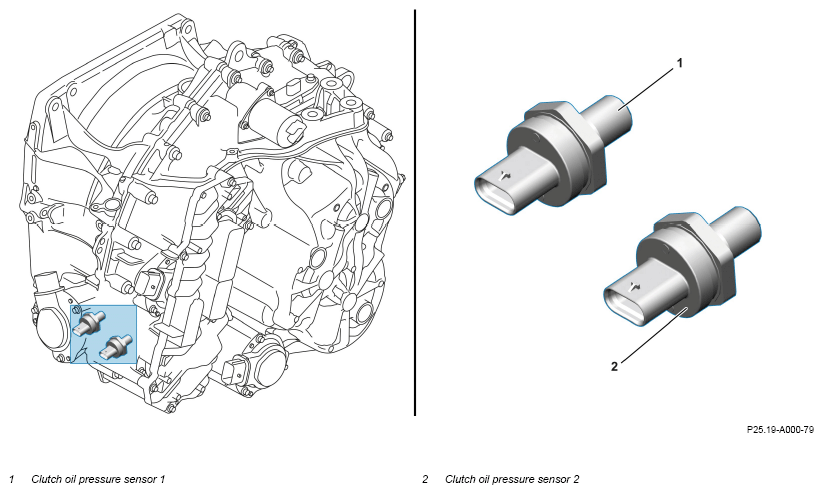

Example illustration of oil pressure sensors
Overview
This document contains information on:
- General
- Function
General
The clutch oil pressure sensors (1, 2) detect the oil pressure of the inner and outer clutch of the dual-clutch transmission. They are located in the lower area on the front side of the dual-clutch transmission.
Function
The hydraulic pressure of the transmission oil is applied to a diaphragm. The mechanical tension in the diaphragm is measured and output as an analog output signal. The oil pressure recorded for the respective clutch is continuously forwarded to the dual-clutch transmission control unit and it serves as a basis for calculation of the clutch actuator's pump speed.
