(Electric Machine, Basic Function - GF08.10-P-2000A)

Electric vehicles and hybrid vehicles

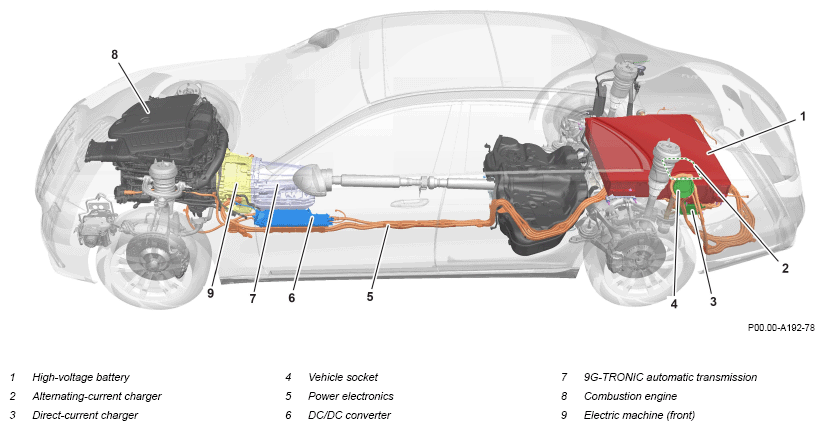

G16140809Courtesy of MERCEDES-BENZ USA

Example illustration: hybrid vehicle drive components

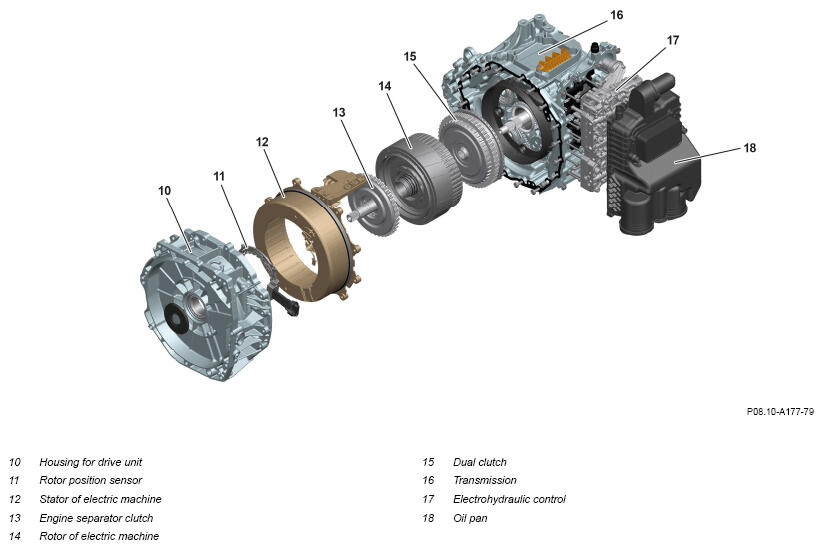

G16140810Courtesy of MERCEDES-BENZ USA

Example illustration: electric machine with gearing

Overview

This document contains information on:

General

During engine operation, the electric machine (9) converts the electrical energy into mechanical energy, and thus provides a drive torque. In generator mode, the electric machine (9) converts mechanical energy into electrical energy (recuperation).

Function

The electric machine (9) draws the energy required during engine operation via the high-voltage on-board electrical system from a high-voltage battery (1). The power electronics control unit with integrated power inverter converts the direct voltage from the high-voltage battery (1) into 3-phase alternating voltage to supply the electric machine (9) with power.

The electric machine (9) can be operated as a motor for the drive or as an alternator for recuperation. The rotational speed of the electric machine (9) is recorded by sensors on the electric machine (9).

The changeover between the operating modes engine/alternator operation is controlled by the power electronics control unit. To do this, the three phase currents of the electric machine (9) are regulated depending on the operating mode and the rotor position. These phase currents generate a magnetic rotary field that generates a mechanical torque together with the rotor field.

In engine mode, this leads to a torque that acts directly on the drive and thus powers the vehicle. In generator mode, the electric machine (9) generates a braking torque.

During recuperative braking, electrical energy is generated from mechanical energy. The power supply/recuperation of the energy is implemented via the power inverter integrated in the power electronics control unit.

In the case of vehicles with an electric drive, two different electric machine types are used:

Asynchronous motors

The rotor of the electric machine (14) does not rotate at the same time as the electric rotary field in the stator of the electric machine (12), but asynchronously.

The asynchronous motor, as an electric motor, runs more slowly than the rotary field of the stator of the electric machine (12), but the asynchronous motor, as an alternator, runs more quickly.

In the operating range, the torque is proportional to the deviation of the speed; this is known as "slip".

The stator of the electric machine (12) consists of three coils or a multiple thereof. These are subjected to a three-phase current, which generates a magnetic rotary field.

The rotor of the electric machine (14) that rotates in the stator of the electric machine (12) is designed as a squirrel cage rotor or cage rotor. The rotor conductor rods of the electric machine (14) are shorted with each other at the ends in a ring-shaped arrangement. There is no electrical contact with the outside via brushes.

The rotor of the electric machine (14) is connected directly to the power output shaft via a transmission (16). The electrical connection is made via the power electronics control unit.

Permanently excited synchronous motors

The rotor of the electric machine (14) is made of permanent magnets and rotates synchronously with the rotary field in the stator of the electric machine (12).

In contrast to the asynchronous motor, the rotor of the electric machine (14) is not energized even during operation and therefore generates less heat.

As with the asynchronous motor, the rotor of the electric machine (14) is connected to the power output shaft via a transmission with a permanent transmission ratio (16) without a mechanical separating point. The electrical connection is made via the power electronics control unit.

Electric vehicles

A vehicle can contain one or two electric machines (9). Each of these can be designed as an asynchronous motor with a cage rotor or as a permanently excited synchronous motor.

Hybrid vehicles

The electric machine (9) is designed as a permanently excited synchronous motor. Depending on the model, the electric machine (9) may be located in the drivetrain as follows:

The rotor of the electric machine (14) is positively connected to the engine separator clutch (13) via the rotor carrier.

The design of the electric machine (9) as a wet runner allows for optimum dissipation of rotor and stator heat loss.

In generator mode, the electric machine (9) generates braking torque that decelerates the vehicle or places a load on the combustion engine (8).

Depending on the model, the transmission of the torque from the electric machine (9) depends on the position of the engine separator clutch (13).

  Additional basic functions
  Rear axle electric drive unit, basic function Model all with engine 177
with code ME10 (Hybrid vehicle (plug-in, PHEV))
GF08.10-P-4000A
  Electric machine rotor position sensor, basic function Hybrid vehicles and electric vehicles with a synchronous machine GF08.40-P-2002A
  Electric machine temperature sensor, basic function   GF08.40-P-2003A
  Electric machine rotational speed sensor, basic function Electric vehicles with an asynchronous motor GF08.40-P-2004A
  Detailed information
  Electric machine, detailed information Model 293
with code ME01 (Electric motor)
GF08.10-P-2500A
    Model 167
up to model year 2023
with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in))
Model 213
as of model year 2021
with code ME05 (Hybrid drive 85 kW-94 kW
GF08.10-P-2500B
    variant (incl. plug-in))
Model 213
as of model year 2021
with code ME08 (Hybrid drive 75-84 kW VARIANT (INCLUDING PLUGIN))
Model 243
GF08.10-P-2500C
    Model 296 GF08.10-P-2500D
  Component descriptions
  Electrical machine, component description Model 223 GF08.10-P-2001A
    Model 243 GF08.10-P-2001B
    Model 206 GF08.10-P-2001C
    Model 297 GF08.10-P-2001D
    Model 295 GF08.10-P-2001E
    Model 232 GF08.10-P-2001F
    Model 296 GF08.10-P-2001G
    Model 254 GF08.10-P-2001H
    Model 214 GF08.10-P-2001K
    Model 118
as of model year 2023
Model 177, 247
as of model year 2022
GF08.10-P-2001L
    Model 167
as of model year 2023
GF08.10-P-2001M
    Model 294 GF08.10-P-2001N
    Model 192 GF08.10-P-2001R
