Remove/Install Coolant Temperature Sensor - AR07.04-P-1625MFG
Engine 139 in model 118, 177, 247
MODIFICATION NOTES
| 12.01.2023 | SPK modified. | Picture/legend module, operation step 3. |
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on coolant | AH20.00-P-2080-01KOA | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Notes on coolant level | AH20.00-P-1142-01CW | ||
| Remove/install | |||
| 1 | Remove the alternator (G2). | AR15.40-P-5032MFG | |

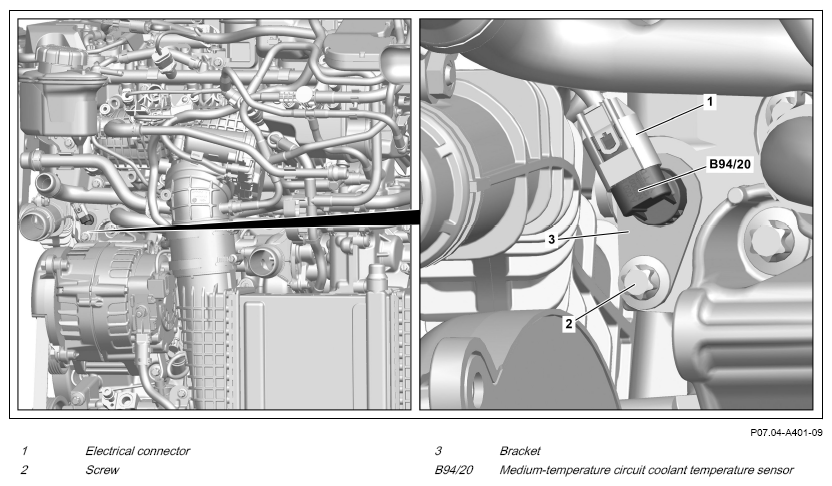

| 2 | Remove screw (2). | *BA07.04-P-1006-01R | |
| 3 | Remove medium-temperature circuit coolant temperature sensor (B94/20) with bracket (3). | ||
| 4 | Release electrical connector (1) and disconnect. | ||
| 5 | Install in the reverse order. |
SENSORS, TRANSMITTERS
| Number | Designation | Engine 139 | |
|---|---|---|---|
| BA07.04-P-1006-01R | Bolt, MT temperature sensor to crankcase | Nm | 8 |
