Remove/Install Intake Camshaft Position Sensor - AR07.04-P-0056MFG
Engine 139 in model 118, 177, 247
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove upper engine cover. | ||
| AP01.10-P-2405-01K | |||

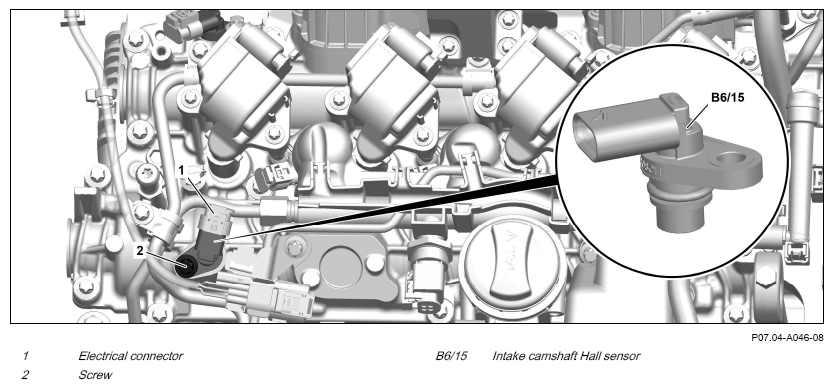

| 2 | Release and disconnect electrical connector (1) at intake camshaft Hall sensor (B6/15) | ||
| 3 | Remove screw/bolt (2). | *BA15.10-P-1002-03I | |
| 4 | Remove intake camshaft Hall sensor (B6/15) and seal exposed opening with suitable stop plug. | Fig 2 | |
| 5 | Check sealing ring for damage. | If this is damaged, ↓ replace intake camshaft Hall sensor (B6/15). |
|
| 6 | Clean contact surfaces at engine and/or intake camshaft Hall sensor (B6/15). | Do not use any sharp-edged tools or abrasive paper. Contact surfaces will otherwise be damaged. |
|
| Cleaner | *BR00.45-Z-1025-04A | ||
| 7 | Install in the reverse order. | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 8 | Carry out engine test run and check engine for proper leak tightness and leak tightness. | ||
| 9 | Install upper engine cover. | ||
| AP01.10-P-2405-01K | |||
| Check | |||
| 10 | Read out and delete fault memory using vehicle diagnosis system. | ||
| AD00.00-P-2000-06MFA |
POSITION SENSOR
| Number | Designation | Engine 139 | |
|---|---|---|---|
| BA15.10-P-1002-03I | Screw/bolt, camshaft position sensor to cylinder head cover | Nm | 8 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1025-04A | Cleaner | A 005 989 19 71 |
