Remove/Install Engine Oil Directional Control Valve - AR18.10-P-0002MFG
Engine 139 in model 118, 177, 247
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Remove charge air cooler. | AR09.41-P-0105MFG | |

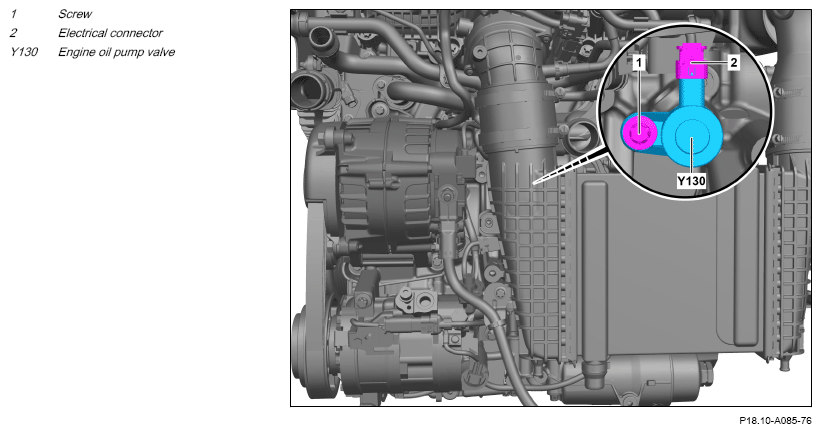

| 2 | Release and disconnect the electrical connector (2). | ||
| 3 | Remove screw (1). | *BA18.10-P-1005-01ZA | |
| 4 | Remove engine oil pump valve (Y130) from crankcase and capture escaping engine oil with absorbent rags. | Pull engine oil pump valve (Y130) straight out of the crankcase. Otherwise damage will occur. |
|
| 5 | Seal opening on the crankcase with a suitable stop plug. | Fig 2 | |
| 6 | Check sealing ring on engine oil pump valve (Y130) for damage. | If there are problems, ↓ Replace the engine oil pump valve (Y130). |
|
| 7 | Install in the reverse order. | ||
| 8 | Check engine oil level with instrument cluster and correct if necessary. | ||
| AP18.00-P-1812AKI |
OIL PUMP
| Number | Designation | Engine 139 | ||
|---|---|---|---|---|
| BA18.10-P-1005-01ZA | Bolt, directional control valve to crankcase | Stage 1 | Nm | 20 |
| Stage 2 | ∠° | 30 | ||
