Remove/Install Crankshaft Hall Sensor - AR15.12-P-2136MFG
Engine 139 in model 118, 177, 247

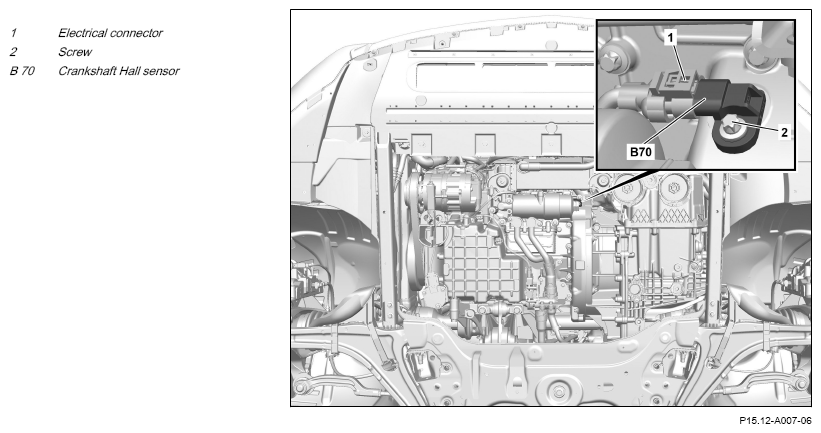

Shown on model 177
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove bottom engine compartment lining. | Remove/install lower engine compartment lining | AR61.20-P-1105MFR |
| 2 | Release electrical connector (1) and disconnect. | ||
| 3 | Remove screw/bolt (2). | *BA15.10-P-1001-03I | |
| 4 | Remove Hall sensor (B70). | ||
| 5 | Install in the reverse order. | ||
| 6 | Read out and delete fault memory. | ||
| AD00.00-P-2000-06MFA | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 7 | Perform an engine test run and check the engine for proper function. |
POSITION SENSOR
| Number | Designation | Engine 139 | |
|---|---|---|---|
| BA15.10-P-1001-03I | Bolt, position sensor for crankshaft to crankcase/oil pan | Nm | 8 |
