Overview Of System Components For Climate Control - GF83.40-P-9994GWM
Model 463 (except 463.342)
as of model year 2019

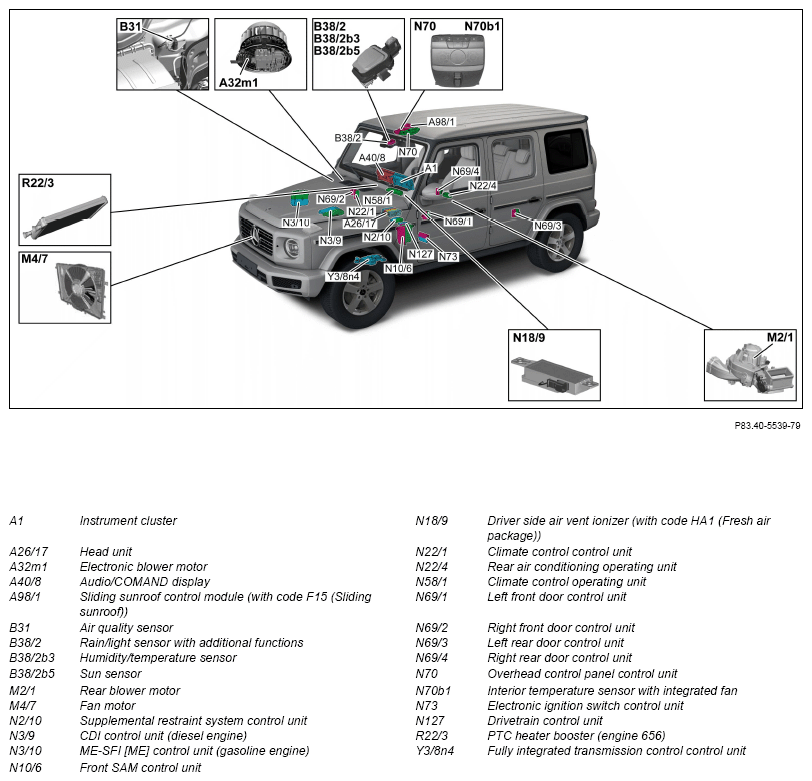

Networked component parts, shown on model 463.260

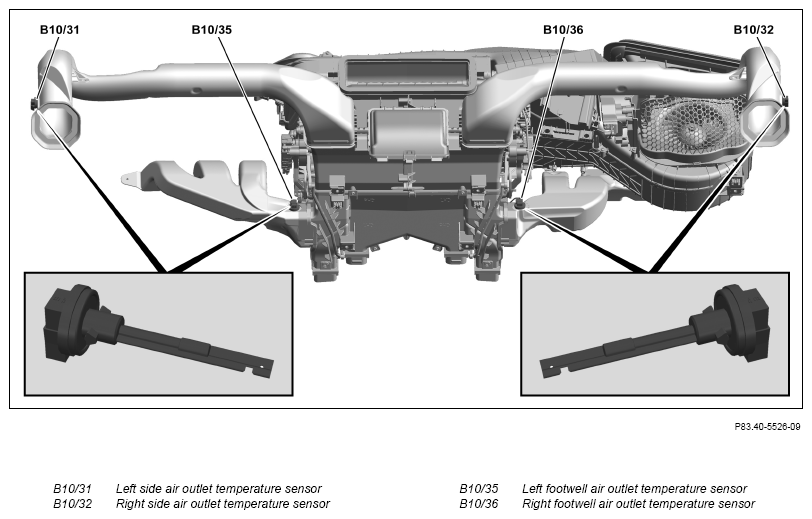

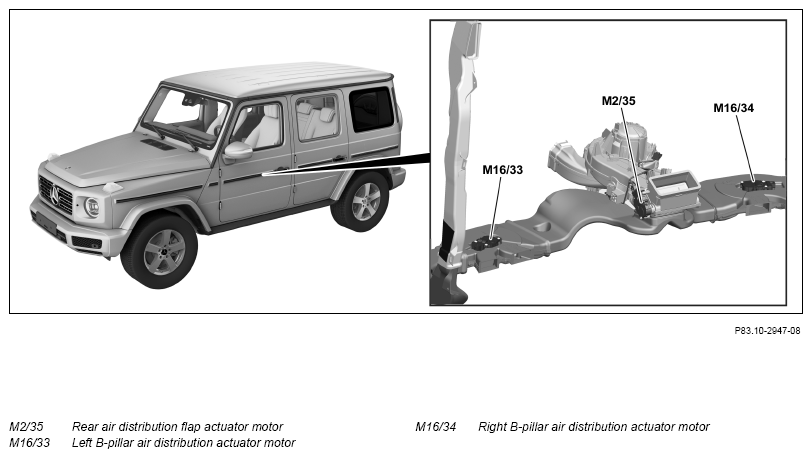

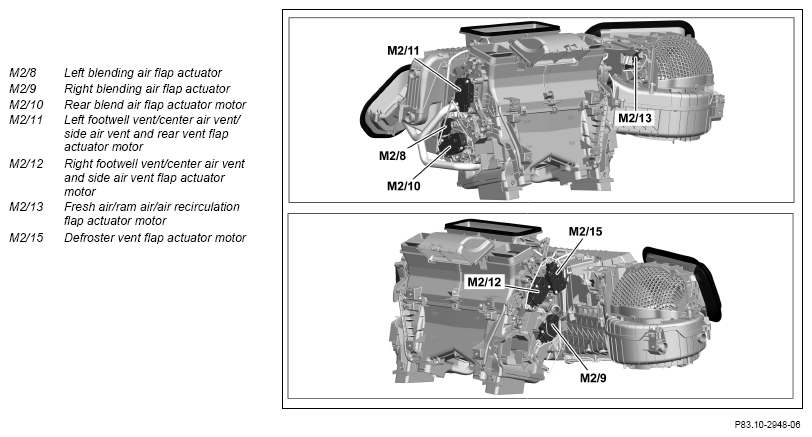

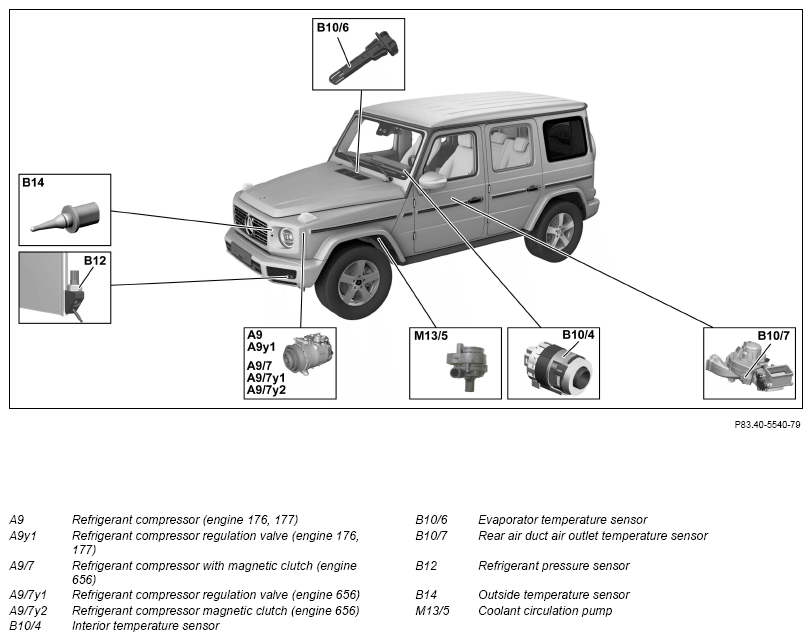

Non-networked component parts, shown on model 463.260
Shown with code H12 (Stationary heater)
Show on model 463.260

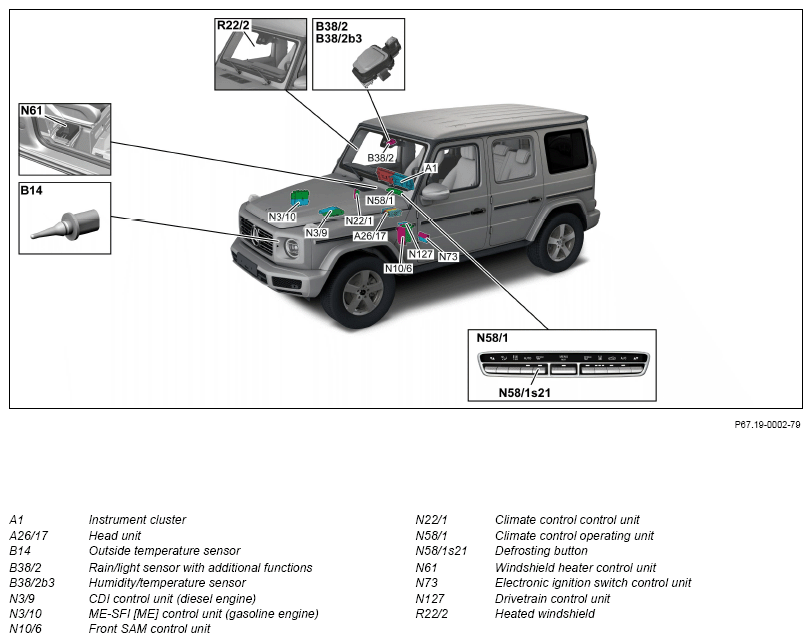

Heated windshield (with code F49 (Windshield, heated)), shown on model 463.260

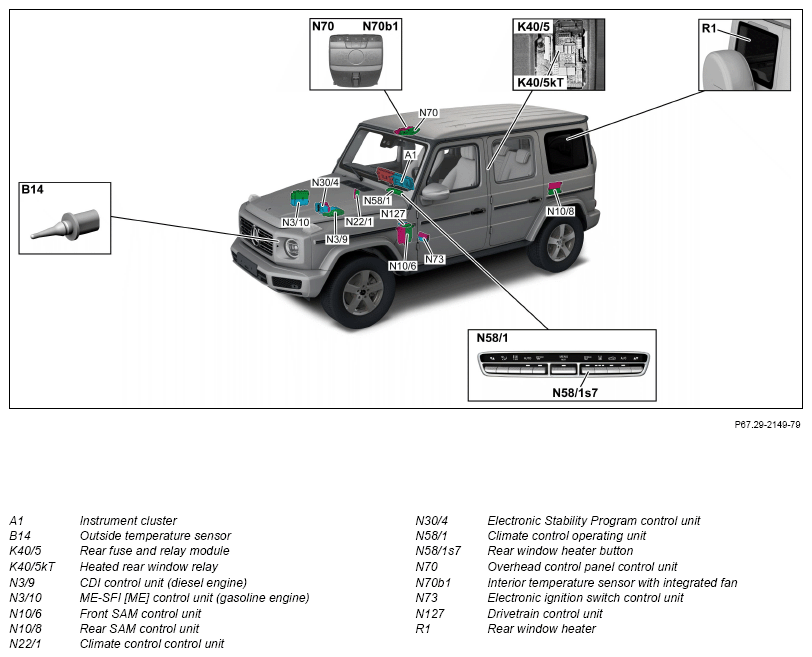

Rear window heater, shown on model 463.260
| Component description for instrument cluster | A1 | GF54.30-P-6000GW | |
| Head unit, component description | A26/17 | GF82.85-P-3140GW | |
| Component description for Audio/COMAND display | A40/8 | GF54.30-P-6150GWM | |
| Component description for sliding roof control module | Model 463 (except 463.342) as of model year 2019 with code F15 (Sliding sunroof) A98/1 |
GF77.20-P-4108GWM | |
| Rain/light sensor with additional functions, component description | B38/2 | GF54.21-P-6005GWM | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080GWM | |
| Component description for CDI control unit | Model 463 (except 463.342) with engine 656.9 as of model year 2019 N3/9 |
GF07.16-P-6000OIB | |
| Component description for ME-SFI (ME) control unit | Model 463 with engine 176.9, 177.9 as of model year 2019 N3/10 |
GF07.61-P-6000MNH | |
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010GWM | |
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030GWM | |
| Climate control, control unit, component description | N22/1 | GF83.40-P-2250GWM | |
| Rear climate control operating unit, component description | N22/4 | GF83.40-P-3050GWM | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119GWM | |

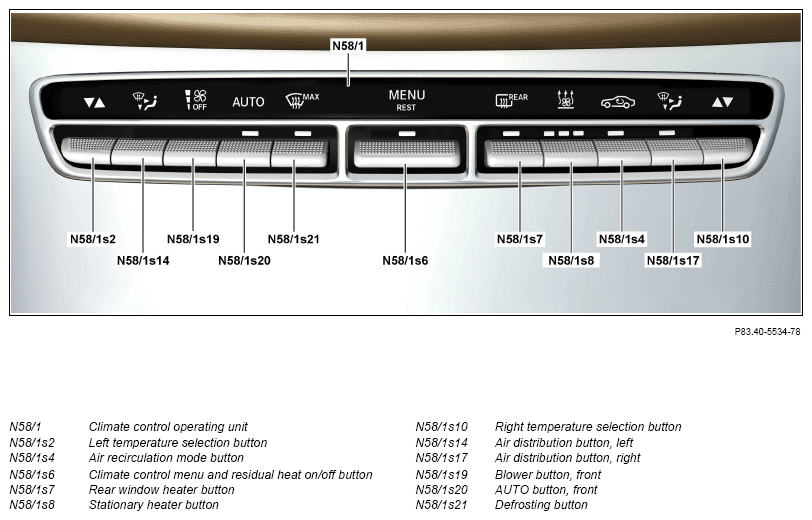

| Front climate control operating unit, component description | N58/1 | GF83.40-P-2260GWM | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001GW | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009GW | |
| Component description for rear door control unit | Model 463.23/24/27, 463.34 (except 463.342) as of model year 2019 Model 463.26 as of model year 2019 N69/3, N69/4 |
GF72.29-P-6021GW | |
| Component description for overhead control panel control unit | N70 | GF82.20-P-5216GW | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001GWM | |
| Drivetrain control unit, component description | Model 463 with engine 176.9, 177.9 as of model year 2019 N127 |
GF54.21-P-2141MNH | |
| Model 463 (except 463.342) with engine 656.9 as of model year 2019 N127 |
GF54.21-P-2141OIB | ||
| Table of contents for climate control function description | GF83.40-P-0994GWM |
