Overview Of System Components For Climate Control - GF83.40-P-9994GW
Model 463 (except 463.342)
as of model year 2013 up to model year 2019

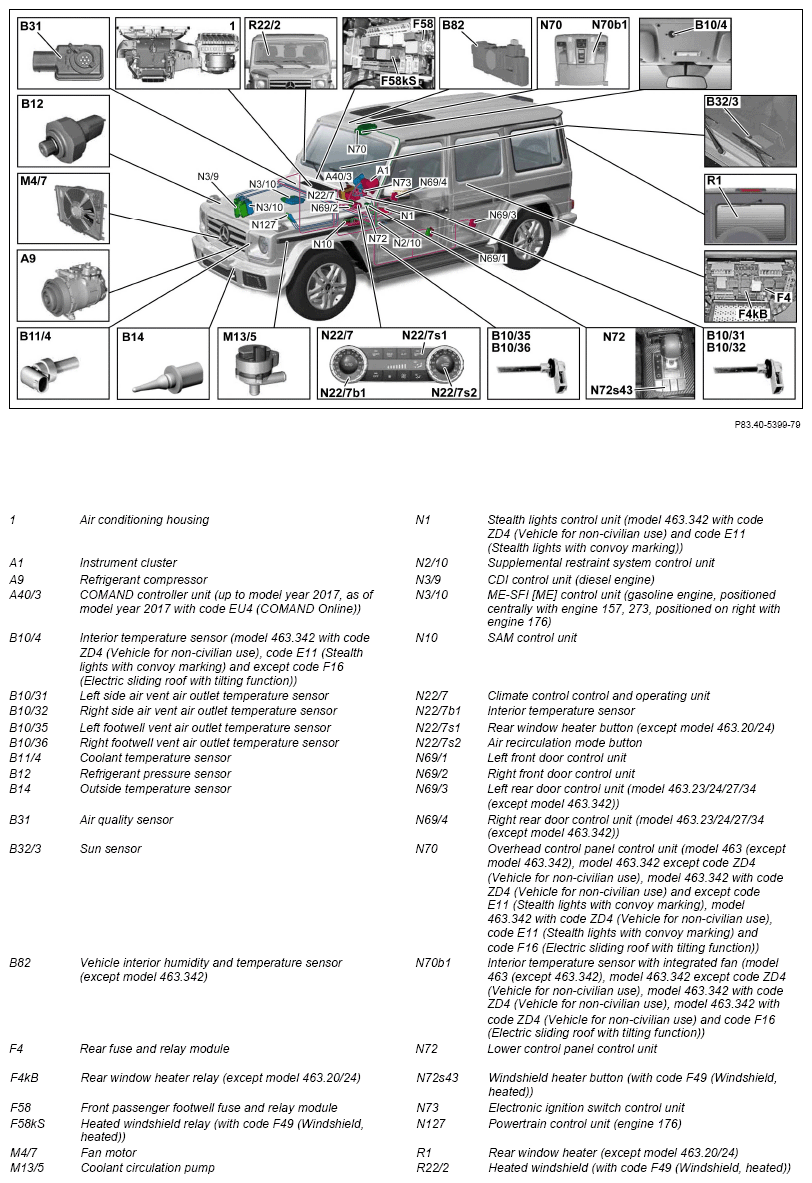

Model 463.342

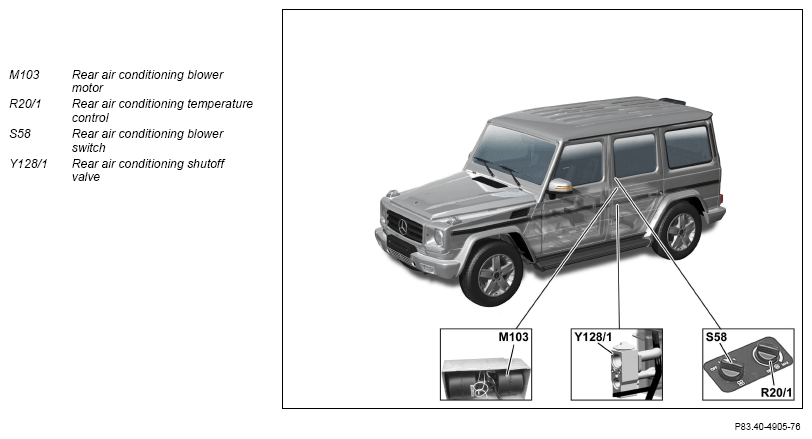

Shown on model 463.234

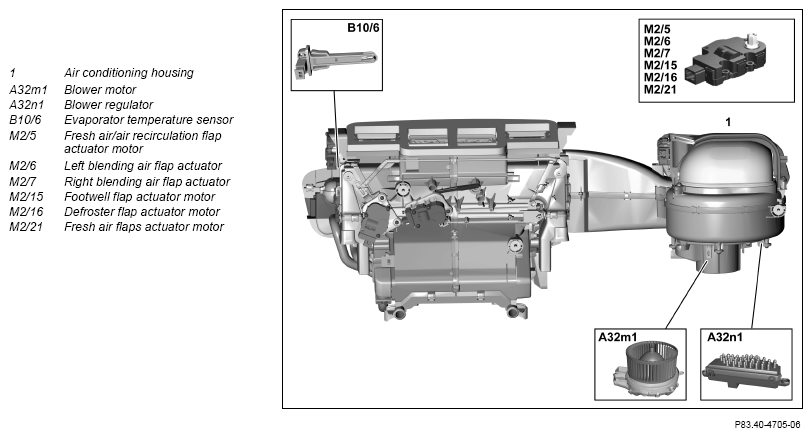

Shown on model 463.242
| Component description for instrument cluster | Model 463 as of model year 2013 up to model year 2019 A1 |
GF54.30-P-6000GW | |
| Component description for COMAND controller unit | Model 463 as of model year 2013 up to model year 2017 A40/3 |
GF82.85-P-3136GW | |
| Model 463 as of model year 2017 up to model year 2019 with code EU4 (COMAND Online) A40/3 |
GF82.85-P-3136GWA | ||
| Stealth lights control unit, component description | Model 463.342 as of model year 2017 with code E11 (Blackout lighting with convoy light) N1 |
GF82.10-P-2021GW | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080GW | |
| Component description for CDI control unit | Model 463 with engine 642.8 as of model year 2013 up to model year 2019 N3/9 |
GF07.16-P-6000OGT | |
| Component description for ME-SFI (ME) control unit | Model 463 with engine 157.9 as of model year 2013 up to model year 2019 N3/10 |
GF07.61-P-6000MMJ | |
| Model 463 with engine 176.9 as of model year 2016 up to model year 2019 N3/10 |
GF07.61-P-6000MNF | ||
| Model 463 with engine 273.9 as of model year 2013 up to model year 2019 N3/10 |
GF07.61-P-6000MLJ | ||
| SAM control unit, component description | N10 | GF54.21-P-4157GW | |
| Component description for climate control, control and operating unit | N22/7 | GF83.40-P-3002GW | |
| Component description for left front door control unit | Model 463 as of model year 2013 up to model year 2019 N69/1 |
GF72.29-P-6001GW | |
| Component description for right front door control unit | Model 463 as of model year 2013 up to model year 2019 N69/2 |
GF72.29-P-6009GW | |
| Component description for rear door control unit | Model 463.23/24/27, 463.34 (except 463.342) as of model year 2013 up to model year 2019 N69/3, N69/4 |
GF72.29-P-6021GW | |
| Component description for overhead control panel control unit | Model 463 (except 463.342) as of model year 2013 up to model year 2019 Model 463.342 as of model year 2017 up to model year 2019 except code ZD4 (Vehicle for non-civilian operations) Model 463.342 as of model year 2017 up to model year 2019 with code F16 (Tilting/sliding sunroof, electric) with code ZD4 (Vehicle for non-civilian operations) N70 |
GF82.20-P-5216GW | |
| Lower control panel control unit, component description | N72 | GF54.21-P-6060GW | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001GW | |
| Drivetrain control unit, component description | Model 463 with engine 176.9 as of model year 2016 up to model year 2019 N127 |
GF54.21-P-2141MNF | |
| Table of contents for climate control function description | GF83.40-P-0994GW |
