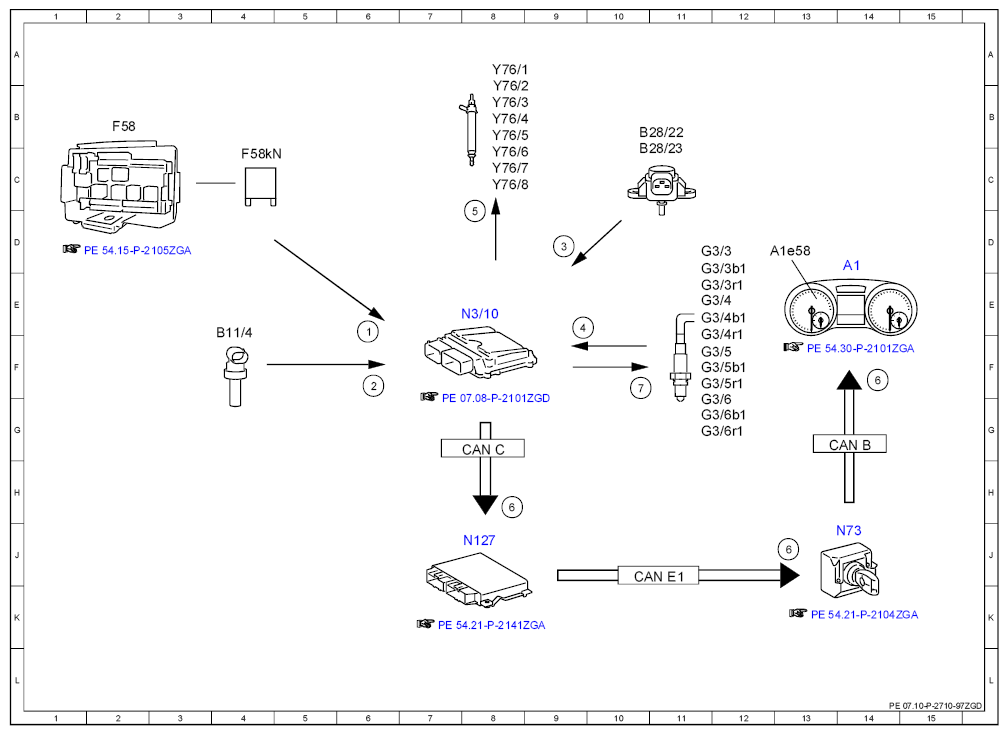

Electrical Function Schematic For Lambda Control - PE07.10-P-2710-97ZGD
Engine 176.9 in model 463 as of model year 2016 up to model year 2019
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 87, status | 6F |
| 2 | Coolant temperature sensor, signal | 6F |
| 3 | Pressure sensor downstream of throttle valve, signal | 9D |
| 4 | Oxygen sensor, signal | 9E |
| 5 | Fuel injectors, actuation | 8D |
| 6 | Instrument cluster message, request | 8H |
| 6 | Instrument cluster message, request | 13J |
| 6 | Instrument cluster message, request | 14F |
| 7 | Oxygen sensor heater, actuation | 10F |
| A1 | Instrument cluster | 14D |
| A1e58 | Engine diagnosis indicator lamp | 12D |
| B11/4 | Coolant temperature sensor | 4F |
| B28/22 | Left pressure sensor downstream of throttle valve | 11B |
| B28/23 | Right pressure sensor downstream of throttle valve | 11C |
| CAN B | Interior CAN | 14G |
| CAN C | Drivetrain CAN | 8G |
| CAN E1 | Chassis CAN 1 | 10J |
| F58 | Front passenger footwell fuse and relay module | 2B |
| F58kN | Circuit 87M relay | 4C |
| G3/3 | Left O2 sensor upstream of TWC [KAT] | 11D |
| G3/3b1 | Left oxygen sensor element upstream of catalytic converter | 11E |
| G3/3r1 | Left oxygen sensor heater upstream of catalytic converter | 11E |
| G3/4 | Right O2 sensor upstream of TWC [KAT] | 11E |
| G3/4b1 | Right oxygen sensor element upstream of catalytic converter | 11E |
| G3/4r1 | Right oxygen sensor heater upstream of catalytic converter | 11F |
| G3/5 | Left O2 sensor downstream of TWC [KAT] | 11F |
| G3/5b1 | Left oxygen sensor element downstream of catalytic converter | 11F |
| G3/5r1 | Left oxygen sensor heater downstream of catalytic converter | 11F |
| G3/6 | Right O2 sensor downstream of TWC [KAT] | 11G |
| G3/6b1 | Right oxygen sensor element downstream of catalytic converter | 11G |
| G3/6r1 | Right oxygen sensor heater downstream of catalytic converter | 11G |
| N127 | Drivetrain control unit | 8J |
| N3/10 | ME-SFI [ME] control unit | 8E |
| N73 | EIS [EZS] control unit | 14J |
| Y76/1 | Cylinder 1 fuel injector | 8A |
| Y76/2 | Cylinder 2 fuel injector | 8B |
| Y76/3 | Cylinder 3 fuel injector | 8B |
| Y76/4 | Cylinder 4 fuel injector | 8B |
| Y76/5 | Cylinder 5 fuel injector | 8B |
| Y76/6 | Cylinder 6 fuel injector | 8C |
| Y76/7 | Cylinder 7 fuel injector | 8C |
| Y76/8 | Cylinder 8 fuel injector | 8C |
