Electrical Function Schematic For Engine Management, ECO Start/Stop Function - PE07.10-P-2724-97ZGB

Engine 176.9 in model 463 as of model year 2016 up to model year 2019 with code MJ7 (ECO start/stop function)

Code: Designation: Position:
1 Circuit 87, status 9H
10 Engine hood contact switch, status 32E
10 Engine hood contact switch, status 25E
10 Engine hood contact switch, status 11D
11 ECO start/stop function button, status 11D
11 ECO start/stop function button, status 32E
11 ECO start/stop function button, status 26E
11 ECO start/stop function button, status 35C
12 Air conditioning, status 12D
12 Air conditioning, status 26E
12 Air conditioning, status 32F
13 Engine stop enable, status 22G
13 Engine stop enable, status 12D
14 Wheel speed, signal 22F
14 Wheel speed, signal 13D
15 Service brake, status 22G
15 Service brake, status 13D
16 Brake vacuum sensor, signal 13D
16 Brake vacuum sensor, signal 22G
17 Door rotary tumbler switch, status 27E
17 Door rotary tumbler switch, status 28G
17 Door rotary tumbler switch, status 14D
18 Fuel pressure, signal 10G
19 Fuel level, signal 11G
2 ECO start/stop function, status 28E
2 ECO start/stop function, status 20D
2 ECO start/stop function, status 30H
20 Steering wheel angle sensor, signal 19H
21 Steering wheel angle, signal 10F
22 Steering wheel velocity, signal 11F
23 Gear range, status 6D
24 Vehicle speed, signal 30G
24 Vehicle speed, signal 27E
24 Vehicle speed, signal 14D
25 Starter circuit 50 relay, actuation 7J
26 Starter, actuation 5K
27 Fuel pump, specified pressure request 15J
28 Fuel pump, actuation 13K
3 Coolant temperature sensor, signal 6G
4 Accelerator pedal sensor, signal 5F
5 Crankshaft Hall sensor, signal 6D
6 Crash, signal 24E
6 Crash, signal 30D
6 Crash, signal 9D
6 Crash, signal 10E
7 Seat belt buckle switch, status 24E
7 Seat belt buckle switch, status 30D
7 Seat belt buckle switch, status 11E
8 Engine stop prohibited, request 22F
8 Engine stop prohibited, request 31F
8 Engine stop prohibited, request 28G
8 Engine stop prohibited, request 31E
8 Engine stop prohibited, request 24E
8 Engine stop prohibited, request 10D
9 Engine start, request 22G
9 Engine start, request 11D
9 Engine start, request 32F
9 Engine start, request 32E
9 Engine start, request 25E
A1 Instrument cluster 29J
A8/1 Transmitter key 30F
B11/4 Coolant temperature sensor 2H
B37 Accelerator pedal sensor 2E
B70 Crankshaft Hall sensor 2B
CAN B Interior CAN 33E
CAN B Interior CAN 30H
CAN B Interior CAN 30D
CAN B Interior CAN 33F
CAN B Interior CAN 27F
CAN C Drivetrain CAN 7C
CAN C Drivetrain CAN 12G
CAN C Drivetrain CAN 15E
CAN C Drivetrain CAN 18E
CAN C1 Engine CAN 18E
CAN C1 Engine CAN 12E
CAN C1 Engine CAN 13F
CAN E1 Chassis CAN 1 27E
CAN E1 Chassis CAN 1 22H
F58 Front passenger footwell fuse and relay module 9J
F58kM Starter circuit 50 relay 7K
F58kN Circuit 87M relay 12H
LIN B15 Battery sensor LIN 36C
M1 Starter 4K
M3 Fuel pump (FP) 12K
N10 SAM control unit 35D
N118 Fuel pump control unit 15K
N127 Drivetrain control unit 22D
N2/10 Supplemental restraint system control unit 29A
N22/7 Climate control control and operating unit 34H
N3/10 ME-SFI [ME] control unit 7E
N30/4 ESP control unit 22J
N49 Steering angle sensor 20J
N69/1 Left front door control unit 25H
N72/1 Upper control panel control unit 38B
N72/1s50 ECO start/stop function button 39B
N73 EIS [EZS] control unit 30E
N80 Steering column module 17H
Y3/8n4 Fully integrated transmission control (VGS) control unit 7A

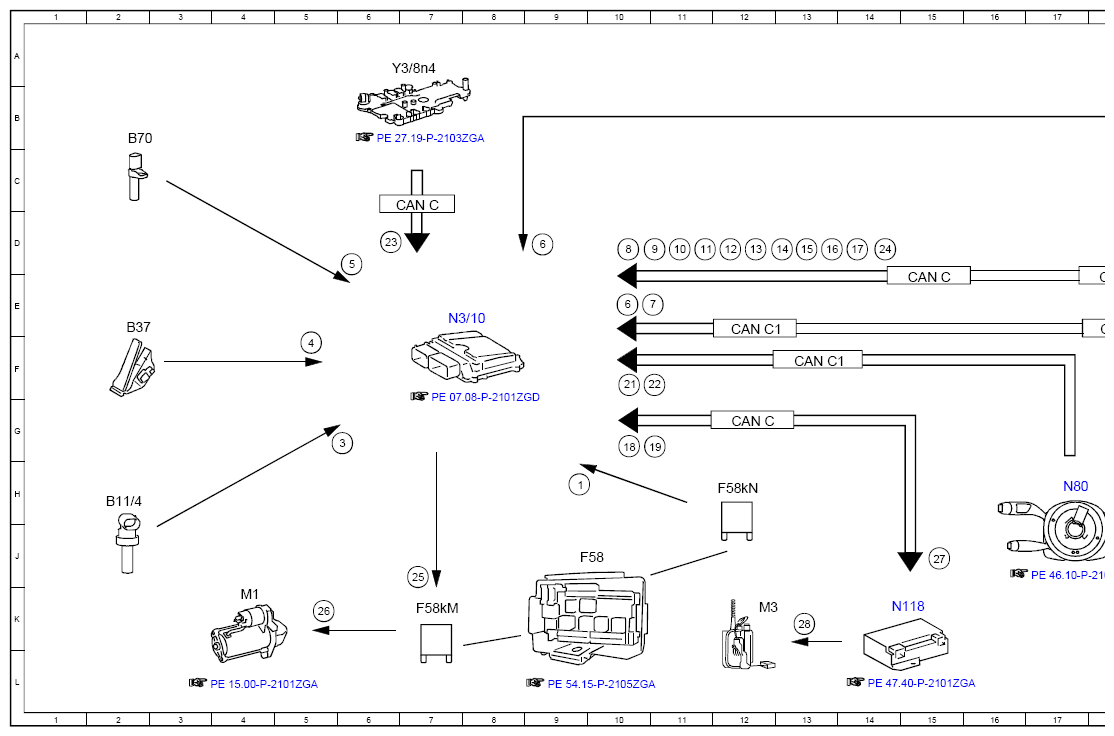

G13656222Courtesy of MERCEDES-BENZ USA

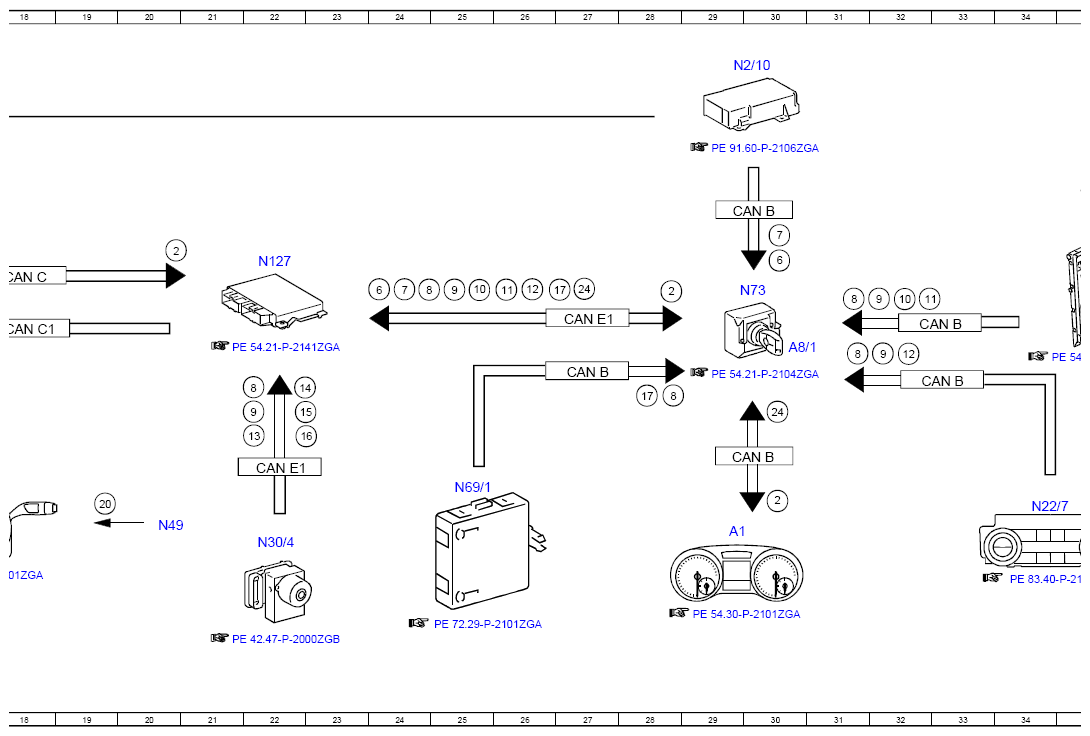

G13656223Courtesy of MERCEDES-BENZ USA
G13656224Courtesy of MERCEDES-BENZ USA
