Remove/Install Left Fuel Pressure Sensor - AR07.04-P-0201XGC

Engine 177 in model 463

as of model year 2019

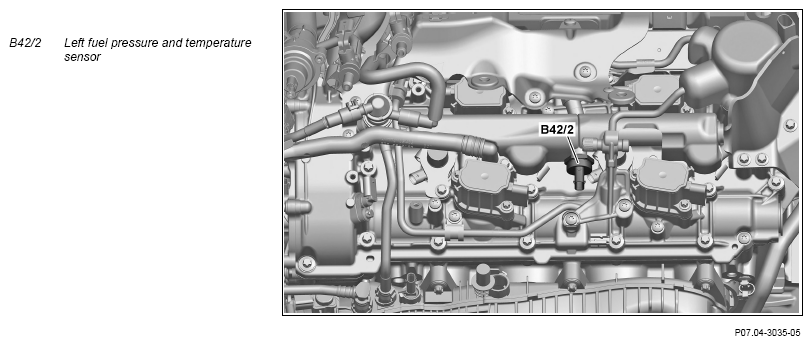

Fig 1: Left Fuel Pressure Sensor Components Location - Engine 177 In Model 463 As Of Model Year 2019
G13656106Courtesy of MERCEDES-BENZ USA
  Risk of explosion  caused by fuel igniting, risk of poisoning  caused by inhaling and swallowing fuel as well as risk of injury  to eyes and skin caused by contact with fuel. No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only.
Wear protective clothing when handling fuel.
AS47.00-Z-0001-01A
  Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
  General information on work on gasoline direct injection system   AH07.00-P-2000-01A
  Note on calculation of tightening torque when using insertion or socket tools with various effective lengths   AH00.00-P-0015-01CW
REMOVINGINSTALLING Remove/install
1 Remove left low-pressure line with service connection and place to one side with hose connection connected. INSTALLATION IMPORTANT : Only install upper engine cover after the leak test. AR07.03-P-1130XGC
2 Release and disconnect electrical connector on left fuel pressure and temperature sensor (B42/2).
3 Clean rail in area of left fuel pressure and temperature sensor (B42/2). NOTES
Absolute cleanliness is essential when working on the high-pressure fuel circuit. Use only lint-free cleaning cloths.
Damage will occur otherwise on the high- pressure fuel circuit.

    Assembly cleaner *BR00.45-Z-1028-04A
4 Cover connecting point of left fuel pressure and temperature sensor (B42/2) with suitable rags and carefully loosen left fuel pressure and temperature sensor (B42/2) slightly. NOTES
No fuel should flow over the engine.
Damage will occur otherwise.
IMPORTANT Wear oil-resistant, fiber-free gloves lined with rubber.

    SPECIAL TOOL Box wrench attachment, 27_mm Fig 2
5 Remove left fuel pressure and temperature sensor (B42/2). INSTALLATION NOTES :
Use new left fuel pressure and temperature sensor (B42/2), as left fuel pressure and temperature sensor (B42/2) is only designed for screwing once.
Leaks can occur otherwise.
IMPORTANT Collect exuded fuel using a suitable absorbent rag.

    TORQUE SPECIFICATION Pressure transducer to fuel distributor *BA07.52-P-1002-01J
    SPECIAL TOOL Box wrench attachment, 27_mm Fig 2
6 Install in the reverse order.
7 Read out and delete fault memory.
REFER TO SELF DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04B
8 Check fuel system for leak tightness.
REFER TO SELF DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04B
      AR07.03-P-1010-04MM
WARNING Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
9 Perform engine test run and check engine for proper operation and leak tightness.
10 Install upper engine cover.   AR01.10-P-2405XGC
FUEL DISTRIBUTOR

Number Designation Engine 177
BA07.52-P-1002-01J Pressure transducer to fuel distributor Nm 38
Fig 2: Identifying Box Wrench Attachment, 27 MM (000 589 10 99 30)
G13656107Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1028-04A Assembly cleaner A 000 986 56 01
