Remove/Install Left Fuel Pressure Sensor - AR07.04-P-0201XGA

Engine 176 in model 463

as of model year 2019

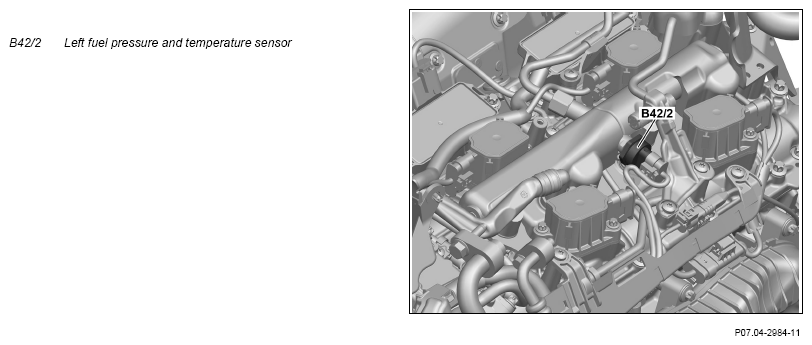

Fig 1: Left Fuel Pressure Sensor Components Location - Engine 176 In Model 463 As Of Model Year 2019

Courtesy of MERCEDES-BENZ USA

	Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel.	No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel.	AS47.00-Z-0001-01A
	Risk of explosion caused by fuel igniting. Risk of injury to skin and eyes caused by fuel spraying out at high pressure	Keep all ignition sources out of hazard area. Do not carry out any work on system when it is pressurized.	AS07.16-Z-0001-01A
	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Note on calculation of tightening torque when using insertion or socket tools with various effective lengths		AH00.00-P-0015-01CW
	General information on work on gasoline direct injection system		AH07.00-P-2000-01A
	Remove/install
1	Disconnect battery ground line		AR54.10-P-0003XG
2	Remove left-hand air filter housing		AR09.10-P-1151XGA
3	Remove noise insulation above left cylinder head cover
4	Relieve fuel pressure over diagnostic socket		AR07.03-P-1460-01XGA
		Dust protection cap to service connection	*BA07.03-P-1005-01H
		Pressure hose	Fig 3
5	Release and disconnect electrical connector at left fuel pressure and temperature sensor (B42/2)
6	Clean rail in the area of left fuel pressure and temperature sensor (B42/2)	Ensure absolute cleanliness when working on the high-pressure fuel circuit. Use only lint-free cleaning cloths Damage will occur otherwise on the high- pressure fuel circuit.
		Assembly cleaner	*BR00.45-Z-1028-04A
7	Cover area around left fuel pressure and temperature sensor (B42/2) with suitable rags and carefully slightly release left fuel pressure and temperature sensor (B42/2)	Wear oil-resistant, fiber-free gloves lined with rubber.
		Box wrench attachment, 27_mm	Fig 2
8	Remove left fuel pressure and temperature sensor (B42/2)	: Install new left fuel pressure and temperature sensor (B42/2). Collect exuded fuel using a suitable absorbent rag.
		Pressure transducer to fuel distributor	*BA07.52-P-1002-01J
		Box wrench attachment, 27_mm	Fig 2
9	Install in the reverse order
10	Read out and erase fault memory
			AD00.00-P-2000-04B
11	Check fuel high-pressure circuit for leaktightness
			AD00.00-P-2000-04B
			AR07.03-P-1010-04MM
	Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
12	Perform an engine test run and check engine for proper operation and leaktightness
