Remove/Install Engine Management Control Unit (MCM) - AR07.08-P-7013XGA
Engine 176 in model 463
as of model year 2019
Fig 1: Engine Management Control Unit (MCM) Components Location - Engine 176 In Model 463 As Of Model Year 2019
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Start the control unit replacement with the diagnostic system. | When replacing the ME-SFI [ME] control unit (N3/10). | |
| AD00.00-P-2000-04B | |||
| 2 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 3 | Remove the fender liner in the right fender. | AR88.10-P-1300XG | |

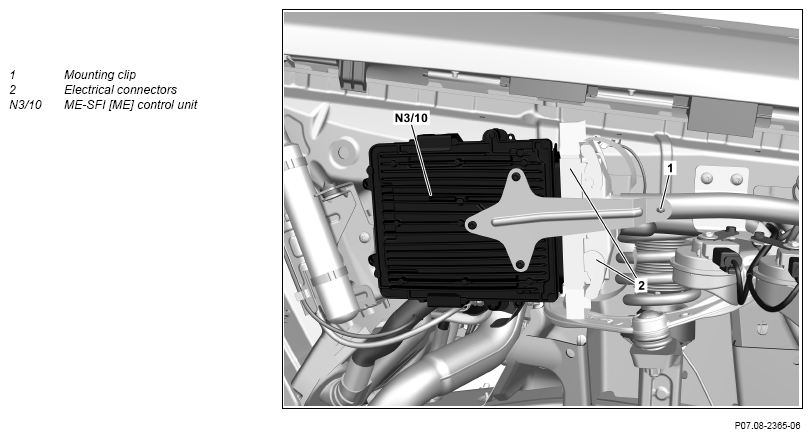

| 4 | Release and disconnect the electrical connections (2). | ||
| 5 | Unclip the electrical wiring harness on the retaining clip (1) and place to one side. | ||

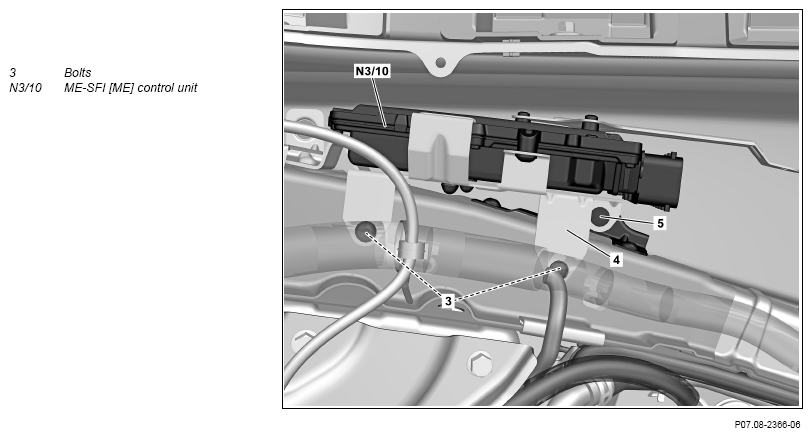

| 6 | Remove screws/bolts (3). | *BA54.21-P-1003-01F | |
| 7 | Remove the ME control unit (N3/10) with bracket (12) by moving it downward. | ||

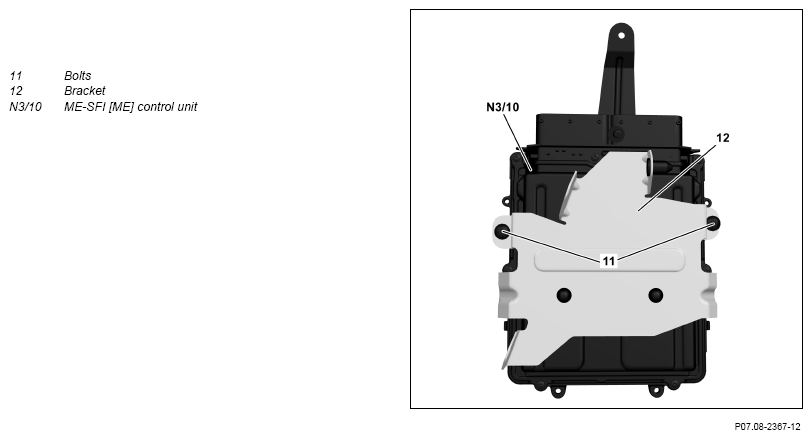

| 8 | Unscrew the bolts (11) and remove the bracket (12). | When replacing the ME-SFI [ME] control unit (N3/10). | |
| *BA54.21-P-1002-01F | |||

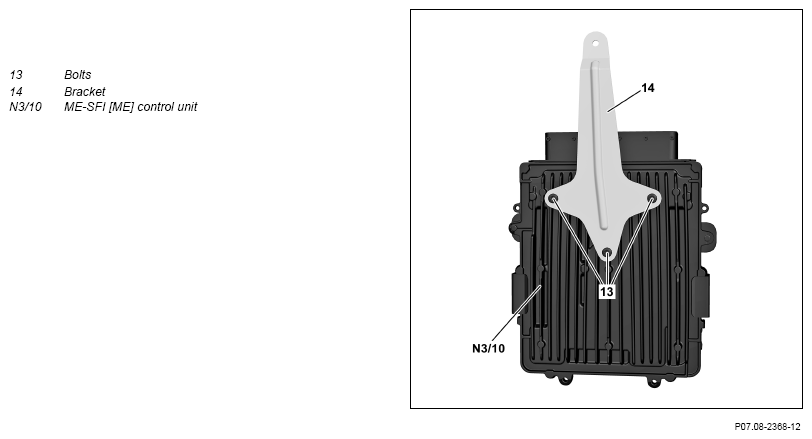

| 9 | Unscrew the bolts (13) and remove the bracket (14). | When replacing the ME-SFI [ME] control unit (N3/10). | |
| *BA15.18-P-1006-01G | |||
| 10 | Install in the reverse order. | ||
| 11 | Read out the fault memory and delete if necessary. | ||
| AD00.00-P-2000-04B | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 12 | Perform an engine test run and check the engine for proper function. |
ENGINE WIRING HARNESS
| Number | Designation | Engine 176 | ||
|---|---|---|---|---|
| BA15.18-P-1006-01G | Bolt, holder for engine wiring harness to engine management (MCM) control unit | M5 | Nm | 6 |
CONTROL UNITS/BASE MODULE
| Number | Designation | Model 463 as of model year 2019 | ||
|---|---|---|---|---|
| BA54.21-P-1002-01F | Bolt, holder for engine management (MCM) control unit | M6 | Nm | 8 |
CONTROL UNITS/BASE MODULE
| Number | Designation | Model 463 as of model year 2019 | ||
|---|---|---|---|---|
| BA54.21-P-1003-01F | Bolt, holder for engine management (MCM) control unit to body | M6 | Nm | 8 |
