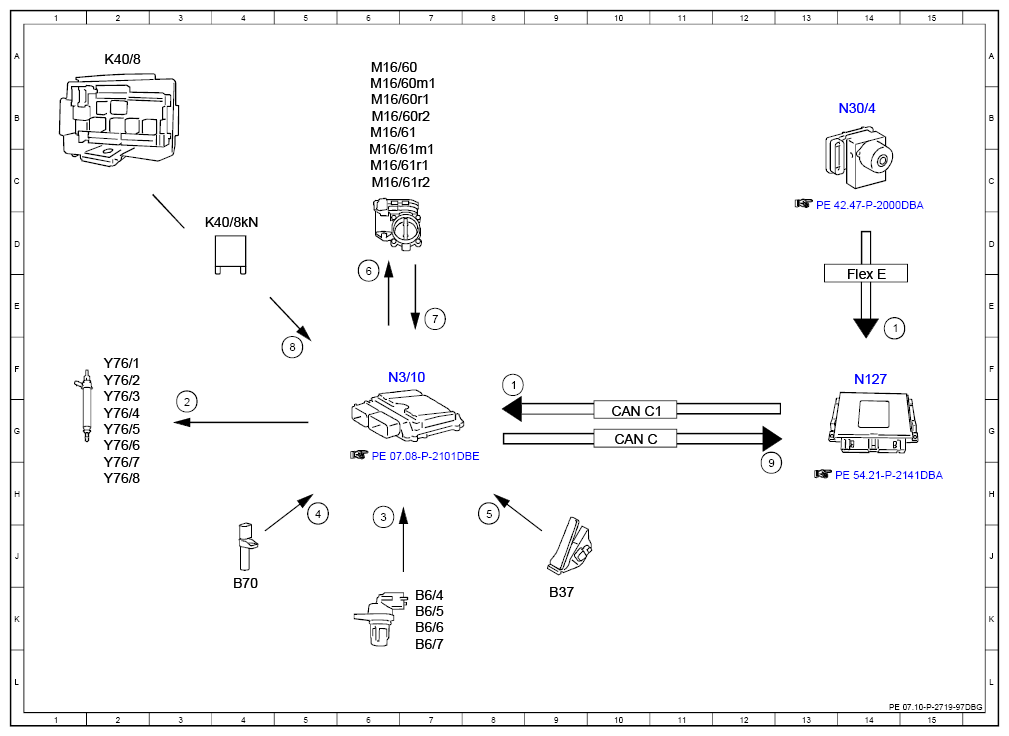

Electrical Function Schematic For Engine Limp-Home Mode - PE07.10-P-2719-97DBG

Engine 177.9 in model 213 up to model year 2021

Code: Designation: Position:
1 Service brake, status 8F
1 Service brake, status 14E
2 Fuel injectors, actuation 3G
3 Camshaft Hall sensor, signal 6H
4 Engine speed, signal 5H
5 Accelerator pedal sensor, signal 8H
6 Throttle valve actuator motor, actuation 6D
7 Throttle valve position, signal 7E
8 Circuit 87, status 5F
9 Engine running, signal 12H
B37 Accelerator pedal sensor 9K
B6/4 Left intake camshaft Hall sensor 7K
B6/5 Right intake camshaft Hall sensor 7K
B6/6 Left exhaust camshaft Hall sensor 7K
B6/7 Right exhaust camshaft Hall sensor 7K
B70 Crankshaft Hall sensor 4K
CAN C Engine CAN 10G
CAN C1 Drive train CAN 10G
Flex E Chassis FlexRay 14E
K40/8 Engine fuse and relay module 2A
K40/8kN Circuit 87M relay 4D
M16/60 Left throttle valve actuator 6A
M16/60m1 Left throttle valve actuator motor 6B
M16/60r1 Left actual value potentiometer 1 6B
M16/60r2 Left actual value potentiometer 2 6B
M16/61 Right throttle valve actuator 6B
M16/61m1 Right throttle valve actuator motor 6C
M16/61r1 Right actual value potentiometer 1 6C
M16/61r2 Right actual value potentiometer 2 6C
N127 Drivetrain control unit 14F
N3/10 ME-SFI [ME] control unit 6F
N30/4 Electronic Stability Program control unit 14B
Y76/1 Cylinder 1 fuel injector 2F
Y76/2 Cylinder 2 fuel injector 2F
Y76/3 Cylinder 3 fuel injector 2G
Y76/4 Cylinder 4 fuel injector 2G
Y76/5 Cylinder 5 fuel injector 2G
Y76/6 Cylinder 6 fuel injector 2G
Y76/7 Cylinder 7 fuel injector 2H
Y76/8 Cylinder 8 fuel injector 2H
G13770533Courtesy of MERCEDES-BENZ USA
