Remove/Install High-Pressure Fuel Pump - AR07.02-P-1020MSA

Engine 256.9 in model 213, 238, 257, 290

MODIFICATION NOTES

11.12.2019 Union nut, high-pressure line to fuel distributor/fuel high-pressure pump BA07.03-P-1001-01MRT

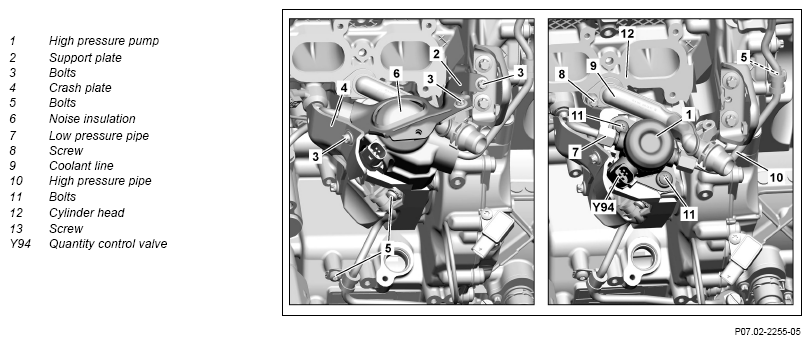

Fig 1: High-Pressure Fuel Pump Components Location - Engine 256.9 In Model 257
G14548146Courtesy of MERCEDES-BENZ USA
DANGER Risk of explosion  caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only.
Wear protective clothing when handling fuel.
AS47.00-Z-0001-01A
Topical note  Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
Topical note  Notes on threaded connections fastened using a tightening angle-based tightening process   AH00.00-P-0020-01A
  Note on calculation of tightening torque when using insertion or socket tools with various effective lengths   AH00.00-P-0015-01CW
  General information on work on gasoline direct injection system   AH07.00-P-2000-01A
REMOVINGINSTALLING Remove/install
1 Remove fan unit.   AR20.40-P-5050MSA
    INSTALLATION IMPORTANT Only install engine cover after the leak test.
2 Mount protective plate on cooler.
REFER TO SHOP-MADE TOOLS     WF58.50-P-0110-04A
3 Remove charge-air distributor. INSTALLATION IMPORTANT Only install lower engine compartment paneling after leak test. AR09.41-P-8683MSA
4 Rotate engine in direction of engine rotation to a crank angle of 120° after ignition TDC. IMPORTANT The 120° marking on the vibration damper must match with marking on crankcase.
    SPECIAL TOOL Counterholder Fig 4
5 Remove bolts (5). TORQUE SPECIFICATION Bolt, holder for low-pressure line to shield/supporting plate *BA07.03-P-1007-01MRT
6 Remove screws (3) and remove supporting plate (2). TORQUE SPECIFICATION Screw, shield to fuel high-pressure pump housing/support plate *BA07.02-P-1006-01MRT
7 Remove coolant hose from coolant line (9).   AR20.20-P-7441-01RQ
8 Remove screw (8), remove coolant line (9) and seal opening on cylinder head (12). INSTALLATION IMPORTANT Replace sealing ring.
    TORQUE SPECIFICATION Screw, coolant feed pipe to cylinder head/crankcase *BA20.20-P-1001-02MRT
    SPECIAL TOOL Set of plugs Fig 2
9 Remove noise insulation (6).
10 Clean the environment around the high-pressure pump (1), low-pressure line (7) and high-pressure line (10). Assembly cleaner *BR00.45-Z-1028-04A
11 Release and disconnect electrical connector a quantity control valve (Y94).
DANGER Risk of explosion  caused by fuel igniting. Risk of injury  to skin and eyes caused by fuel spraying out at high pressure Keep all ignition sources out of hazard area. Do not carry out any work on system when it is pressurized. AS07.16-Z-0001-01A
12 Remove high-pressure line (10) from high-pressure pump (1) and catch escaping fuel with a lint-free rag. NOTES
Do not bend or kink high-pressure line (10). Leaks can occur otherwise.

    TORQUE SPECIFICATION Union nut, high-pressure line to fuel distributor/fuel high-pressure pump *BA07.03-P-1001-01MRT
    SPECIAL TOOL Box wrench bit Fig 5
    SPECIAL TOOL Record plug Fig 3
13 Remove screw (13). TORQUE SPECIFICATION Bolt, holder for low-pressure line to shield/supporting plate *BA07.03-P-1007-01MRT
14 Remove low-pressure line (7) from high-pressure pump (1) and seal openings with suitable stop plugs. NOTES
Do not bend of kink low-pressure line (7).
Leaks can occur otherwise.

    TORQUE SPECIFICATION Union nut, low-pressure line to fuel high-pressure pump *BA07.03-P-1006-01MRT
    SPECIAL TOOL Box wrench bit Fig 5
    SPECIAL TOOL Record plug Fig 3
15 Remove screws (11). NOTES
Remove screws (11) alternately by one revolution each.
The high-pressure pump (1) may otherwise be damaged.
IMPORTANT Replace screws (11).

    TORQUE SPECIFICATION Screw/bolt, high pressure fuel pump to housing *BA07.02-P-1001-01MRT
16 Remove high-pressure pump (1). IMPORTANT Installation: Replace sealing ring.
INSPECT Check
17 Check high-pressure line (10).   AR07.03-P-1010-03MRT
    Assembly cleaner *BR00.45-Z-1028-04A
18 Check low-pressure line (7). Assembly cleaner AR07.03-P-1120-01MRT
19 Install in the reverse order.   *BR00.45-Z-1028-04A
INSPECT Check
20 Switch on ignition. NOTES
Prior to starting the engine, switch on the ignition for 5 s and fill the high-pressure pump (1) with fuel.
The high-pressure pump (1) will be damaged otherwise.

21 Check high-pressure fuel circuit.
REFER TO SELF-DIAGNOSTIC SYSTEMS   Engine 256.9 in model 213 AD00.00-P-2000-04B
REFER TO SELF-DIAGNOSTIC SYSTEMS   Engine 256.9 in model 238 AD00.00-P-2000-06LWO
REFER TO SELF-DIAGNOSTIC SYSTEMS   Engine 256.9 in model 257, 290 AD00.00-P-2000-06FR
      AR07.03-P-1010-04MM
WARNING Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
22 Carry out engine test run and check engine for proper operation and leak tightness.
23 Install lower engine compartment lining. Engine 256.9 in model 213, 238 AR61.20-P-1105LWE
    Engine 256.9 in model 290 AR61.20-P-1105FRX
    Engine 256.9 in model 257 AR61.20-P-1105FR
24 Install upper engine cover.   AR01.10-P-2405MSA
HIGH PRESSURE FUEL PUMP, HIGH PRESSURE FUEL PUMP HOUSING

Number Designation Engine 256.9
BA07.02-P-1001-01MRT Screw/bolt, high pressure fuel pump to housing Nm 8
HIGH PRESSURE FUEL PUMP, HIGH PRESSURE FUEL PUMP HOUSING

Number Designation Engine 256.9
BA07.02-P-1006-01MRT Screw, shield to fuel high-pressure pump housing/support plate Nm 8
HIGH-PRESSURE LINE, LOW-PRESSURE LINE, FUEL DISTRIBUTOR

Number Designation Engine 256.9
BA07.03-P-1001-01MRT Union nut, high-pressure line to fuel distributor/fuel high-pressure pump In case of reusability Nm 18
For new lines Stage 1 Nm 15
Stage 2 ∠° 90
HIGH-PRESSURE LINE, LOW-PRESSURE LINE, FUEL DISTRIBUTOR

Number Designation Engine 256.9
BA07.03-P-1006-01MRT Union nut, low-pressure line to fuel high-pressure pump Stage 1 Nm 15
Stage 2 ∠° 75
Stage 3 ∠° 25
HIGH-PRESSURE LINE, LOW-PRESSURE LINE, FUEL DISTRIBUTOR

Number Designation Engine 256.9
BA07.03-P-1007-01MRT Bolt, holder for low-pressure line to shield/supporting plate Nm 8
ENGINE RADIATOR, COOLANT HOSES AND LINES

Number Designation Engine 256
BA20.20-P-1001-02MRT Screw, coolant feed pipe to cylinder head/crankcase Nm 8
Fig 2: Identifying Set Of Plugs (199 589 00 98 00)
G10781222Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Record Plug (129 589 00 91 00)
G09975019Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Counterholder (654 589 00 40 00)
G11971953Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Box Wrench Bit (000 589 69 03 00)
G07449509Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1028-04A Assembly cleaner A 000 986 56 01
