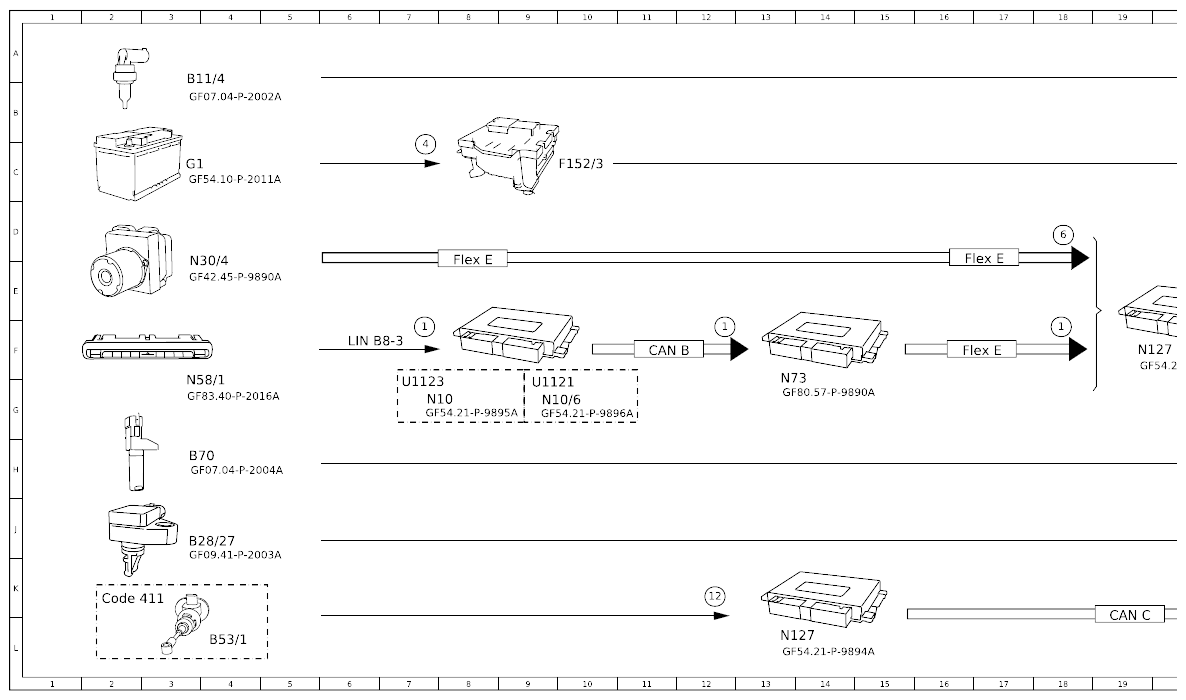

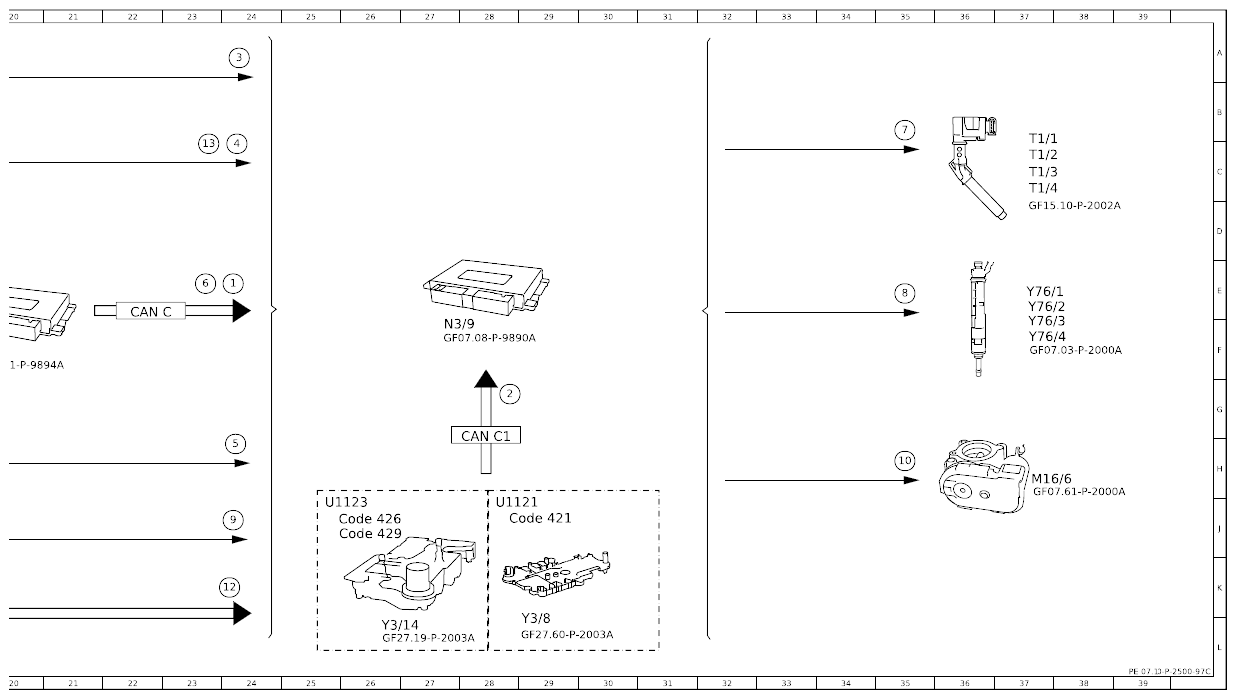

Function Schematic For RPM Control - PE07.10-P-2500-97C
Engine 260 in model 118, 177, 247
Engine 264 in model 167
| Code: | Designation: | Position: |
|---|---|---|
| 1 | air conditioning, status | 7F |
| 1 | Air conditioning, status | 12F |
| 1 | Air conditioning, status | 18F |
| 1 | Air conditioning, status | 24E |
| 10 | Throttle valve position, signal | 35H |
| 12 | Clutch pedal switch, status | 12L |
| 12 | Clutch pedal switch, status | 24K |
| 13 | Circuit 87, status | 23C |
| 2 | Gear range, status | 28G |
| 3 | Air conditioning, status | 24A |
| 4 | Circuit 30, status | 7C |
| 4 | Circuit 30, status | 24C |
| 5 | Engine speed, signal | 24H |
| 6 | Wheel speed, signal | 18D |
| 6 | Wheel speed, signal | 23E |
| 7 | Ignition coils, actuation | 35C |
| 8 | Fuel injectors, actuation | 35E |
| 9 | Engine load, signal | 24J |
| B11/4 | Coolant temperature sensor | 3B |
| B28/27 | Pressure and temperature sensor downstream of throttle valve | 4K |
| B53/1 | Clutch travel sensor with start enable switch | 4L |
| B70 | Crankshaft Hall sensor | 3H |
| CAN B | Interior CAN | 11F |
| CAN C | Engine CAN | 22F |
| CAN C | Engine CAN | 19L |
| CAN C1 | Drive train CAN | 28H |
| Code 411 | 6-SPEED MANUAL TRANSMISSION | 2L |
| Code 421 | 9G-TRONIC | 28J |
| Code 426 | 8G-DCT | 25J |
| Code 429 | 7G-DCT | 25J |
| F152/3 | Engine compartment fuse and relay module | 10C |
| Flex E | Chassis FlexRay | 8E |
| Flex E | Chassis FlexRay | 16F |
| Flex E | Chassis FlexRay | 17E |
| G1 | On-board electrical system battery | 3C |
| LIN B8-3 | AC operation LIN | 6F |
| M16/6 | Throttle valve actuator | 37J |
| N10 | Central control module | 7G |
| N10/6 | Front central control unit | 9G |
| N127 | Drivetrain control unit | 19F |
| N127 | Drivetrain control unit | 13L |
| N3/9 | CDI control unit | 27F |
| N30/4 | Electronic Stability Program (ESP®) control unit | 4E |
| N58/1 | Climate control operating unit | 3G |
| N73 | Electronic ignition switch control unit | 13G |
| T1/1 | Cylinder 1 ignition coil | 37C |
| T1/2 | Cylinder 2 ignition coil | 37C |
| T1/3 | Cylinder 3 ignition coil | 37C |
| T1/4 | Cylinder 4 ignition coil | 37D |
| 111121 | Valid for model 1 67 | 9G |
| U1121 | Valid for model 1 67 | 28J |
| IM 123 | Valid for model 1 18, 177, 247 | 7G |
| U1123 | Valid for model 1 18, 177, 247 | 25J |
| Y3/14 | Dual clutch transmission fully integrated transmission control electrohydraulic controller unit | 26L |
| Y3/8 | Fully integrated transmission control controller unit | 29L |
| Y76/1 | Cylinder 1 fuel injector | 37E |
| Y76/2 | Cylinder 2 fuel injector | 37F |
| Y76/3 | Cylinder 3 fuel injector | 37F |
| Y76/4 | Cylinder 4 fuel injector | 37F |
