Remove/Install Low Temperature Circuit Coolant Temperature Sensor - AR07.04-P-2716MFG
Engine 139 in model 118, 177, 247

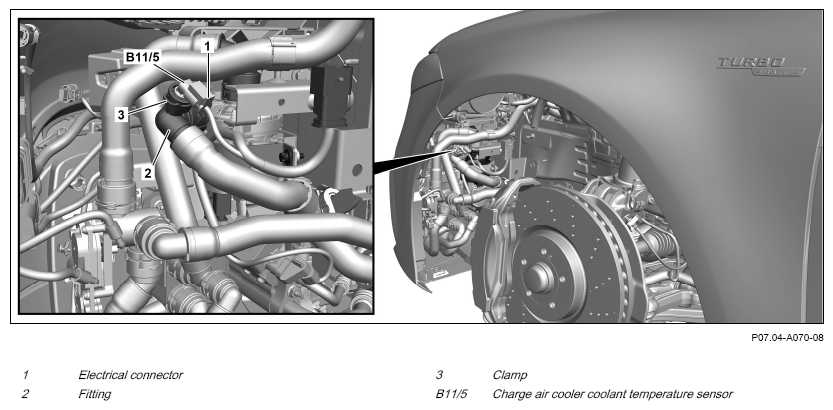

Fig 1: Charge Air Cooler/Low Temperature Circuit Coolant Temperature Sensor Components Location - Model 118 With Engine 139
Shown on model 177
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on coolant | AH20.00-P-2080-01KOA | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Notes on coolant level | AH20.00-P-1142-01CW | ||
| Remove/install | |||
| 1 | Drain coolant of low-temperature circuit. | AR09.41-P-6834MFG | |
| 2 | Remove front section of left front fender liner. | AR88.10-P-1301MFA | |
| 3 | Release electrical connector (1) and disconnect. | ||
| 4 | Remove clip (3) from fitting (2). | ||
| 5 | Remove charge air cooler coolant temperature sensor (B11/5). | ||
| 6 | Install in the reverse order. | ||
| 7 | Read out and delete fault memory. | ||
| AD00.00-P-2000-06MFA | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 8 | Perform engine test run. While doing so, check engine for proper operation and leak tightness. | ||
| 9 | Install front section of left front fender liner. | AR88.10-P-1301MFA | |
| 10 | Install lower engine compartment lining. | AR61.20-P-1105MFR |
