(Remove/Install Keyless-Go Control Unit - AR80.61-P-0002CLW)
Model 205.3
up to model year 2019
with code 889 (KEYLESS-GO)
Model 205.3
up to model year 2019
with code 893 (KEYLESS-Start)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Perform commissioning of the KEYLESS-GO control unit (N69/5). | When replacing KEYLESS-GO control unit (N695). | |
| AD00.00-P-2000-04B | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 3 | Remove side trim in left side of trunk. | AR68.30-P-4800LW | |

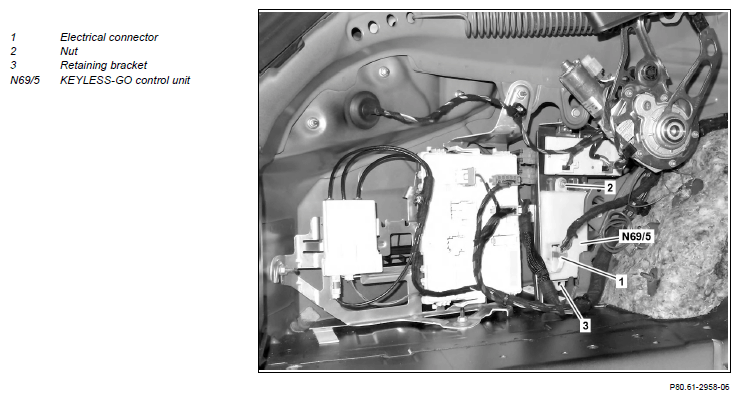

| 4 | Release electrical connector (1) and disconnect. | ||
| 5 | Unbolt nut (2). | ||
| 6 | Move KEYLESS-GO control unit (N69/5) out o retaining bracket (3) and remove. | ||
| 7 | Install in the reverse order. |
