Remove/Install Radar Sensor - AR30.30-P-1210LW
Model 205
up to model year 2019
with code 237 (Active Blind Spot Assist)
with code 258 (Collision Warning System With Active Brake Application FCW-Stop)
with code 266 (DISTRONIC PLUS with Cross-Traffic Assist (DTR+Q))
Model 205
up to model year 2019
with code 268 (Brake Assist System Plus)
with code 269 (Brake Assist PLUS with Cross-Traffic Assist (BAS+Q)
with code 271 (Autonomous Brake Intervention/Pedestrian Protection)
with code 300 (PRE-SAFE® Brake)
Model 253
with code 237 (Active Blind Spot Assist)
with code 258 (Collision Warning System With Active Brake Application FCW-Stop)
with code 266 (DISTRONIC PLUS with Cross-Traffic Assist (DTR+Q))
with code 268 (Brake Assist System Plus)
with code 269 (Brake Assist PLUS with Cross-Traffic Assist (BAS+Q)
with code 271 (Autonomous Brake Intervention/Pedestrian Protection)
with code 300 (PRE-SAFE® Brake)
MODIFICATION NOTES
| 01.03.2018 | Method relating to commissioning updated. | Operation steps 1 and 7 |
Shown on model 205 with code U60 (Active engine hood (pedestrian protection))
|
Topical note |
Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
|
Topical note |
Notes on preventing damage to electronic components due to a magnetic tool | AH54.00-P-0002-01A | |
| Remove/Install | |||
| 1 | Commission the Collision Prevention Assist (A90) controller unit or the front bumper radar sensors (B92/3, B93/4) with the vehicle diagnosis system. | ||
| AD00.00-P-2000-04B | |||
| 2 | Remove front bumper. | AR88.20-P-2000LW | |

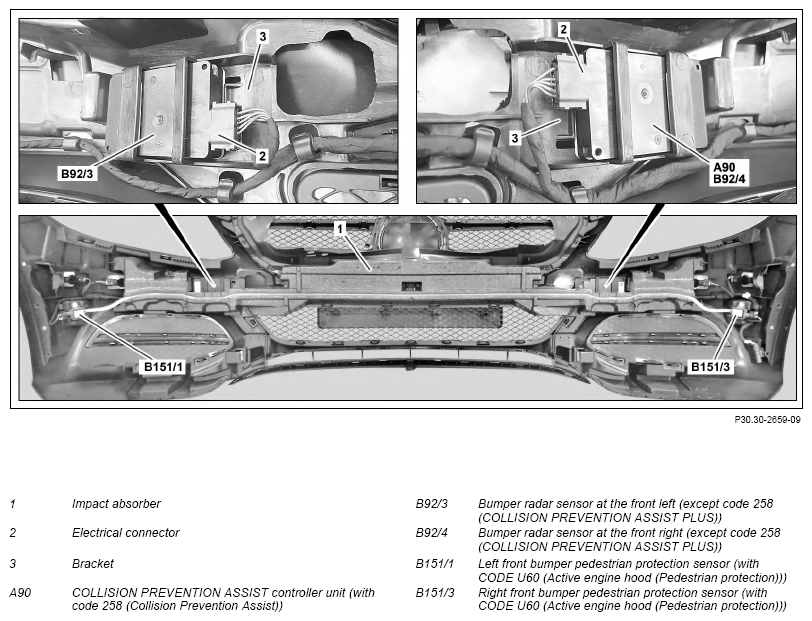

| 3.1 | Remove impact absorber (1). | Model 205 up to model year 2019 with code 237 (Active Blind Spot Assist) except code U60 (Pedestrian Protection - Active Hood) with code 258 (Collision Warning System With Active Brake Application FCW-Stop) except code U60 (Pedestrian Protection - Active Hood) with code 266 (DISTRONIC PLUS with Cross Traffic Assist (DTR+Q)) except code U60 (Pedestrian Protection - Active Hood) with code 268 (Brake Assist System Plus) except code U60 (Pedestrian Protection - Active Hood) with code 269 (Brake Assist PLUS with Cross-Traffic Assist (BAS+Q) except code U60 (Pedestrian Protection - Active Hood) with code 271 (Autonomous Brake Intervention/Pedestrian Protection) except code U60 (Pedestrian Protection - Active Hood) with code 300 (PRE-SAFE® Brake) except code U60 (Pedestrian Protection - Active Hood) Model 253 with code 237 (Active Blind Spot Assist) except code U60 (Pedestrian Protection - Active Hood) with code 258 (Collision Warning System With Active Brake Application FCW-Stop) except code U60 (Pedestrian Protection - Active Hood) with code 266 (DISTRONIC PLUS with Cross Traffic Assist (DTR+Q)) except code U60 (Pedestrian Protection - Active Hood) with code 268 (Brake Assist System Plus) except code U60 (Pedestrian Protection - Active Hood) with code 269 (Brake Assist PLUS with Cross-Traffic Assist (BAS+Q) except code U60 (Pedestrian Protection - Active Hood) with code 271 (Autonomous Brake Intervention/Pedestrian Protection) except code U60 (Pedestrian Protection - Active Hood) with code 300 (PRE-SAFE® Brake) except code U60 (Pedestrian Protection - Active Hood) |
|
|
Topical note |
General information on the impact absorber | AH88.20-P-1000-01A | |
| 3.2 | Unfasten the impact absorber (1) and place to one side with the connected front bumper pedestrian protection sensor (B151/1, B151/3). | Model 205 up to model year 2019 with code 237 (Active Blind Spot Assist) with code U60 (Pedestrian Protection - Active Hood) with code 258 (Collision Warning System With Active Brake Application FCW-Stop) with code U60 (Pedestrian Protection - Active Hood) with code 266 (DISTRONIC PLUS with Cross Traffic Assist (DTR+Q)) with code U60 (Pedestrian Protection - Active Hood) with code 268 (Brake Assist System Plus) with code U60 (Pedestrian Protection - Active Hood) with code 269 (Brake Assist PLUS with Cross-Traffic Assist (BAS+Q) with code U60 (Pedestrian Protection - Active Hood) with code 271 (Autonomous Brake Intervention/Pedestrian Protection) with code U60 (Pedestrian Protection - Active Hood) with code 300 (PRE-SAFE® Brake) with code U60 (Pedestrian Protection - Active Hood) Model 253 with code 237 (Active Blind Spot Assist) with code U60 (Pedestrian Protection - Active Hood) with code 258 (Collision Warning System With Active Brake Application FCW-Stop) with code U60 (Pedestrian Protection - Active Hood) with code 266 (DISTRONIC PLUS with Cross Traffic Assist (DTR+Q)) with code U60 (Pedestrian Protection - Active Hood) with code 268 (Brake Assist System Plus) with code U60 (Pedestrian Protection - Active Hood) with code 269 (Brake Assist PLUS with Cross-Traffic Assist (BAS+Q) with code U60 (Pedestrian Protection - Active Hood) with code 271 (Autonomous Brake Intervention/Pedestrian Protection) with code U60 (Pedestrian Protection - Active Hood) with code 300 (PRE-SAFE® Brake) with code U60 (Pedestrian Protection - Active Hood) |
|
|
Topical note |
General information on the impact absorber | AH88.20-P-1000-01A | |
|
Topical note |
Notes on pedestrian protection sensor | AH91.60-P-0001-01A | |
| 4 | Disconnect the electrical connector (2) on the front bumper radar sensor (B92/3, B92/4) or at the Collision Prevention Assist (A90) controller unit. | ||
| 5 | Unlock the bracket (3) and remove the front bumper radar sensor (B92/3, B92/4) or Collision Prevention Assist (A90) controller unit. | ||
| 6 | Install in the reverse order. | ||
| 7 | Perform a test drive and therefore adjust the Collision Prevention Assist (A90) controller unit or the front bumper radar sensors (B92/3, B93/4). |
