Remove/Install Windshield - AR67.10-P-1700LF

Model 217

Model 222

except code Z07 (B7 armoring on special protection version)

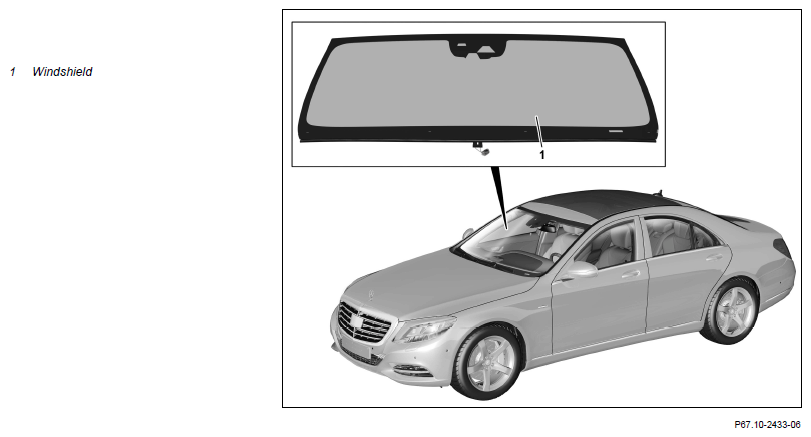

Shown on model 222

Courtesy of MERCEDES-BENZ USA

	Injury hazard from pinching and crushing, in extreme cases extremities can even be cut off when caught in windshield wiper mechanism.	When working on the windshield wiper mechanism, always switch off the ignition and store transmitter key outside of transmission range (at least 2 m).	AS82.30-Z-0001-01A
Topical note	Notes on removal/installation of windshield		AH67.10-P-1000-01P
	Remove
1	1K Prepare - component adhesive cartridge		AR67.10-P-1000-12SX
		Repair kit for installing windshields, 1-component adhesive	*BR00.45-Z-1135-02A
		Adapter	Fig 2
2	Remove detachable parts in area of windshield (1)		AR67.10-P-1050LF
3	Remove rain/light sensor		AR82.30-P-7800LF
4	Remove infrared camera	Model 217 with code 610 (Night view assist) Model 222 with code 610 (Night view assist) except code Z07 (B7 armoring on special protection version)	AR54.30-P-3000LF
5	Remove multifunction camera	Model 222	AR54.21-P-3000LF
		Model 217 with code 487 (Active Body Control (ABC)) Model 217 with code 513 (Speed Limit Assist) Model 217 with code 608 (Automatic high beam control (IHC)) Model 217 with code 610 (Night view assist) Model 217 with code 628 (INTELLIGENT HEADLAMP CONTROL PLUS (IHC+)) Model 217 with code P20 (Driving assistant package Plus) Model 217 with code P35 (Light Package)	AR54.21-P-3000LC
6	Cover vehicle interior in repair area
	Risk of injury  from cutting wire tearing or becoming hot and from splinters of glass when cutting out bonded windows	Wear protective gloves and safety glasses.	AS67.00-Z-0004-01A
7	Cut out windshield (1) with window removal tool		AR67.10-P-1000-11SX
8	Remove windshield (1) from body with cup suction tools	Helper required.
	Install
9	Open driver door side window	Open side window in driver door until adhesive has cured (idle time). This prevents the windshield (1) from being pressed outwards by the sudden air pressure when the doors are closed.
10	Prepare body flange for installation of window		AR67.10-P-1501-01P
Topical note	General notes about painting the body flange in the glazing area		AH98.00-P-9408-06A
		Wear cotton gloves. Ensure that no fingerprints are present in the area of the bonding surface. The bonding surface should be free of dust, oil, grease, wax and other adhesive components or dirt residues. Otherwise the adhesive force of the glue starts to decrease. Use only primer filler approved by Daimler AG: http://aftersales.mercedes-benz.com
		Repair kit for installing windshields, 1-component adhesive	*BR00.45-Z-1135-02A
		Primer stick	*BR00.45-Z-1012-07A
11	Replace rubber window spacers	Do not yet remove protective foils.	AR67.10-P-1000-02T
12	Align windshield (1) in body opening	Helper required.	AR67.10-P-1000-09LF
		Model 217 Distance between top edge of window and frame of panoramic roof	*BE67.10-P-1001-01I
		Model 222 except code Z07 (B7 armoring on special protection version) Distance between top edge of window and front edge of roof	*BE67.10-P-1001-01E
		Feeler gauge	Fig 1
13	Prepare windshield (1) for installation	Wear cotton gloves. Ensure that no fingerprints are present in the area of the bonding surface. The bonding surface should be free of dust, oil, grease, wax and other adhesive components or dirt residues. Otherwise the adhesive force of the glue starts to decrease.	AR67.10-P-1000-03P
		Repair kit for installing windshields, 1-component adhesive	*BR00.45-Z-1135-02A
14	Remove protective foil from rubber window spacers
15	Apply adhesive material	Wear cotton gloves. Ensure that no fingerprints are present in the area of the bonding surface. The bonding surface should be free of dust, oil, grease, wax and other adhesive components or dirt residues. Otherwise the adhesive force of the glue starts to decrease. Install windshield (1) within 5 min after apply adhesive. Otherwise the adhesive force of the glue starts to decrease.	AR67.10-P-1000-08P
		Repair kit for installing windshields, 1-component adhesive	*BR00.45-Z-1135-02A
		Adapter	Fig 2
16	Install windshield (1)	Move vehicle only after adhesive has dried. Observe the drying time specified by the adhesive manufacturer. To ensure sufficient strength of the adhesive. The hood must be closed.	AR67.10-P-1503-01P
	Clean
17	Remove duct tape and cover material from vehicle
18	Clean area to be repaired
19	Install rain/light sensor		AR82.30-P-7800LF
20	Install infrared camera	Model 217 with code 610 (Night view assist) Model 222 with code 610 (Night view assist) except code Z07 (B7 armoring on special protection version)	AR54.30-P-3000LF
21	Install multifunction camera	Model 222	AR54.21-P-3000LF
		Model 217 with code 487 (Active Body Control (ABC)) Model 217 with code 513 (Speed Limit Assist) Model 217 with code 608 (Automatic high beam control (IHC)) Model 217 with code 610 (Night view assist) Model 217 with code 628 (INTELLIGENT HEADLAMP CONTROL PLUS (IHC+)) Model 217 with code P20 (Driving assistant package Plus) Model 217 with code P35 (Light Package)	AR54.21-P-3000LC
22	Install detachable parts in area of windshield (1)		AR67.10-P-1050LF
	Check
23	Check Head-up display and adjust	Model 217 with code 463 (Head-up display) Model 222 with code 463 (Head-up display) except code Z07 (B7 armoring on special protection version)
			AR54.30-P-6401LF

Fig 1: Identifying Feeler Gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Adapter (000 589 86 63 00)

Courtesy of MERCEDES-BENZ USA
