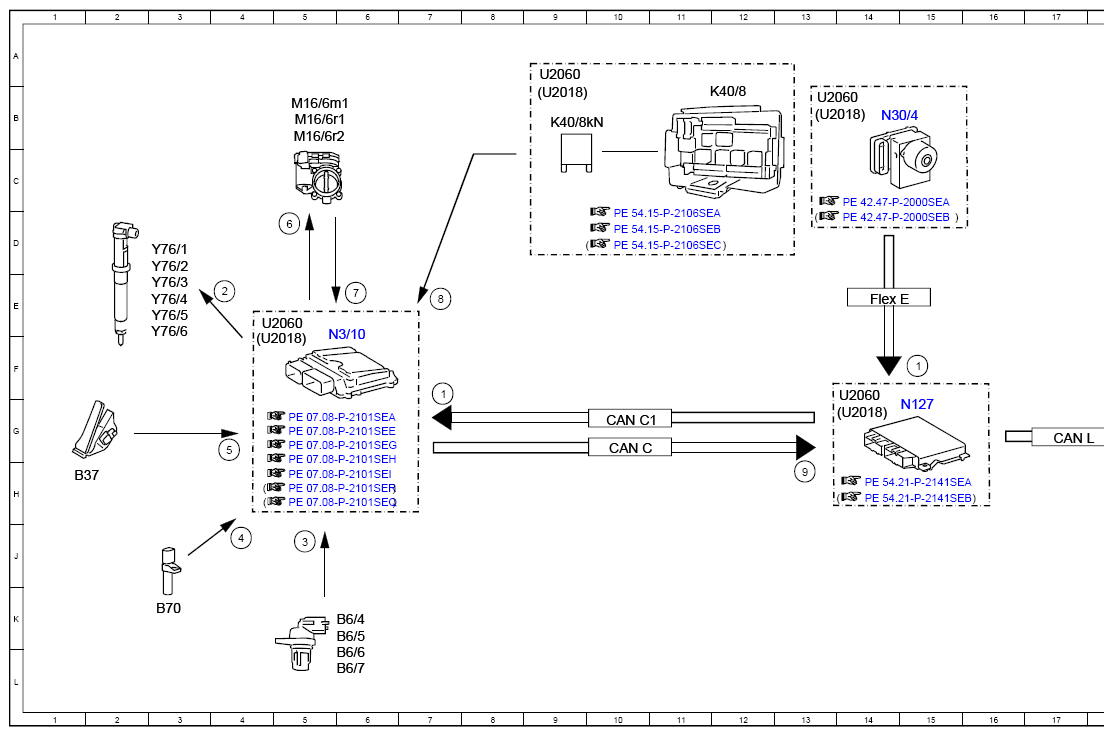

Electrical Function Schematic For Engine Limp-Home Mode - PE07.10-P-2719-97SEC
Engine 276.8 in model 217, 222
Engine 276.9 in model 222
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Service brake, status | 7F |
| 1 | Service brake, status | 15F |
| 10 | Hybrid drive system OFF, request | 19G |
| 2 | Fuel injectors, actuation | 4E |
| 3 | Camshaft Hall sensor, signal | 5J |
| 4 | Engine speed, signal | 4J |
| 5 | Accelerator pedal sensor, signal | 4G |
| 6 | Throttle valve actuator motor, actuation | 5D |
| 7 | Throttle valve position, signal | 6E |
| 8 | Circuit 87, status | 7E |
| 9 | Engine running, signal | 13H |
| B37 | Accelerator pedal sensor | 1H |
| B6/4 | Left intake camshaft Hall sensor | 6K |
| B6/5 | Right intake camshaft Hall sensor | 6K |
| B6/6 | Left exhaust camshaft Hall sensor | 6L |
| B6/7 | Right exhaust camshaft Hall sensor | 6L |
| B70 | Crankshaft Hall sensor | 3K |
| CAN C | Engine CAN | 10G |
| CAN C1 | Drive train CAN | 10G |
| CAN L | Hybrid CAN | 17G |
| Code ME04 | Mild hybrid drive | 19E |
| Code ME05 | Hybrid drive 85kW/90kW variant (incl. plug-in) | 19E |
| Flex E | Chassis FlexRay | 14E |
| K40/8 | Engine fuse and relay module | 12B |
| K40/8kN | Circuit 87M relay | 9B |
| M16/6m1 | Throttle valve actuator motor | 5B |
| M16/6r1 | Actual value potentiometer 1 | 5B |
| M16/6r2 | Actual value potentiometer 2 | 5B |
| N127 | Drivetrain control unit | 15G |
| N129/1 | Power electronics control unit | 20F |
| N3/10 | ME-SFI [ME] control unit | 6F |
| N30/4 | Electronic Stability Program control unit | 14B |
| U2018 | Valid as of model year 2018 | 13B |
| U2018 | Valid as of model year 2018 | 9B |
| U2018 | Valid as of model year 2018 | 4F |
| U2018 | Valid as of model year 2018 | 14G |
| U2018 | Valid as of model year 2018 | 21E |
| U2060 | Valid up to model year 2018 | 13B |
| U2060 | Valid up to model year 2018 | 9A |
| U2060 | Valid up to model year 2018 | 4E |
| U2060 | Valid up to model year 2018 | 14G |
| U2060 | Valid up to model year 2018 | 21E |
| Y76/1 | Cylinder 1 fuel injector | 3D |
| Y76/2 | Cylinder 2 fuel injector | 3D |
| Y76/3 | Cylinder 3 fuel injector | 3E |
| Y76/4 | Cylinder 4 fuel injector | 3E |
| Y76/5 | Cylinder 5 fuel injector | 3E |
| Y76/6 | Cylinder 6 fuel injector | 3E |
