Service Campaign 2021100013 - Update Fuel System Control Unit (FSCU) Software (2021100013)

SERVICE CAMPAIGN 2021100013 - UPDATE FUEL SYSTEM CONTROL UNIT (FSCU) SOFTWARE

SERVICE CAMPAIGN BULLETIN

SERVICE INFORMATION

IMPORTANT SERVICE CAMPAIGN INFORMATION

November, 2021

TO: ALL MERCEDES-BENZ CENTERS

SUBJECT

Model 447 Model Year 2016-2020

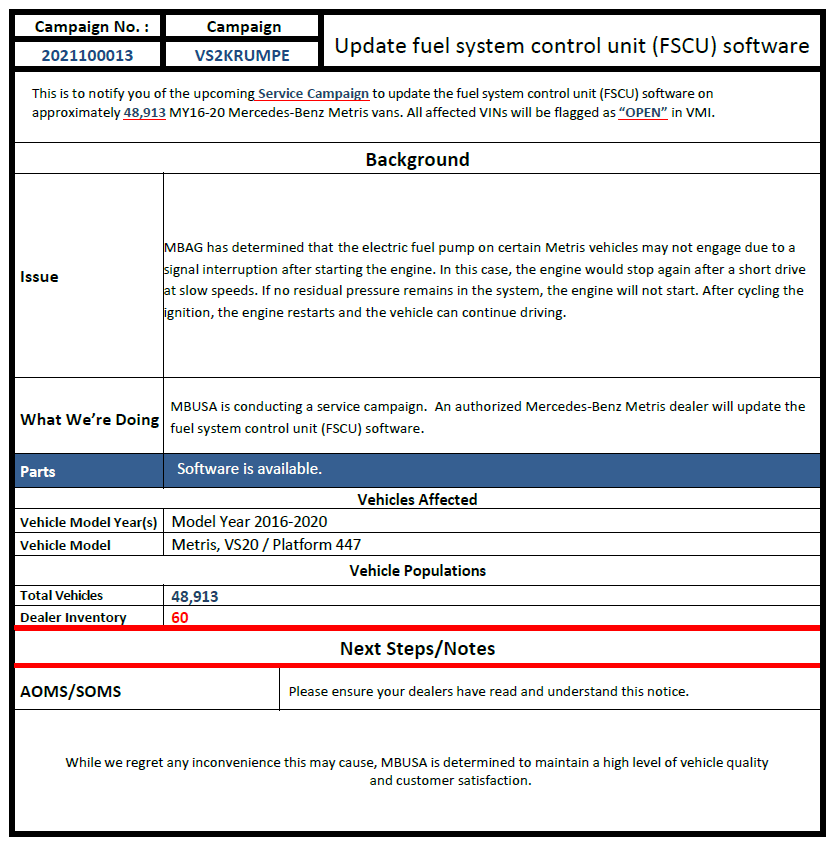

MBAG, the manufacturer of Mercedes-Benz Metris Vans, has determined that the electric fuel pump of certain VS20 vehicles with engine M274 may not start up after starting the engine due to a signal interruption. In this case, the engine would stop again after a short drive. If no residual pressure is left in the system, the engine would not start. After turning the ignition turned off and then on, the journey can be resumed without limitation.

An authorized Mercedes-Benz Metris dealer will update the fuel system control unit(FSCU) software.

Prior to performing this Service Campaign:

• Please check VMI to determine if the vehicle is involved in the Campaign and if it has been previously repaired.
• Please review the entire Service Campaign bulletin and follow the repair procedure exactly as described.

Approximately 48,913  vehicles are affected.

Order No. V-SC-2021100013

This bulletin has been created and maintained in accordance with MBUSA-SLP S423QH001, Document and Data Control, and MBUSA-SLP S424HH001, Control of Quality Records.

SM47.40-S-0007A

Update software of fuel system control unit (FSCU) (code: VS2KRUMPE)

19.10.2021

Model 447.### ## as of 000527 up to 868739 with engine 274 with code G42 (7G-TRONIC PLUS)

with code MM1 (Engine M274 DEH 20 LA 155 kW (211 hp) 5500 rpm)

Model 447.### ## as of 000527 up to 868739 with engine 274 with code G42 (7G-TRONIC PLUS)

with code MM2 (Engine M274 DEH 20 LA 135 kW (185 hp) 5500 rpm)

OPERATION NO. OF THE OPERATION TEXTS OR STANDARD TEXTS AND FLAT RATES

Category	Op. no.	Operation text	Time	Damage Code	Codeword
P	02 4762	Operations: Connect/disconnect vehicle diagnosis system (XENTRY Diagnosis)	0.1 hr	09 900 69	VS2KRUMPE
P	02 5058	Operations: Connect/disconnect starter battery charger (XENTRY Diagnosis connected)	0.1 hr	09 900 69	VS2KRUMPE
P	02 0763	Operations: Update software in fuel system control unit (FSCU) (diagnostic system connected)	0.1 hr	09 900 69	VS2KRUMPE

	Check
1	Check if vehicle is affected by measure.	Affected vehicles: Update software of fuel system control unit (FSCU) (code: VS2KRUMPE) For authorized Mercedes-Benz service partners, only the entry in the "Extended VEGA Application" (EVA) system, in the "Current" tab is decisive. An additional test of the affected vehicles in the workshop information system (WIS) or vehicle list is thereby not necessary.	SM47.40-S-0007-01AAA
	Update software
2	Install the 12 V charger.	A sufficient power supply for the on-board electrical system battery must be guaranteed throughout the entire work procedure. Otherwise there may be damage to the control units if undervoltage occurs. Follow the operating instructions for the 12 V charger. Use the 12 V charger to ensure an adequate voltage (min. 12.5 V) for the on-board electrical system battery.	AR54.10-S-1127E
3	Install vehicle diagnosis system. Service Information: Regio DVD and Retail Data Storage	If XENTRY Diagnosis is not yet attached. Always use the latest XENTRY Diagnosis software release. The operation steps in XENTRY Diagnosis must be followed precisely at all times. If XENTRY Diagnosis is already connected to vehicle, ↓ continue with operation step 4.	AD00.00-S-2000-04E SI00.01-D-0044SG
4	Update software for fuel system control unit (FSCU) (N118).	To do this, select the following menu items: Quick test view → N118 - 'Fuel system' control unit (FSCU) → Adaptations → Control units update → Updating of control unit software You are then automatically guided through the steps "Updating of control unit software"  and "Updating of SCN coding"  . The operation steps in XENTRY Diagnosis must be followed precisely at all times. After successful software update of fuel system control unit (FSCU) (N118), the following display is shown: The procedure was completed successfully.
5	Remove vehicle diagnosis system from vehicle.
6	Remove the 12 V charger from vehicle.		AR54.10-S-1127E
