Remove/Install Boost Pressure Control Pressure Transducer - AR07.17-S-7002EG
Model 447, 448 with engine 274
| Remove/install | |||
| 1 | Remove air filter housing | AR09.10-S-1150EG | |

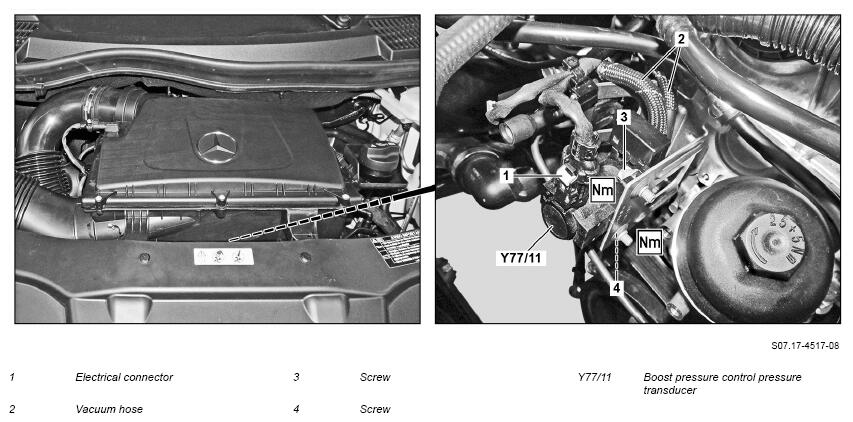

| 2 | Disconnect electrical connection (1) | ||
| 3 | Remove vacuum hoses (2) | ||
| 4 | Remove screw/bolt (3) | *BA00.10-Z-1002-01KOA | |
| 5 | Loosen screw (4) | *BA00.10-Z-1002-01KOA | |
| 6 | Remove boost pressure control pressure transducer (Y77/11) | ||
| 7 | Install in the reverse order | ||
| 8 | Read out fault memory with diagnostic system | ||
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-S-2000-04E | ||
| Check | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 9 | Check for leaktightness with engine running |
HEADLESS SCREWS/BOLTS: SCREWS/BOLTS AND NUTS, COARSE-PITCH THREAD
| Number | Designation | 8.8 | 10.9 | ||
|---|---|---|---|---|---|
| BA00.10-Z-1002-01KOA | M6 | Galvanized | Nm | 9 | 13 |
| Phosphated | Nm | 9 | 12 | ||
HEADLESS SCREWS/BOLTS: SCREWS/BOLTS AND NUTS, COARSE-PITCH THREAD
| Number | Designation | 12.9 | ||
|---|---|---|---|---|
| BA00.10-Z-1002-01KOA | M6 | Galvanized | Nm | 16 |
| Phosphated | Nm | 14 | ||
