Remove/Install Electronic Selector Lever Module (ESM) - AR27.60-P-0901MNB
Model 190
| Remove/install | |||

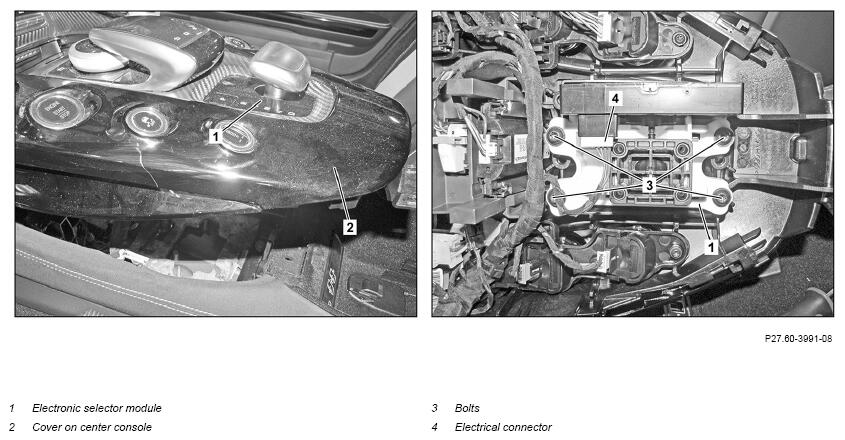

| 1 | Detach cover from center console (2) and turn over with lines connected | AR68.20-P-2350RG | |
| 2 | Remove bolts (3) | ||
| 3 | Disconnect electrical connection (4) | ||
| 4 | Remove electronic selector lever module (1) | ||
| 5 | Install in the reverse order |
