(Electric Drive Charge Level Display, Basic Function - GF47.70-P-1001A)
Electric vehicles
Overview
This document contains information on:
- General
- Function
General
The driver receives information on the state of charge of the high-voltage battery via the driver display and the operating unit.
Function
A visual display of the current state of charge of the high-voltage battery and other information is shown to the driver on both the driver display and the operating unit.
The display is similar to the fuel display in conventional vehicles and helps the driver to plan the route and, if necessary, to find a charging station in good time.

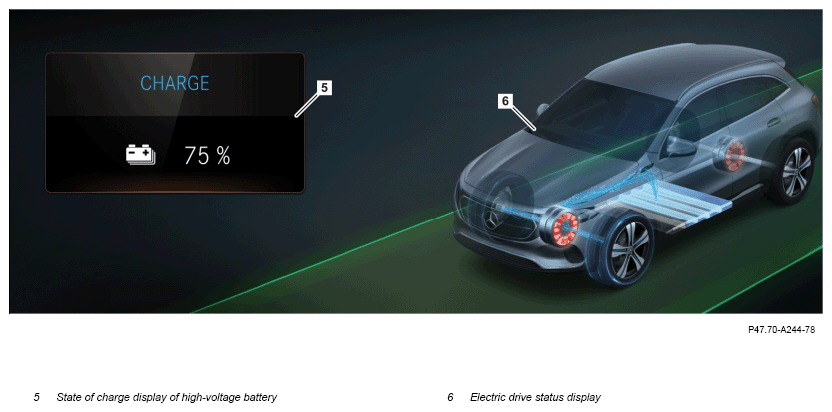

Example display valid for model 243: driver display

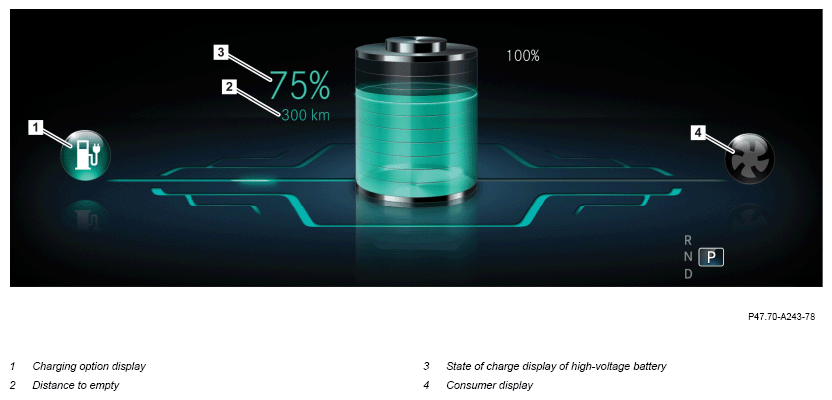

Example display valid for model 243: operating unit display
