Remove/Install Fuel Pressure Sensor - AR07.04-P-0060MNB
Engine 178 In Model 190 (Except 190.381)

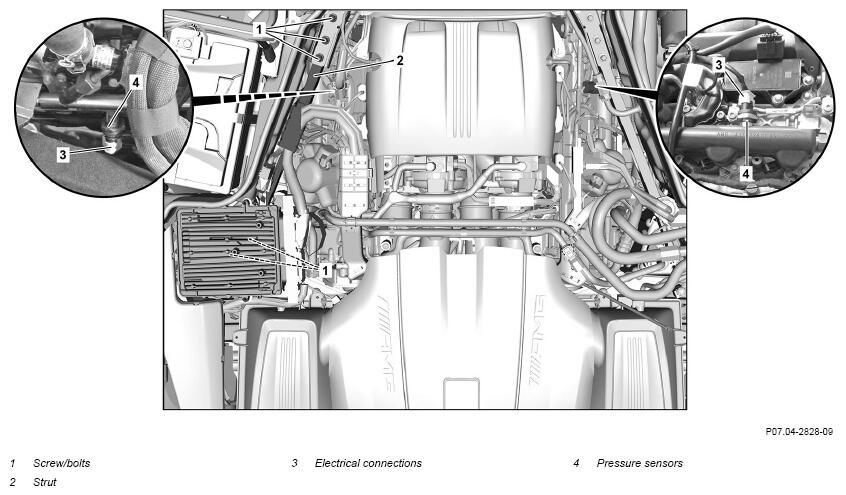

| Remove/install | |||
| 1 | Actuate KEYLESS GO start/stop button and switch off ignition | ||
| 2 | Unclip ME-SFI [ME] control unit upwards and place to one side with connected lines | When removing the right pressure sensor (4) | AR07.08-P-1000MNB |
| 3 | Detach engine wiring harness from strut (2) | ||
| 4 | Remove screw/bolts (1) and remove strut (2) | When removing the right pressure sensor (4) |
*BA62.30-P-1001-01I |
| 5 | Disconnect electrical connections (3) from pressure sensors (4) | ||
| 6 | Remove pressure sensors (4) | *BA07.52-P-1002-01J | |
| 7 | Install in the reverse order | ||
| 8 | Connect diagnostic system and read out fault memory | ||
| AD00.00-P-2000-04B | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 9 | Perform an engine test run and check engine and fuel systems for proper operation and leaktightness |
FUEL DISTRIBUTOR
| Number | Designation | Engine 178 | |
|---|---|---|---|
| BA07.52-P-1002-01J | Pressure transducer to fuel distributor | Nm | 38 |
CROSS MEMBER AND FRONT REINFORCEMENT
| Number | Designation | Model 190 | ||
|---|---|---|---|---|
| BA62.30-P-1001-01I | Bolt, strut to body/retaining plate | M8 | Nm | 30 |
