(Remove/Install Radar Sensor - AR30.30-P-1210GQ)

MODEL 166.0/.8 (except 166.874)

up to Model Year 2016

with code 233 (DISTRONIC PLUS incl. BAS Plus and PRE-SAFE® Brake)

MODEL 166.874

with code 233 (DISTRONIC PLUS)

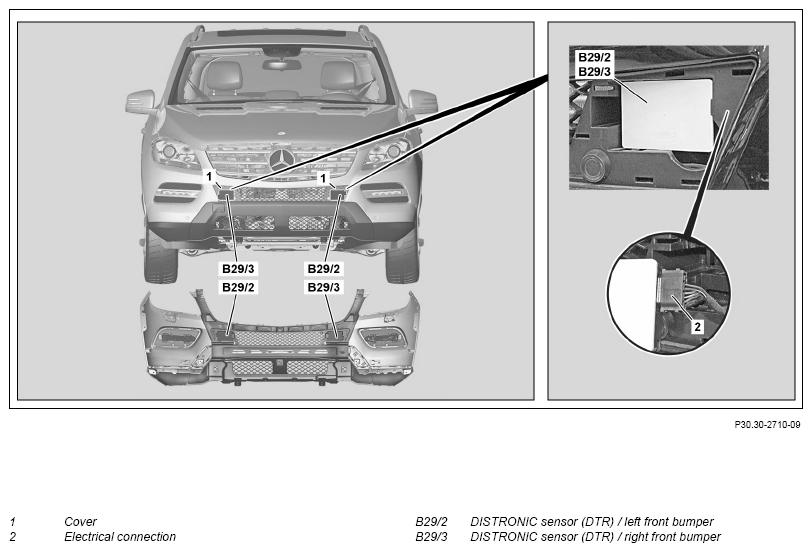

Shown on MODEL 166.024

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Switch off ignition and store transmitter key outside of transmission range (at least 2 m)
2	Remove left or right cover (1)	Mounting wedge	Fig 1
3	Remove DISTRONIC (DTR) sensor on the bumper at the front left (B292) or DISTRONIC (DTR) sensor on the bumper at the front right (B293) from the bumper	Note correct seating of the DISTRONIC (DTR) sensor on the bumper at the front left (B29/2) or the DISTRONIC (DTR) sensor on the bumper at the front right (B29/3).
4	Release and disconnect electrical connection (2)
5	Install in the reverse order
	Initial startup
6	Perform commissioning using the diagnostic system	Only when replacing the DISTRONIC (DTR) sensor on the bumper at the front left (B29/2) or DISTRONIC (DTR) sensor on the bumper at the front right (B29/3).
			AD00.00-P-2000-04A

Fig 1: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
