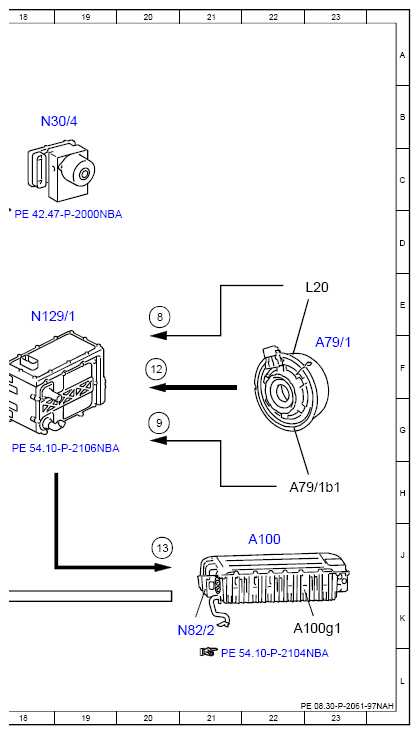

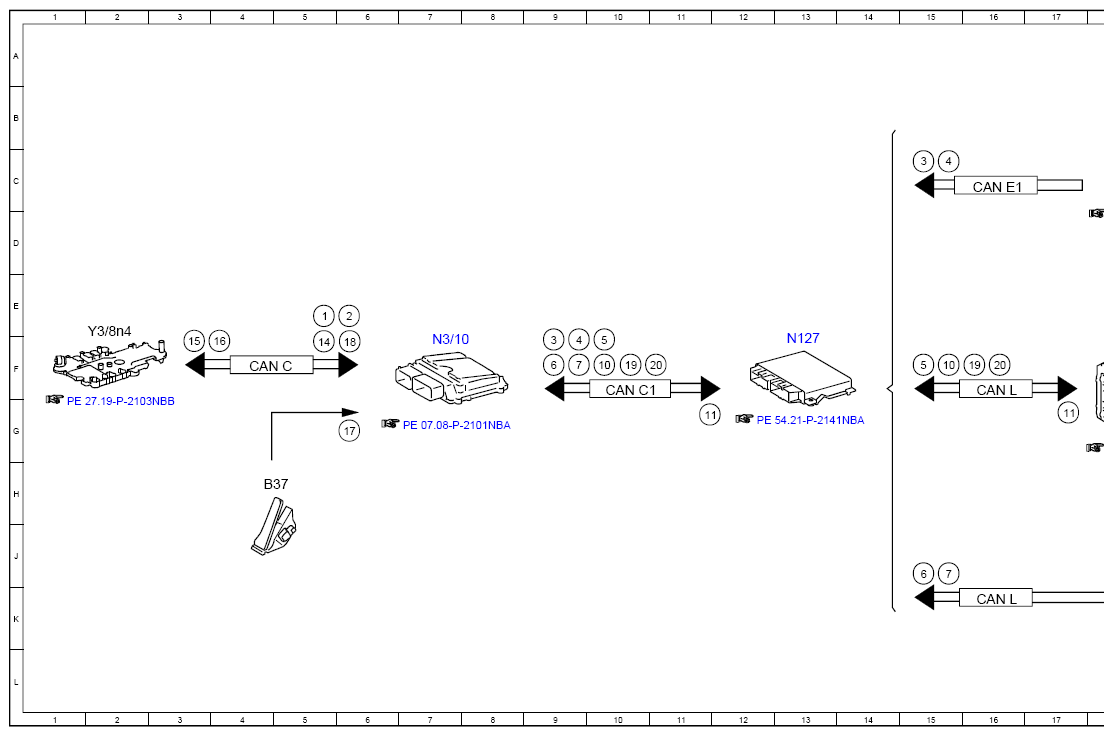

Electrical Function Schematic For Deceleration Mode - PE08.30-P-2061-97NAH
ENGINE 276.821 in MODEL 166
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Gear range, status | 5E |
| 10 | Electric machine, status | 15F |
| 10 | Electric machine, status | 10F |
| 11 | Electric machine specified torque, request | 17G |
| 11 | Electric machine specified torque, request | 11G |
| 12 | Charging current from alternator operation, energy flow | 20F |
| 13 | Charging current, energy flow | 20J |
| 14 | Wet clutch, status | 5F |
| 15 | Wet clutch, request | 3F |
| 16 | Operating mode, status | 4F |
| 17 | Accelerator pedal sensor, signal | 6G |
| 18 | Electric auxiliary oil pump, status | 6F |
| 19 | Electric machine motor torque, signal | 10F |
| 19 | Electric machine motor torque, signal | 16F |
| 2 | Gear range, status | 6E |
| 20 | Electric machine generative torque, signal | 11F |
| 20 | Electric machine generative torque, signal | 16F |
| 3 | Service brake, status | 15C |
| 3 | Service brake, status | 9F |
| 4 | Wheel speed, signal | 15C |
| 4 | Wheel speed, signal | 9F |
| 5 | Tolerable charging voltage/current, signal | 15F |
| 5 | Tolerable charging voltage/current, signal | 10F |
| 6 | High-voltage battery voltage, signal | 15J |
| 6 | High-voltage battery voltage, signal | 9F |
| 7 | High-voltage battery temperature, signal | 15J |
| 7 | High-voltage battery temperature, signal | 9F |
| 8 | Electric machine rpm, signal | 20E |
| 9 | Electric machine temperature, signal | 20G |
| A100 | High-voltage battery module | 22J |
| A100g1 | High-voltage battery | 23K |
| A79/1 | Electric machine | 23F |
| A79/1b1 | Electric machine temperature sensor | 22H |
| B37 | Accelerator pedal sensor | 4H |
| CAN C | Drive train CAN | 4F |
| CAN C1 | Engine CAN | 10F |
| CAN E1 | Chassis CAN 1 | 16C |
| CAN L | Hybrid CAN | 16F |
| CAN L | Hybrid CAN | 16K |
| L20 | Electric machine rotor position sensor | 23E |
| N127 | Drivetrain control unit | 13F |
| N129/1 | Power electronics control unit | 18E |
| N3/10 | ME-SFI [ME] control unit | 7F |
| N30/4 | Electronic Stability Program control unit | 18B |
| N82/2 | Battery management system control unit | 21K |
| Y3/8n4 | Fully integrated transmission control control unit | 2E |
