Overview Of System Components For Theft Protection And Locking - GF80.00-P-9999GN
Model 166
as of Model year 2016
Model 292

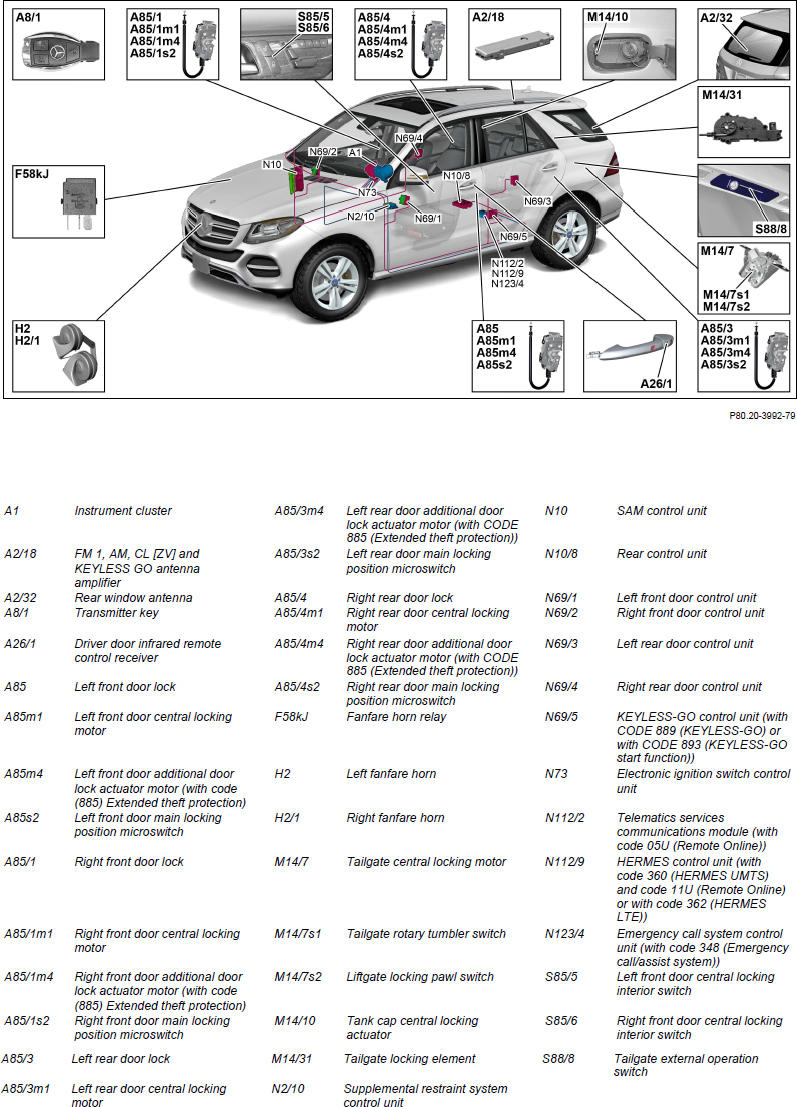

Central locking (CL [ZV]), shown on Model 166.0

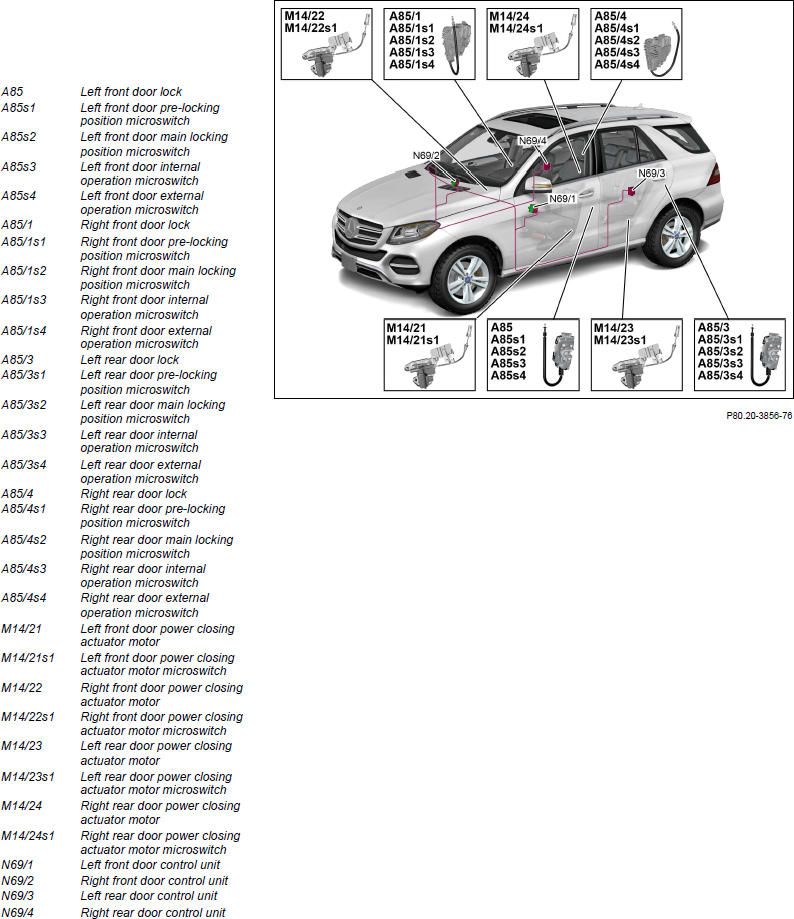

CL [ZV], power closing subfunction (with code 883 (Power closing)), shown on Model 166.0

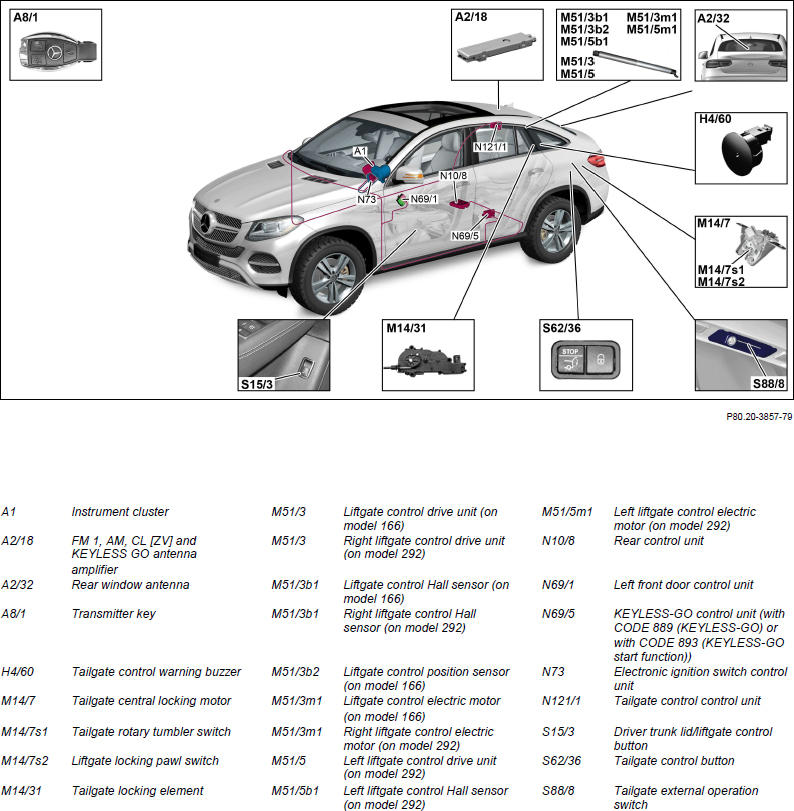

Liftgate control (with code 890 (EASY-PACK liftgate)), shown on Model 292

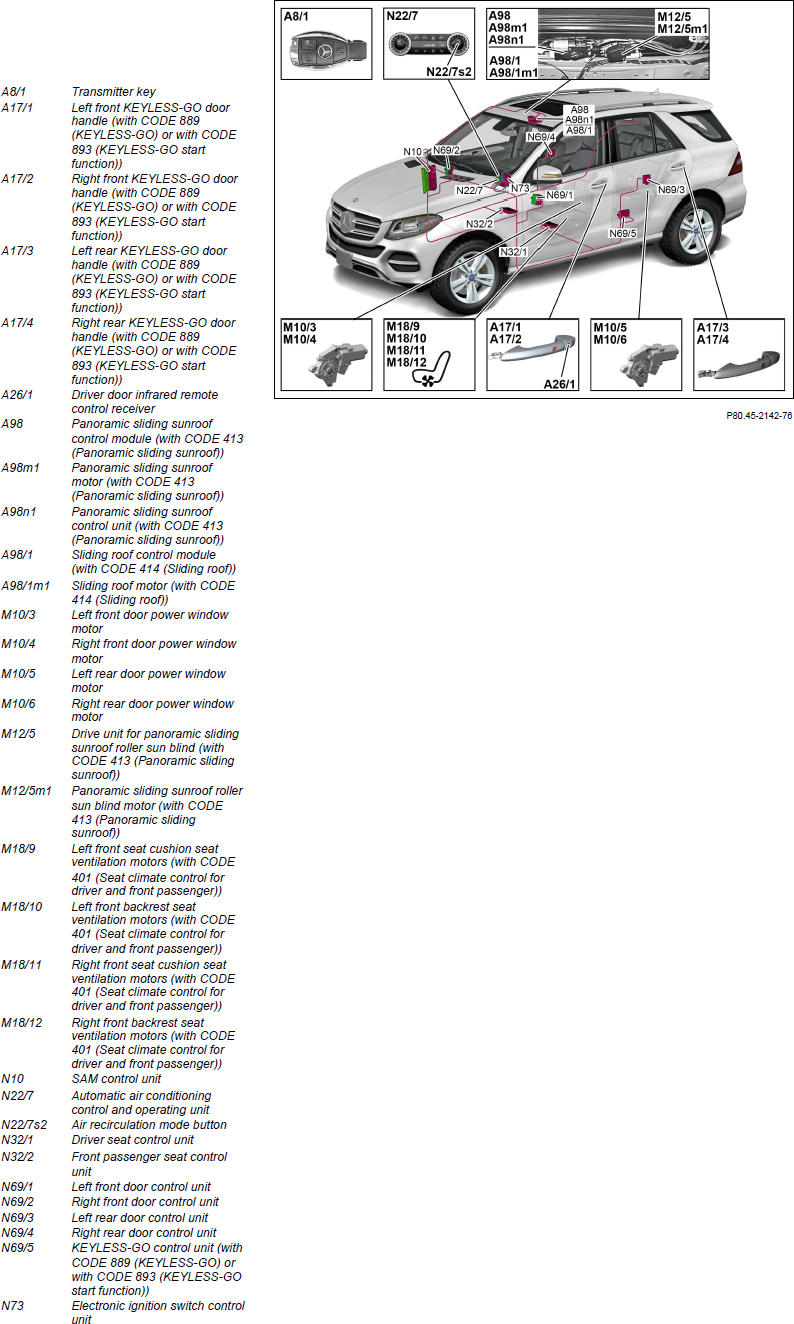

Convenience feature (CF [KFB]), Model 166.0, shown with CODE 275 (Memory package)

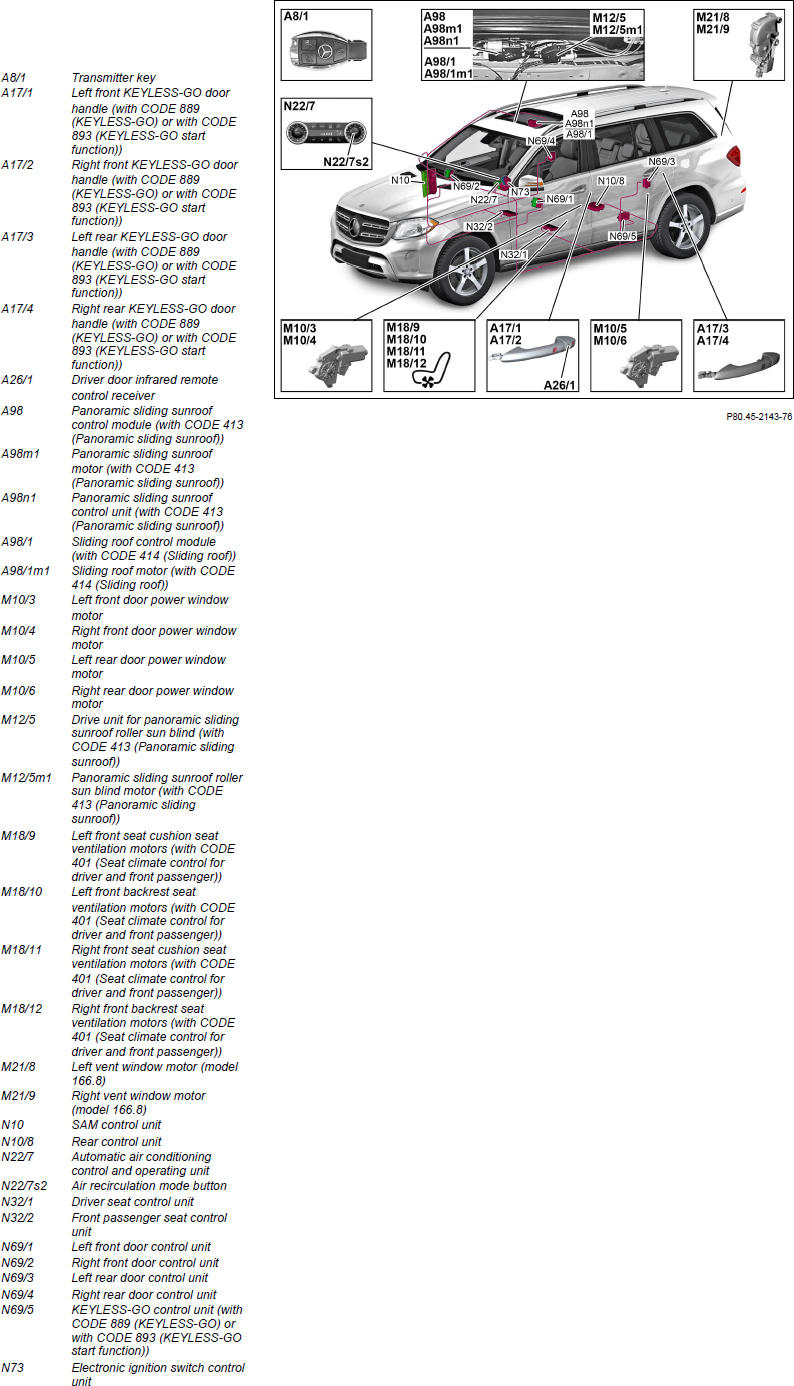

Convenience feature (CF [KFB]), shown on Model 166.8

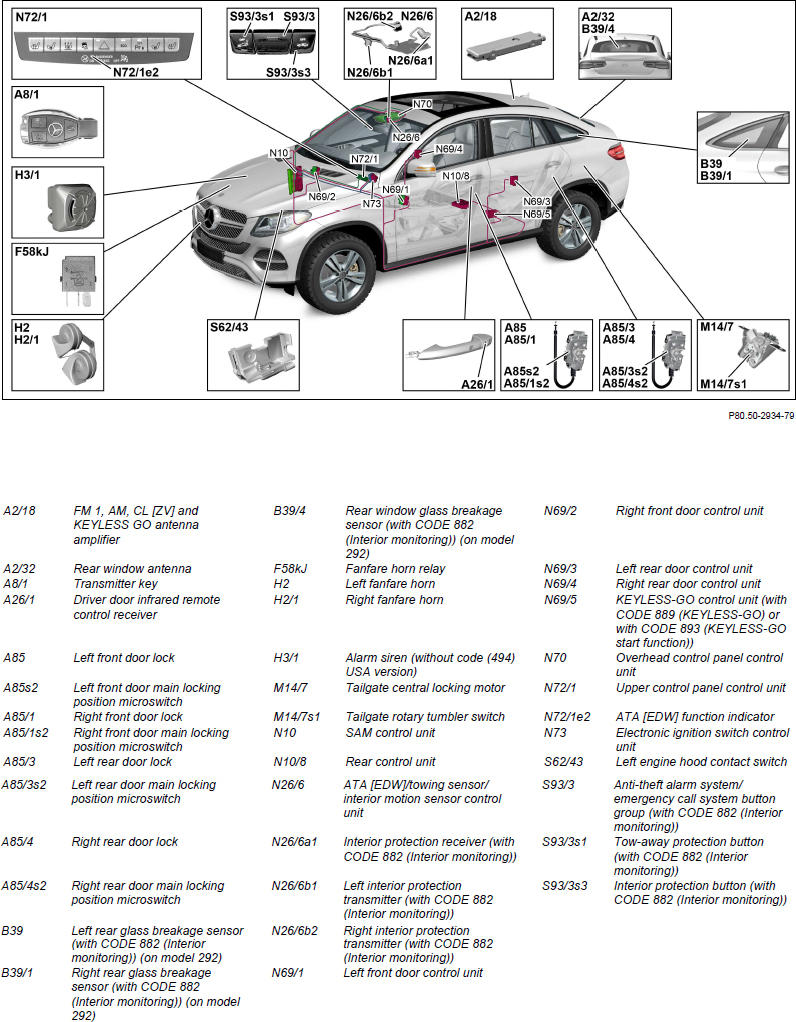

Anti-theft alarm system (ATA [EDW]) (with code 551 (Anti-theft alarm system (ATA [EDW]))), shown on Model 292

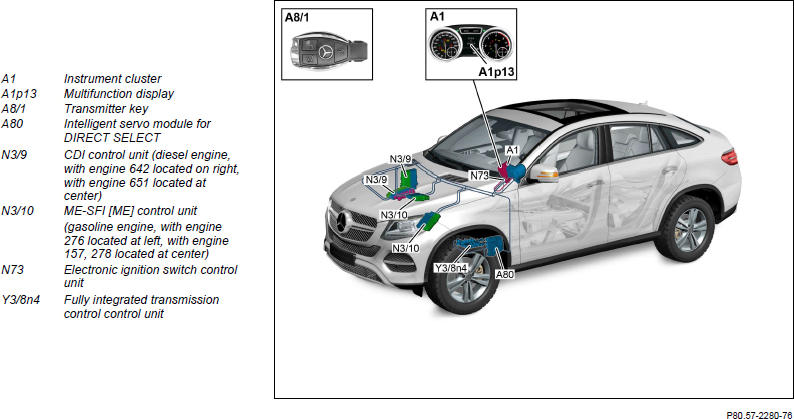

Drive authorization system stage 4 (DAS 4), shown on Model 292

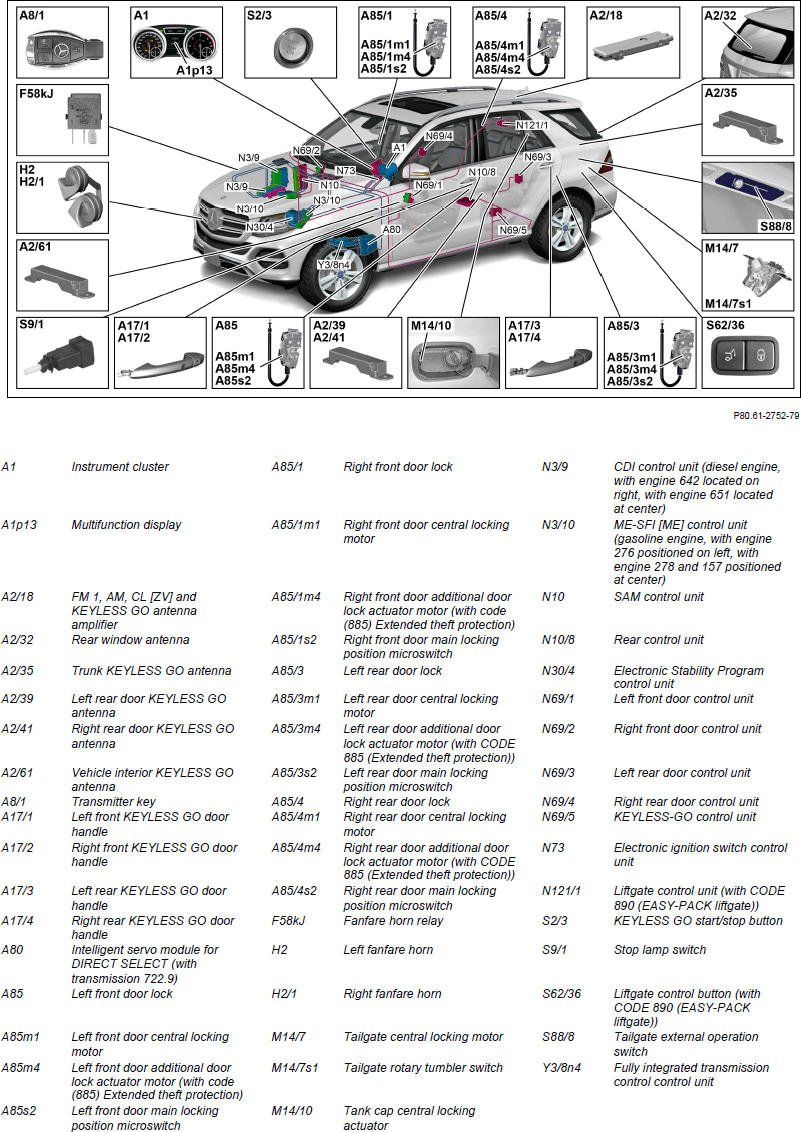

KEYLESS-GO (with code 889 (KEYLESS-GO) or with code 893 (KEYLESS-GO start function)), shown on Model 166.0
| Component description for instrument cluster | A1 | GF54.30-P-6000GN | |
| Component description for intelligent servo module for DIRECT SELECT | Model 166 with transmission 722.905 as of Model year 2016 Model 292 with transmission 722.905 A80 |
GF27.19-P-4020ANN | |
| Component description for panoramic sliding roof control module | Model 166 as of Model year 2016 with code 413 (Automatic panoramic sliding sunroof) Model 292 with code 413 (Automatic panoramic sliding sunroof) A98, A98n1 |
GF77.20-P-4106GN | |
| Component description for sliding roof control module | Model 166 as of Model year 2016 with code 414 (Sliding sunroof) A98/1 |
GF77.20-P-4108GN | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080GN | |
| Component description for CDI control unit | Model 166 with engine 642.8 as of Model year 2016 Model 292 with engine 642.8 N3/9 |
GF07.16-P-6000OGF | |
| Model 166 with engine 651.9 as of 6/1/15 as of Model year 2016 N3/9 |
GF07.16-P-6000OLF | ||
| Component description for ME-SFI (ME) control unit | Model 166.063 with engine 276.8 as of Model year 2016 N3/10 |
GF07.61-P-6000MMM | |
| Model 166 (except 166.063) with engine 276.8 as of Model year 2016 Model 292 with engine 276.8 N3/10 |
GF07.61-P-6000MMX | ||
| Model 166 with engine 157.9, 278.9 as of Model year 2016 Model 292 with engine 157.9, 278.9 N3/10 |
GF07.61-P-6000MMY | ||
| SAM control unit, component description | N10 | GF54.21-P-4157GN | |
| Rear control unit, component description | N10/8 | GF54.21-P-4134GN | |
| Component description for climate control control and operating unit | N22/7 | GF83.40-P-3002GN | |
| ATA/tow-away protection/interior protection control unit, component description | Model 166 as of Model year 2016 with code 551 (Anti-theft warning system) Model 292 with code 551 (Anti-theft warning system) N26/6 |
GF80.50-P-4131GN | |
| Component description for Electronic Stability Program control unit | Model 166 (except 166.063) as of Model year 2016 Model 292 N30/4 |
GF42.45-P-5119GN | |
| Component description for driver seat control unit | Model 166 as of Model year 2016 with code 275 (Memory package) Model 292 with code 275 (Memory package) N32/1 Model 166 |
GF91.29-P-5231GN | |
| as of Model year 2016 except code 275 (Memory package) Model 292 except code 275 (Memory package) N32/1 |
GF91.29-P-5231GNA | ||
| Component description for front passenger seat control unit | Model 166 as of Model year 2016 with code P64 (Memory package) Model 292 with code P64 (Memory package) N32/2 Model 166 |
GF91.29-P-5241GN | |
| as of Model year 2016 except code P64 (Memory package) Model 292 except code P64 (Memory package) N32/2 |
GF91.29-P-5241GNA | ||
| Component description for left front door | N69/1 | GF72.29-P-6001GN | |
| control unit | |||
| Component description for right front door control unit | N69/2 | GF72.29-P-6009GN | |
| Component description for rear door control unit | N69/3, N69/4 | GF72.29-P-6021GN | |
| Component description for KEYLESS-GO control unit | Model 166 as of Model year 2016 with code 889 (KEYLESS-GO) Model 166 as of Model year 2016 with code 893 (KEYLESS-GO) Model 292 with code 889 (KEYLESS-GO) Model 292 with code 893 (KEYLESS-GO) N69/5 |
GF80.61-P-4204GN | |
| Component description for overhead control panel control unit | N70 | GF82.20-P-5216GN | |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040GN | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001GN | |
| Telematics services communications module, component description | Model 166 as of Model year 2016 up to Model year 2017 with code 05U (Remote On-line) Model 292 up to Model year 2017 with code 05U (Remote On-line) N112/2 |
GF82.85-P-0220GN | |
| HERMES control unit, component description | Model 166 as of Model year 2016 with code 360 (HERMES UMTS) Model 166 as of Model year 2016 with code 362 (HERMES LTE) Model 292 with code 360 (HERMES UMTS) Model 292 with code 362 (HERMES LTE) N112/9 |
GF82.85-P-0221GN | |
| Liftgate control unit, component description | Model 166 as of Model year 2016 with code 890 (EASY-PACK-tailgate) Model 292 with code 890 (EASY-PACK-tailgate) N121/1 |
GF80.20-P-6082GN | |
| Component description for emergency call system control unit | Model 166 as of Model year 2016 up to Model year 2017 with code 348 (Emergency call/assistant system) Model 292 up to Model year 2017 with code 348 (Emergency call/assistant system) N123/4 |
GF82.95-P-3212GNU | |
| Component description for fully integrated transmission control unit | Model 292 with transmission 725.0 Y3/8n4 | GF27.60-P-5165ANJ | |
| Table of contents for function description of theft protection and locking | GF80.00-P-0999GN |
