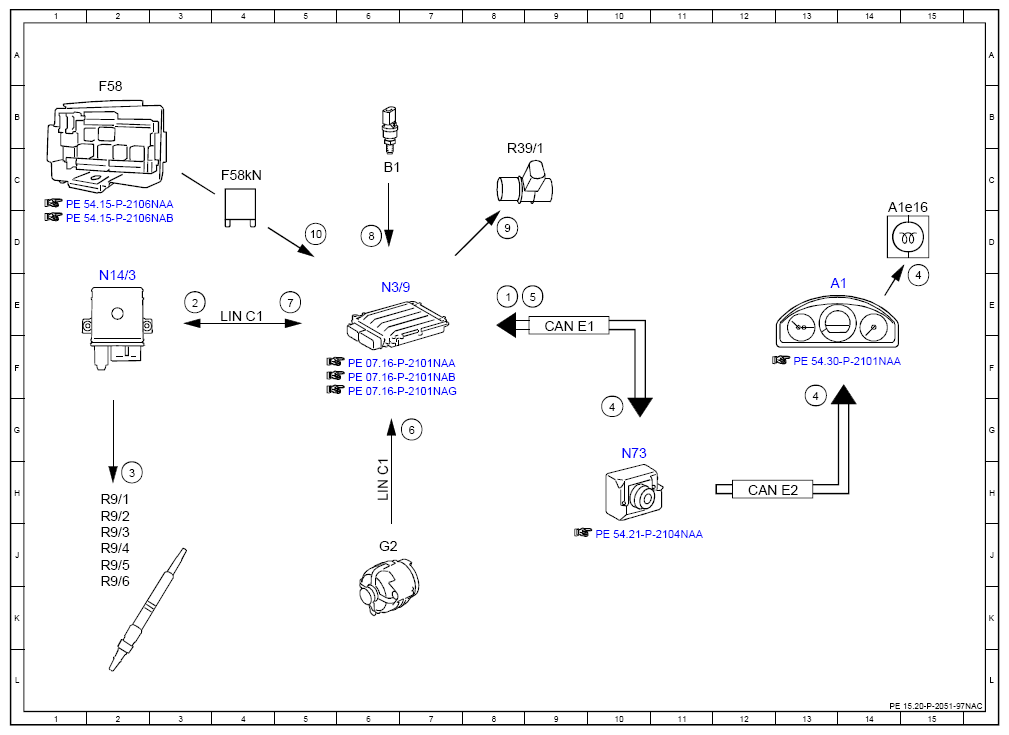

Electrical Function Schematic For Preheating - PE15.20-P-2051-97NAC
ENGINE 642.8 in MODEL 166 up to model year 2016
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status ON | 8E |
| 10 | Circuit 87, status | 5D |
| 2 | Glow, request | 3E |
| 3 | Glow plugs, actuation | 2H |
| 4 | Preglow indicator lamp, actuation | 13G |
| 4 | Preglow indicator lamp, actuation | 15E |
| 4 | Preglow indicator lamp, actuation | 10G |
| 5 | Circuit 50, status | 9E |
| 6 | Circuit 61, status | 7G |
| 7 | Glow output stage, status | 5E |
| 8 | Oil temperature sensor, signal | 6D |
| 9 | Vent line heater element, actuation | 8D |
| A1 | Instrument cluster | 13E |
| A1e16 | Preglow indicator lamp | 14D |
| B1 | Engine oil temperature sensor | 6C |
| CAN E1 | Chassis CAN 1 | 9E |
| CAN E2 | Chassis CAN 2 | 12H |
| F58 | Engine compartment fuse and relay module | 2B |
| F58kN | Circuit 87M relay | 4C |
| G2 | Alternator | 6J |
| LIN C1 | Drive train LIN | 6H |
| LIN C1 | Drive train LIN | 4E |
| N14/3 | Glow output stage | 2E |
| N3/9 | CDI control unit | 6E |
| N73 | Electronic ignition switch control unit | 10G |
| R39/1 | Vent line heater element | 8C |
| R9/1 | Cylinder 1 glow plug | 2H |
| R9/2 | Cylinder 2 glow plug | 2H |
| R9/3 | Cylinder 3 glow plug | 2J |
| R9/4 | Cylinder 4 glow plug | 2J |
| R9/5 | Cylinder 5 glow plug | 2J |
| R9/6 | Cylinder 6 glow plug | 2J |
