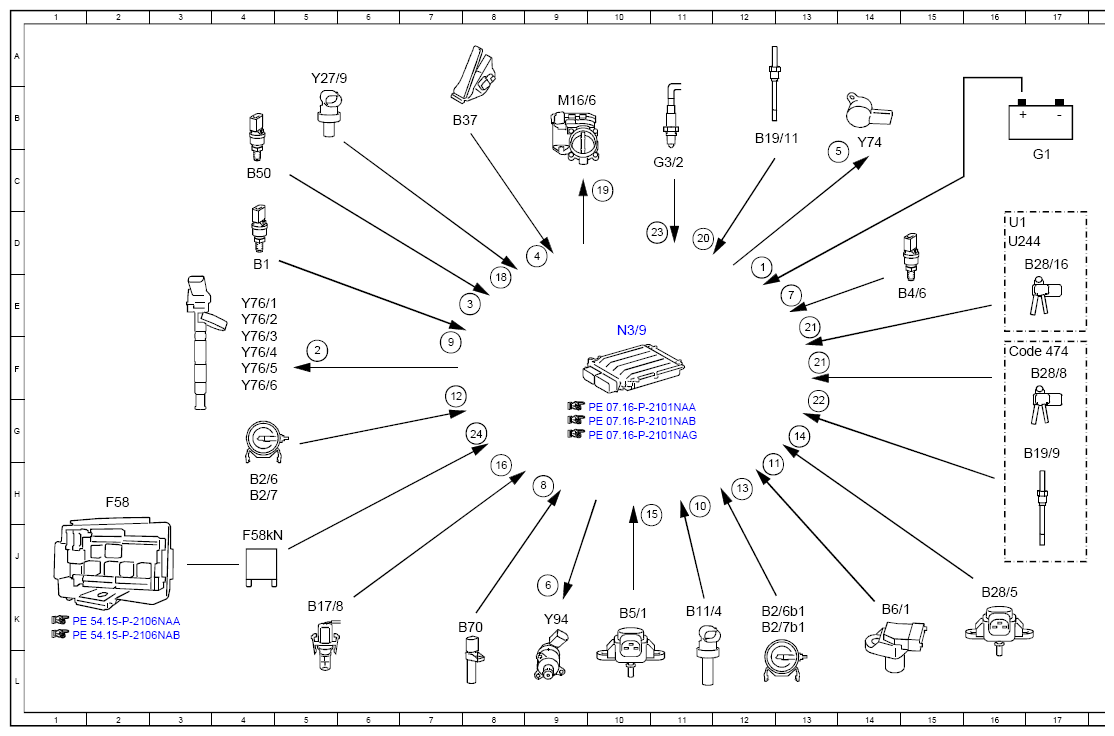

Electrical Function Diagram For Injection Control - PE07.10-P-2704-97NAC
ENGINE 642.8 in MODEL 166 up to model year 2016
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 30, status | 12D |
| 10 | Coolant temperature sensor, signal | 11H |
| 11 | Camshaft Hall sensor, signal | 12H |
| 12 | Engine load, signal | 7G |
| 13 | Intake air temperature sensor, signal | 12H |
| 14 | Pressure sensor downstream of air filter, signal | 13G |
| 15 | Boost pressure, signal | 10H |
| 16 | Charge air temperature sensor, signal | 8H |
| 18 | Exhaust gas recirculation actuator, actuation | 8E |
| 19 | Throttle valve actuator, actuation | 10C |
| 2 | Fuel injectors, actuation | 5F |
| 20 | Temperature sensor upstream of turbocharger, signal | 11D |
| 21 | Differential pressure sensor (DPF), signal | 13F |
| 21 | Differential pressure sensor (DPF), signal | 13E |
| 22 | Temperature sensor upstream of diesel particulate filter, signal | 13G |
| 23 | Oxygen sensor, signal | 11D |
| 24 | Circuit 87, status | 8G |
| 3 | Fuel temperature, signal | 8E |
| 4 | Accelerator pedal sensor, signal | 9D |
| 5 | Pressure regulator valve, actuation | 13C |
| 6 | Quantity control valve, actuation | 9K |
| 7 | Fuel pressure, signal | 13E |
| 8 | Engine speed, signal | 9H |
| 9 | Oil temperature sensor, signal | 7F |
| B1 | Engine oil temperature sensor | 4D |
| B11/4 | Coolant temperature sensor | 11K |
| B17/8 | Charge air temperature sensor | 5K |
| B19/11 | Temperature sensor upstream of turbocharger | 12B |
| B19/9 | Temperature sensor upstream of diesel particulate filter | 17G |
| B2/6 | Left hot film MAF sensor | 4H |
| B2/6b1 | Left intake air temperature sensor | 12K |
| B2/7 | Right hot film MAF sensor | 4H |
| B2/7b1 | Right intake air temperature sensor | 12K |
| B28/16 | Differential pressure sensor/diesel particulate filter for onboard diagnostics (OBD) | 17D |
| B28/5 | Pressure sensor downstream of air filter | 16K |
| B28/8 | Differential pressure sensor (DPF) | 17F |
| B37 | Accelerator pedal sensor | 7B |
| B4/6 | Fuel high-pressure sensor | 14E |
| B5/1 | Boost pressure sensor | 10K |
| B50 | Fuel temperature sensor | 4C |
| B6/1 | Camshaft Hall sensor | 14K |
| B70 | Crankshaft Hall sensor | 7K |
| Code 474 | Diesel particulate filter | 16F |
| F58 | Engine compartment fuse and relay module | 2H |
| F58kN | Circuit 87M relay | 4J |
| G1 | On-board electrical system battery | 17C |
| G3/2 | Oxygen sensor upstream of catalytic converter | 11C |
| M16/6 | Throttle valve actuator | 9B |
| N3/9 | CDI control unit | 10E |
| U1 | Valid for USA | 16D |
| U244 | Valid for BlueTEC | 16D |
| Y27/9 | Exhaust gas recirculation actuator | 5A |
| Y74 | Pressure regulator valve | 14B |
| Y76/1 | Cylinder 1 fuel injector | 4E |
| Y76/2 | Cylinder 2 fuel injector | 4E |
| Y76/3 | Cylinder 3 fuel injector | 4F |
| Y76/4 | Cylinder 4 fuel injector | 4F |
| Y76/5 | Cylinder 5 fuel injector | 4F |
| Y76/6 | Cylinder 6 fuel injector | 4F |
| Y94 | Quantity control valve | 9K |
