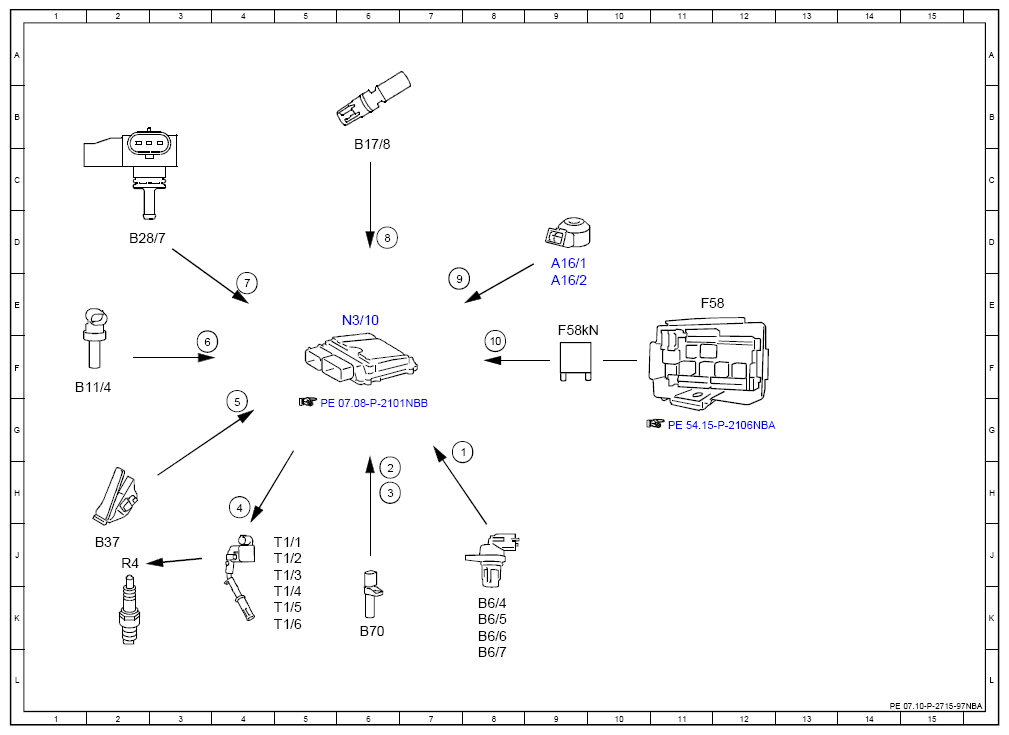

Electrical Function Schematic For Knock Control - PE07.10-P-2715-97NBG
ENGINE 276.9 in MODEL 166 as of model year 2016
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Intake manifold intake air temperature sensor, signal | 8G |
| 10 | Intake air temperature sensor, signal | 7E |
| 11 | Circuit 87, status | 8F |
| 2 | Camshaft Hall sensor, signal | 7G |
| 3 | Engine speed, signal | 6H |
| 4 | Crankshaft Hall sensor, signal | 6H |
| 5 | Ignition coils, actuation | 4H |
| 6 | Knock sensor, signal | 4G |
| 7 | Coolant temperature sensor, signal | 3F |
| 8 | Engine load, signal | 4E |
| 9 | Accelerator pedal sensor, signal | 6D |
| A16/1 | Knock sensor 1 | 2H |
| A16/2 | Knock sensor 2 | 2H |
| B11/4 | Coolant temperature sensor | 1F |
| B17 | Intake air temperature sensor | 8B |
| B17/1 | Intake manifold intake air temperature sensor | 9H |
| B28/7 | Pressure sensor downstream of throttle valve | 2C |
| B37 | Accelerator pedal sensor | 5B |
| B6/4 | Left intake camshaft Hall sensor | 8K |
| B6/5 | Right intake camshaft Hall sensor | 8K |
| B6/6 | Left exhaust camshaft Hall sensor | 8K |
| B6/7 | Right exhaust camshaft Hall sensor | 8L |
| B70 | Crankshaft Hall sensor | 6K |
| F58 | Engine compartment fuse and relay module | 12E |
| F58kN | Circuit 87M relay | 10E |
| N3/10 | ME-SFI [ME] control unit | 6E |
| R4 | Spark plugs | 2J |
| T1/1 | Cylinder 1 ignition coil | 4J |
| T1/2 | Cylinder 2 ignition coil | 4J |
| T1/3 | Cylinder 3 ignition coil | 4J |
| T1/4 | Cylinder 4 ignition coil | 4J |
| T1/5 | Cylinder 5 ignition coil | 4K |
| T1/6 | Cylinder 6 ignition coil | 4K |
