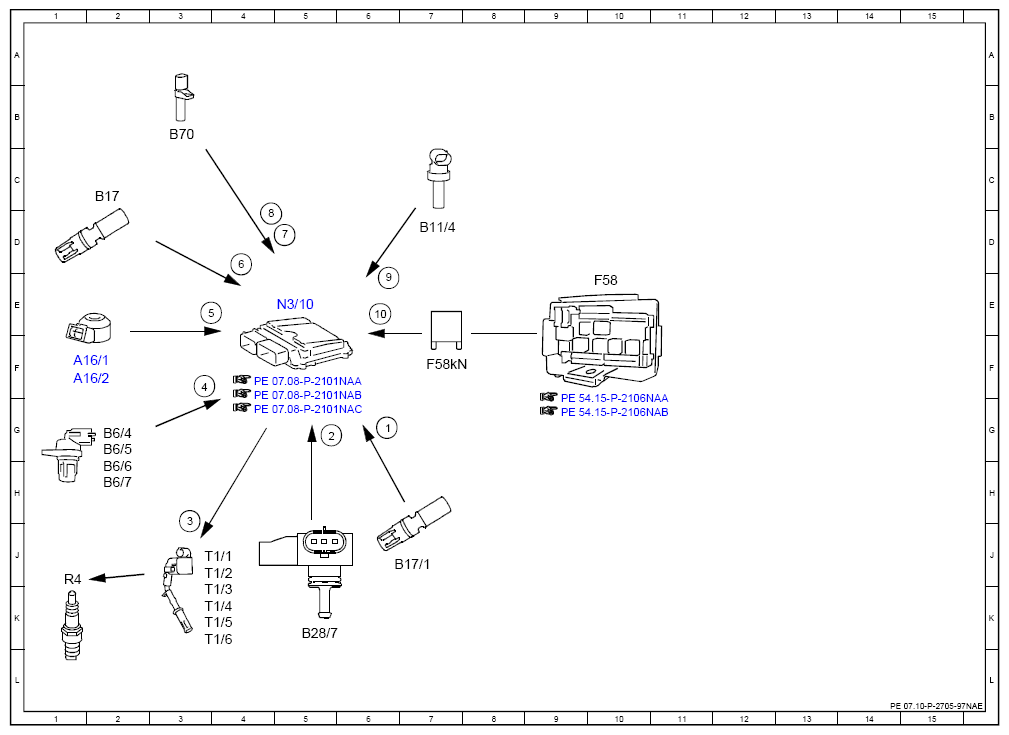

Electrical Function Schematic For Ignition System - PE07.10-P-2705-97NAE
ENGINE 276.9 in MODEL 166 up to model year 2016
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Intake manifold intake air temperature sensor, signal | 6G |
| 10 | Circuit 87, status | 6E |
| 2 | Engine load, signal | 5G |
| 3 | Ignition coils, actuation | 3J |
| 4 | Camshaft Hall sensor, signal | 3F |
| 5 | Knock sensor, signal | 3E |
| 6 | Intake air temperature sensor, signal | 4D |
| 7 | Engine speed, signal | 5D |
| 8 | Crankshaft Hall sensor, signal | 4D |
| 9 | Coolant temperature sensor, signal | 6E |
| A16/1 | Knock sensor 1 | 1F |
| A16/2 | Knock sensor 2 | 1F |
| B11/4 | Coolant temperature sensor | 7D |
| B17 | Intake air temperature sensor | 2C |
| B17/1 | Intake manifold intake air temperature sensor | 6J |
| B28/7 | Pressure sensor downstream of throttle valve | 5K |
| B6/4 | Left intake camshaft Hall sensor | 2G |
| B6/5 | Right intake camshaft Hall sensor | 2G |
| B6/6 | Left exhaust camshaft Hall sensor | 2H |
| B6/7 | Right exhaust camshaft Hall sensor | 2H |
| B70 | Crankshaft Hall sensor | 3B |
| F58 | Engine compartment fuse and relay module | 10E |
| F58kN | Circuit 87M relay | 7F |
| N3/10 | ME-SFI [ME] control unit | 5E |
| R4 | Spark plugs | 1J |
| T1/1 | Cylinder 1 ignition coil | 3J |
| T1/2 | Cylinder 2 ignition coil | 3J |
| T1/3 | Cylinder 3 ignition coil | 3K |
| T1/4 | Cylinder 4 ignition coil | 3K |
| T1/5 | Cylinder 5 ignition coil | 3K |
| T1/6 | Cylinder 6 ignition coil | 3K |
