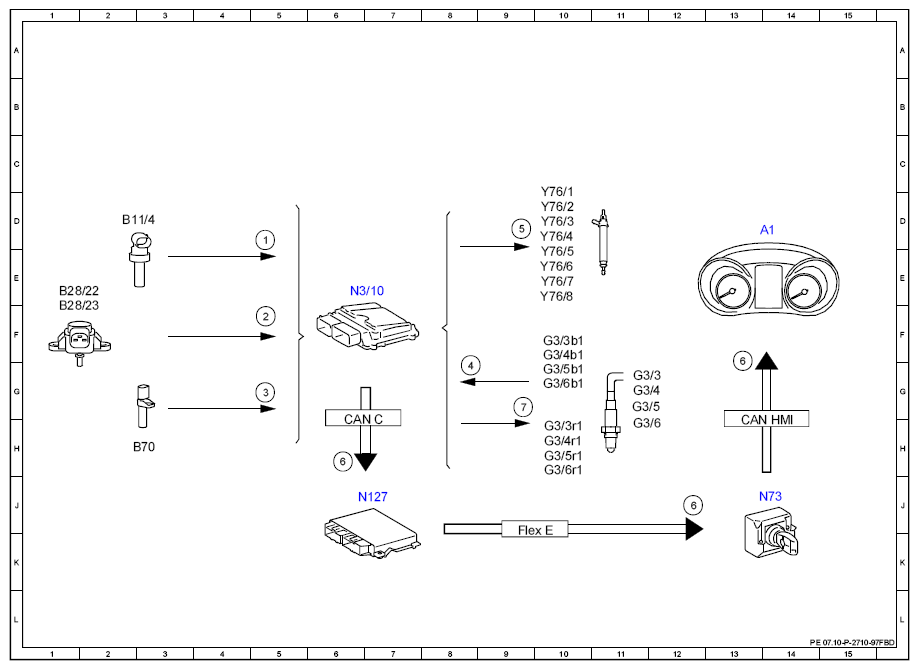

Electrical Function Schematic For Lambda Control - PE07.10-P-2710-97FBD
Engine 177.9 in model 205, 253
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Coolant temperature sensor, signal | 5D |
| 2 | Pressure sensor downstream of throttle valve, signal | 5F |
| 3 | Crankshaft Hall sensor, signal | 5G |
| 4 | Oxygen sensor, sensor element, signal | 8G |
| 5 | Fuel injectors, actuation | 9D |
| 6 | Instrument cluster message, request | 12J |
| 6 | Instrument cluster message, request | 13G |
| 6 | Instrument cluster message, request | 6H |
| 7 | Oxygen sensor heater, actuation | 9G |
| A1 | Instrument cluster | 14D |
| B11/4 | Coolant temperature sensor | 2D |
| B28/22 | Left pressure sensor downstream of throttle valve | 1E |
| B28/23 | Right pressure sensor downstream of throttle valve | 1F |
| B70 | Crankshaft Hall sensor | 3H |
| CAN C | Engine CAN | 6H |
| CAN HMI | User interface CAN | 13H |
| Flex E | Chassis FlexRay | 9K |
| G3/3 | Left oxygen sensor upstream of catalytic converter | 11G |
| G3/3b1 | Left oxygen sensor element upstream of catalytic converter | 10F |
| G3/3r1 | Left oxygen sensor heater upstream of catalytic converter | 10H |
| G3/4 | Right oxygen sensor upstream of catalytic converter | 11G |
| G3/4b1 | Right oxygen sensor element upstream of catalytic converter | 10F |
| G3/4r1 | Right oxygen sensor heater upstream of catalytic converter | 10H |
| G3/5 | Left oxygen sensor downstream of catalytic converter | 11G |
| G3/5b1 | Left oxygen sensor element downstream of catalytic converter | 10G |
| G3/5r1 | Left oxygen sensor heater downstream of catalytic converter | 10H |
| G3/6 | Right oxygen sensor downstream of catalytic converter | 11H |
| G3/6b1 | Right oxygen sensor element downstream of catalytic converter | 10G |
| G3/6r1 | Right oxygen sensor heater downstream of catalytic converter | 10H |
| N127 | Drivetrain control unit | 7J |
| N3/10 | ME-SFI [ME] control unit | 6E |
| N73 | Electronic ignition switch control unit | 14J |
| Y76/1 | Cylinder 1 fuel injector | 10D |
| Y76/2 | Cylinder 2 fuel injector | 10D |
| Y76/3 | Cylinder 3 fuel injector | 10D |
| Y76/4 | Cylinder 4 fuel injector | 10D |
| Y76/5 | Cylinder 5 fuel injector | 10E |
| Y76/6 | Cylinder 6 fuel injector | 10E |
| Y76/7 | Cylinder 7 fuel injector | 10E |
| Y76/8 | Cylinder 8 fuel injector | 10E |
