Remove/install side deployment pressure sensor - AR91.60-P-0760EC

MODEL 207

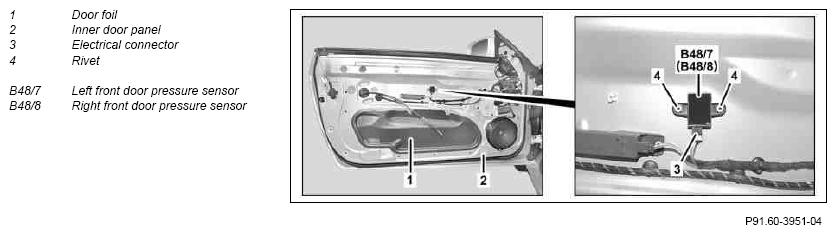

Fig 1: Identifying Side Deployment Pressure Sensor Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Remove door foil (1) on left and right front door		AR72.10-P-1010EC
2	Disconnect electrical connector (3) from left front door pressure sensor (B48/7) and right front door pressure sensor (B48/8)
3	Drill out rivets (4) from left front door pressure sensor (B48/7) and right front door pressure sensor (B48/8)	Attach left front door pressure sensor (B48/7) and right front door pressure sensor (B48/8) to inner door panel (2) using new rivets (4). Rechargeable drill/screwdriver Hand riveting tool
4	Detach left front door pressure sensor (B48/7) or right front door pressure sensor (B48/8) from inner door panel
5	Remove all rivet residue and chips from the relevant front door	Remove all rivet residue. Remaining rivet residue will cause corrosion damage on the front door in question. Wet/dry vacuum cleaner
6	Install in the reverse order
