Indicator Lamp Of A/C Button In Front Climate Control Operating Unit Inoperative (LI83.30-P-067427)
Publication date: 2017-12-22Reference number: LI83.30-P-067427
INDICATOR LAMP OF A/C BUTTON IN FRONT CLIMATE CONTROL OPERATING UNIT INOPERATIVE
TECHNICAL SERVICE BULLETIN
Reference Number(s): LI83.30-P-067427 Version 2, Date of Issue:
December 22, 2017
| MERCEDES-BENZ: | Model series 205, 213, 238, 253 |
| GROUP: | 83.30 Air conditioning |
| REASON FOR CHANGE: | Damage code adjusted |
COMPLAINT
The indicator lamp of the A/C button in the operating unit of the front climate control is inoperative, although the air conditioning system is switched on. The air conditioning system functions correctly.
ATTACHMENTS
ATTACHMENTS
| File | Description |
|---|---|
| B.mp4 | Clip |
CAUSE
The LED in the A/C control panel may be damaged.
REMEDY
Replace the A/C control panel.
PARTS
PARTS
| Part number | ES1 | ES2 | Designation | Quantity | Note | EPC |
|---|---|---|---|---|---|---|
| Reference EPC for A/C control unit part number. |
ATTACHMENTS
ATTACHMENTS
| File | Description |
|---|---|

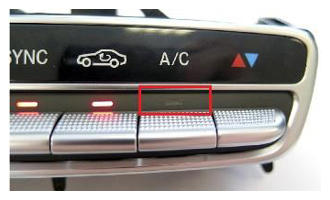

| A.jpg | Picture |
OPERATION NUMBERS/DAMAGE CODES
OPERATION NUMBERS/DAMAGE CODES
| Op. no. | Operation text | Time | Damage code | Note |
|---|---|---|---|---|
| 83-1917 | REPLACE OPERATING UNIT OF AIR CONDITIONING SYSTEM | 8340U 52 | Operating unit for automatic climate control does not operate correctly |
WIS-REFERENCES
WIS-REFERENCES
| Document number | Title | Note | Allocation |
|---|---|---|---|
| AR83.30-P-6630LW | Remove/install front climate control operating unit | Validity: Model 205, model 213, model 253 | Remedy |
| AR83.30-P-6630LWO | Remove/install front climate control operating unit | Validity: Model 238 | Remedy |
