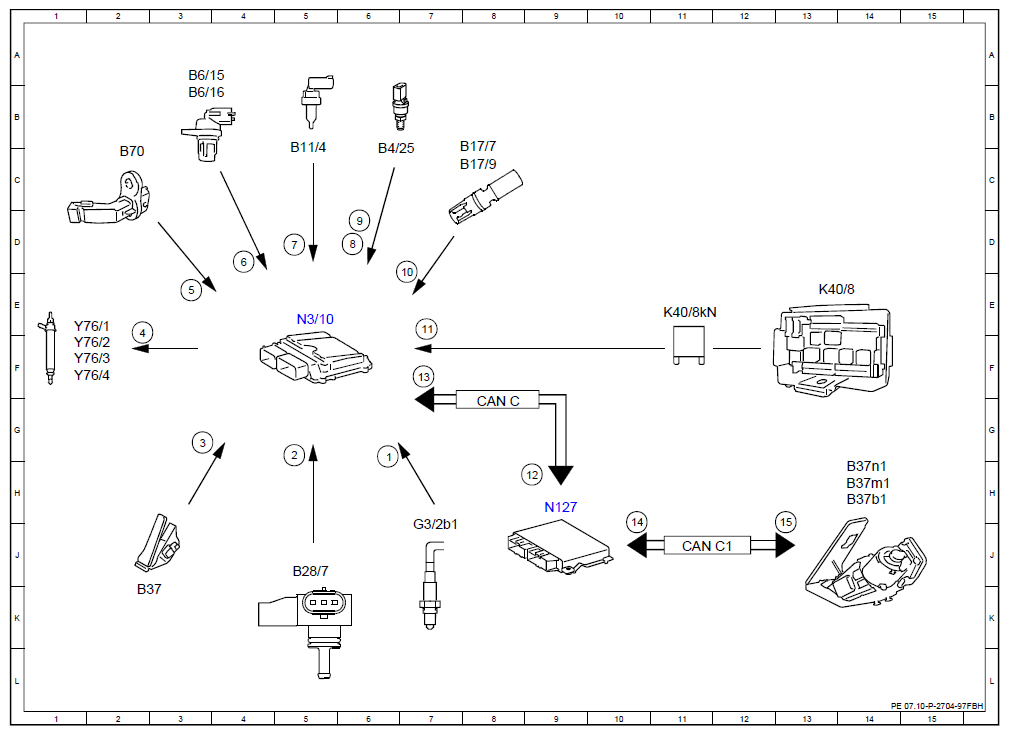

Electrical Function Diagram For Injection Control - PE07.10-P-2704-97FBH
Engine 274.9 in model 205.047/053/054/147/247/253
Engine 274.9 in model 253.354/954
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Oxygen sensor element, signal | 6G |
| 10 | Charge air temperature sensor, signal | 7E |
| 11 | Circuit 87, status | 7E |
| 12 | Engine running, signal | 9H |
| 13 | Powertrain control unit, status | 7F |
| 14 | Accelerator pedal module control unit, status | 10J |
| 15 | Powertrain control unit, request | 13J |
| 2 | Engine load, signal | 5G |
| 3 | Accelerator pedal sensor, signal | 3G |
| 4 | Fuel injectors, actuation | 2F |
| 5 | Engine speed, signal | 3E |
| 6 | Camshaft Hall sensor, signal | 4D |
| 7 | Coolant temperature sensor, signal | 5D |
| 8 | Fuel pressure, signal | 6D |
| 9 | Fuel temperature, signal | 6D |
| B11/4 | Coolant temperature sensor | 5C |
| B17/7 | Charge air temperature sensor upstream of throttle valve | 7C |
| B17/9 | Charge air temperature sensor downstream of throttle valve | 7C |
| B28/7 | Pressure sensor downstream of throttle valve | 5J |
| B37 | Accelerator pedal sensor | 2K |
| B37b1 | Accelerator pedal module sensor | 14H |
| B37m1 | Accelerator pedal module actuator motor | 14H |
| B37n1 | Accelerator pedal module control unit | 14H |
| B4/25 | Fuel pressure and temperature sensor | 6C |
| B6/15 | Intake camshaft Hall sensor | 3A |
| B6/16 | Exhaust camshaft Hall sensor | 3B |
| B70 | Crankshaft Hall sensor | 2C |
| CAN C | Engine CAN | 8G |
| CAN C1 | Drive train CAN | 11J |
| G3/2b1 | Sensor element of oxygen sensor upstream of catalytic converter | 7J |
| K40/8 | Engine fuse and relay module | 13E |
| K40/8kN | Circuit 87M relay | 11E |
| N127 | Drivetrain control unit | 9H |
| N3/10 | ME-SFI [ME] control unit | 5E |
| Y76/1 | Cylinder 1 fuel injector | 1E |
| Y76/2 | Cylinder 2 fuel injector | 1F |
| Y76/3 | Cylinder 3 fuel injector | 1F |
| Y76/4 | Cylinder 4 fuel injector | 1F |
