Remove/install sidebag sensor - AR91.60-P-0710RK
MODEL 231
| Risk of injury caused by performing testing or repair work on airbag or emergency tensioning retractor units. | Store airbag units with deployment side facing up; do not expose to temperatures greater than 100 °C. When working on these units, disconnect the power supply. | AS91.00-Z-0001-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on performing repair, body work and welding on vehicles with airbags and RTE units | AH91.00-P-0002-01M | ||
| Assessment of airbag and belt tensioner units in accident vehicles | AH91.00-P-0006-01B | ||
| Remove/install | |||
| 1 | Move front seat and front seat backrest forward | ||
| 2 | Remove left or right side paneling in rear | AR68.30-P-4780RK | |
| 3 | Disconnect battery ground line | AR54.10-P-0003RK | |
| 4 | Disconnect electrical connector (1) at left or right | ||

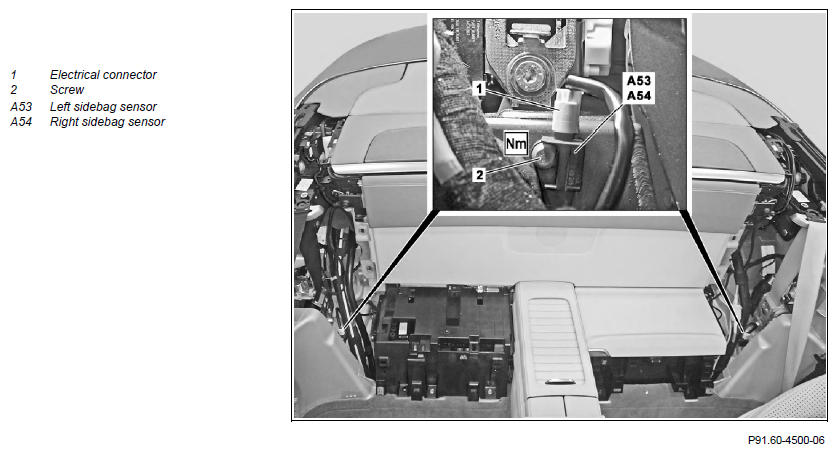

| 5 | Remove left sidebag sensor (A53) or right sidebag sensor (A54) | ||
| *BA91.60-P-1010-01M | |||
| 6 | Install in the reverse order |
AIRBAG
| Number | Designation | MODEL 231 | |
|---|---|---|---|
| BA91.60-P-1010-01M | Screw/bolt, sidebag and windowbag sensor to B-pillar | Nm | 9 |
