Remove/install alternator - AR15.40-P-5032RKC

ENGINE 279 in MODEL 231

MODIFICATION NOTES

11.4.13 Schraube Halter Hochdruckleitung an Halter   BA32.50-P-1005-02B

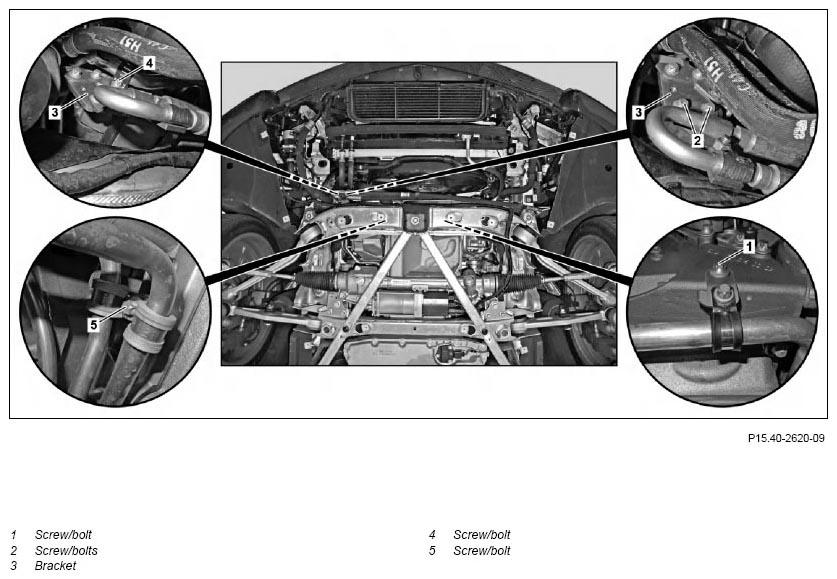

Fig 1: Alternator Remove/Install Components (1 Of 2)
G11128506Courtesy of MERCEDES-BENZ USA

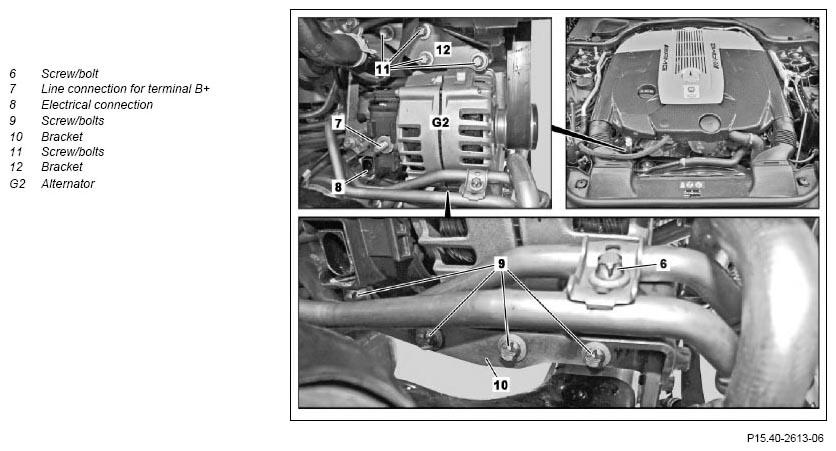

Fig 2: Alternator Remove/Install Components (2 Of 2)
G11128507Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
DANGER Risk of explosion  from explosive gas. Risk of poisoning and caustic burns  from swallowing battery electrolyte. Risk of injury  through burns to skin and eyes from battery acid or when handling damaged lead-acid batteries No fires, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers. AS54.10-Z-0001-01A
1 Disconnect battery ground line   AR54.10-P-0003RK
NOTES Notes on battery   AH54.10-P-0001-01A
2 Remove lower engine compartment paneling   AR61.20-P-1105RK
3 Remove fan unit   AR20.40-P-5050RKC
4 Mount guard plate for radiator
5 Remove poly-V belt   AR13.20-P-0001RKC
6 Remove screw/bolt (1) on control housing cover TORQUE SPECIFICATION Bolt, bracket for oil line return line to timing case *BA18.30-P-1004-01K
7 Remove screw/bolts (2) on alternator bracket (3) (G2) TORQUE SPECIFICATION Bolt, high-pressure line holder to bracket *BA32.50-P-1005-02B
8 Unscrew screw/bolt (4) from alternator bracket (3) (G2) TORQUE SPECIFICATION Screw/bolt, clamp for return oil line to alternator bracket *BA18.30-P-1006-01K
9 Remove screw/bolt (5) TORQUE SPECIFICATION Bolt, clamp to oil line *BA27.55-P-1004-01D
10 Remove screw/bolt (6) TORQUE SPECIFICATION Bolt, clamp of oil cooler oil line to bracket *BA27.55-P-1005-01D
11 Remove electrical line from line connection for circuit B+ (7) TORQUE SPECIFICATION Nut, terminal designation B+ to alternator *BA15.40-P-1003-01R
12 Unplug electrical connection (8) at alternator (G2)
13 Remove screw/bolts (9) from bracket (10) and alternator (G2) TORQUE SPECIFICATION Bolt, alternator/bracket to alternator bracket *BA15.40-P-1001-01R
14 Remove screw/bolts (11) and remove bracket (12) TORQUE SPECIFICATION Bolt, alternator/bracket to alternator bracket *BA15.40-P-1001-01R
15 Remove alternator (G2) upward
16 Install in the reverse order
17 Read out fault memory and clear
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04A
18 Carry out function check
ALTERNATOR

Number Designation Engine 279
BA15.40-P-1001-01R Bolt, alternator/bracket to alternator bracket Nm 20
ALTERNATOR

Number Designation Engine 279
BA15.40-P-1003-01R Nut, terminal designation B+ to alternator Nm 15
OIL COOLING

Number Designation Engine 279
BA18.30-P-1004-01K Bolt, bracket for oil line return line to timing case Nm 14
OIL COOLING

Number Designation Engine 279
BA18.30-P-1006-01K Screw/bolt, clamp for return oil line to alternator bracket Nm 9
OIL COOLING

Number Designation Transmission 722.9
BA27.55-P-1004-01D Bolt, clamp to oil line Nm 8
OIL COOLING

Number Designation Transmission 722.9
BA27.55-P-1005-01D Bolt, clamp of oil cooler oil line to bracket Nm 8
ACTIVE BODY CONTROL, LINES

Number Designation Model 231 with code 487
BA32.50-P-1005-02B Bolt, high-pressure line holder to bracket Nm 8
