Remove/install ignition coils - AR15.12-P-2003LFB

ENGINE 157, 276, 278 in MODEL 217

ENGINE 157, 276, 278 in MODEL 222

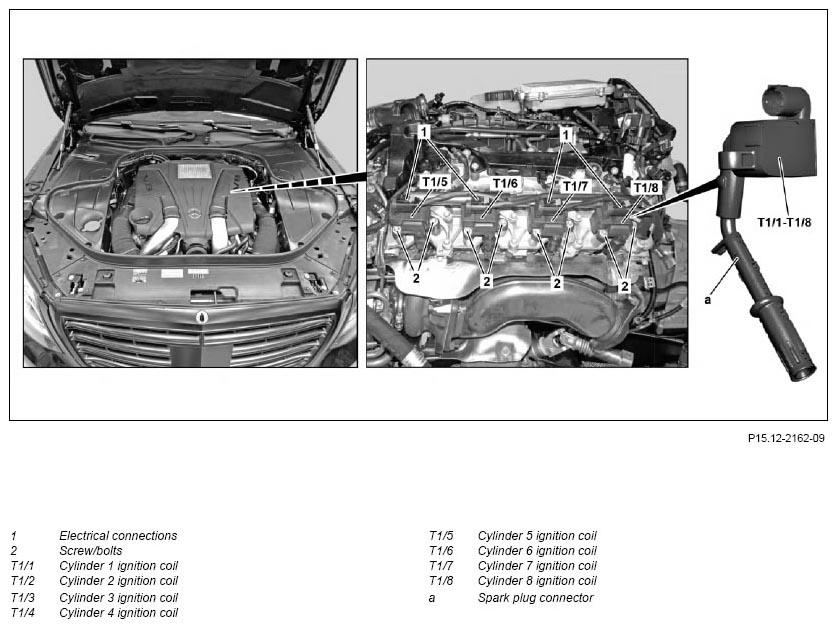

Shown on engine 278

Fig 1: Ignition Coils Remove/Install Components - Shown On Engine 278

Courtesy of MERCEDES-BENZ USA

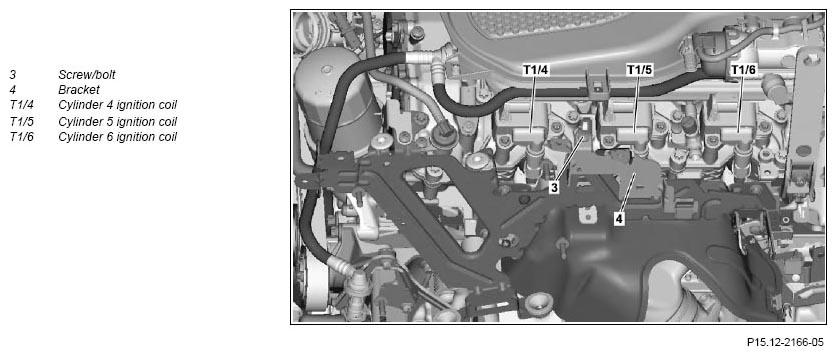

Shown on left cylinder head on engine 276.9

Fig 2: Ignition Coils Remove/Install Components - Shown On Left Cylinder Head On Engine 276.9

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by contact with parts conducting high voltages.	Do not touch parts which conduct high voltages. Persons who have electronic implants (e.g. cardiac pacemakers) may not perform any work on the ignition system.	AS15.10-Z-0001-01A
	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on avoiding damage to ignition system		AH15.10-P-0002-01V
	Remove/install
1	Remove upper engine cover	Engine 276.9 in model 222
2	Remove left and right air filter housing	Engine 276.8 in model 217, 222	AR09.10-P-1150LFA
		Engine 157, 278 in model 217, 222	AR09.10-P-1150LFB
3	Remove air filter housing with engine air intake duct upstream of air filter	Engine 276.9 in model 222 Bolt, air filter to cylinder head cover	*BA09.10-P-1001-01M
		Bolt, air filter to air intake pipe support brace	*BA09.10-P-1002-01M
4	Unclip engine wiring harness and place ME-SFI [ME] control unit with attached lines to one side	For removal of the ignition coils (T1/4, T1/5, T1/6). Engine 276.9 in model 222	AR07.08-P-7008LFH
5	Remove soundproofing on rails
6	Remove screw/bolt (3) and bracket (4)	Engine 276.9 in model 222 When removing the ignition coil for cylinder 5 (T1/5).
7	Disconnect electrical connections (1) at ignition coils (T1/1 to T1/6 or T1/1 to/1/8)
8	Remove screw/bolts (2) for ignition coils (T1/1 to T1/6 or T1/1 to/1/8)	Screw/bolt, ignition coil to cylinder head cover	*BA15.10-P-1001-04A
9	Pull out ignition coils (T1/1 to T1/6 or T1/1 to/1/8) with spark plug connectors (a) upwards and remove	To reduce the force required for plugging/unplugging the spark plug connector grease must be applied before installation of the spark plug connector. The spark plug connector will be damaged otherwise for renewed removal. Apply about 1 g of spark plug connector grease in the spark plug connector. Spark plug connector grease	*BR00.45-Z-1102-06A
10	Check ignition coils (T1/1 to T1/6 or T1/1 to/1/8) and spark plug connector (a) for damage and replace if necessary
11	Install in the reverse order
12	Read out fault memory using the diagnostic system and clear if necessary
			AD00.00-P-2000-04B
