Overview Of System Components For Theft Protection And Locking - GF80.00-P-9999GR
MODEL 166 up to model year 2016

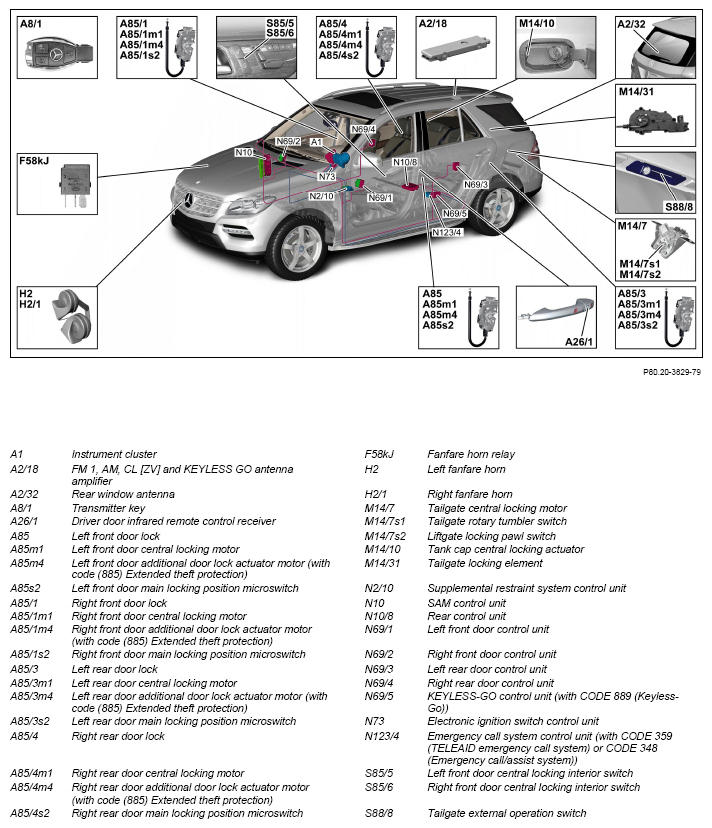

Central locking (CL), shown on model 166.0

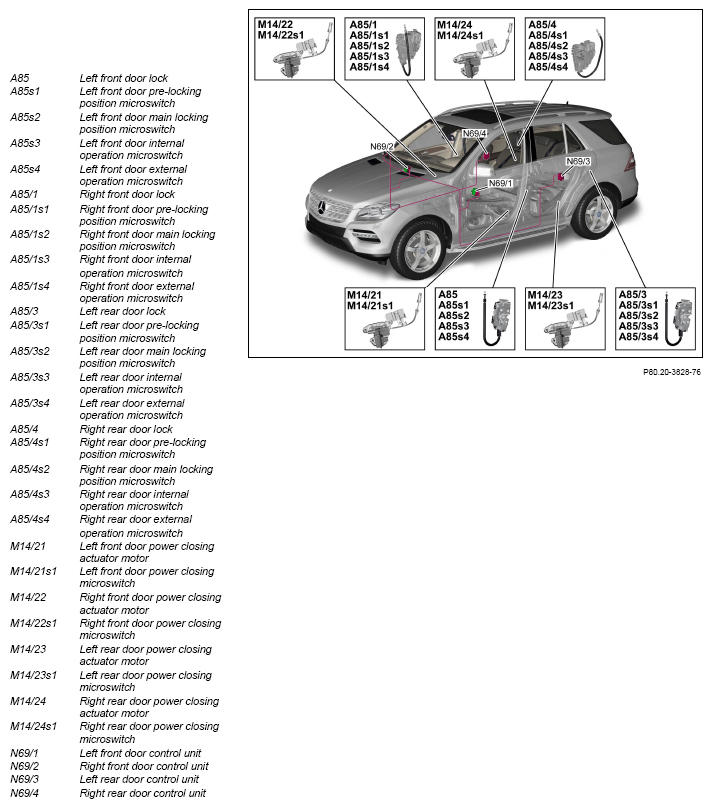

CL, power closing subfunction (with code (883) Power closing for doors and trunk lid)

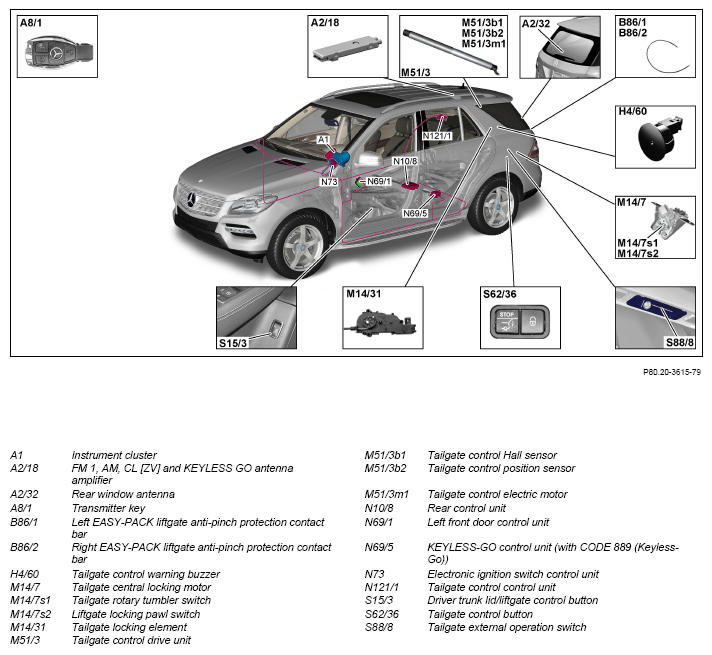

Liftgate control function (with code (890) EASY-PACK liftgate) shown on model 166.0

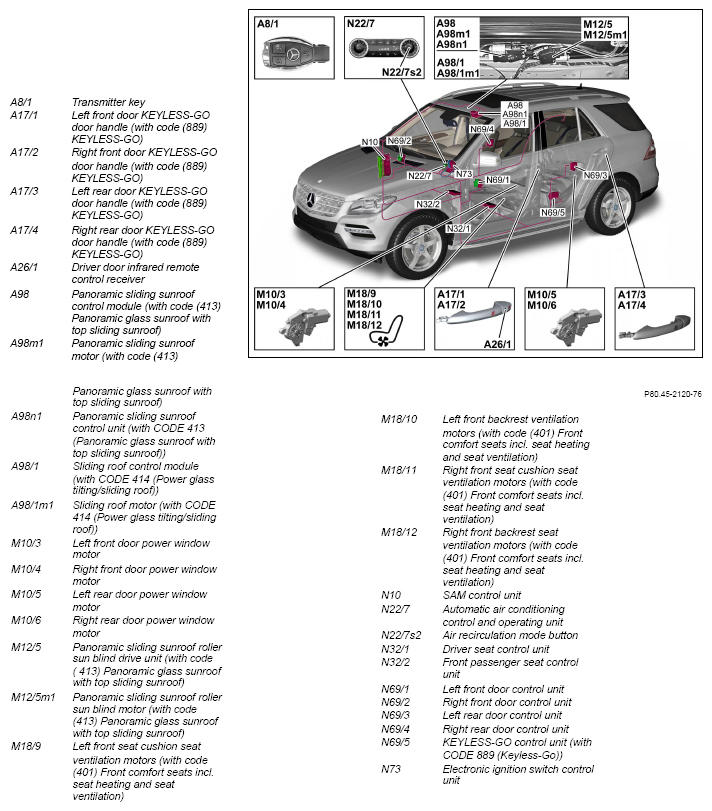

Convenience feature (CF [KFB]), model 166.0, shown with code (275) Memory package (driver seat, steering column, mirror)

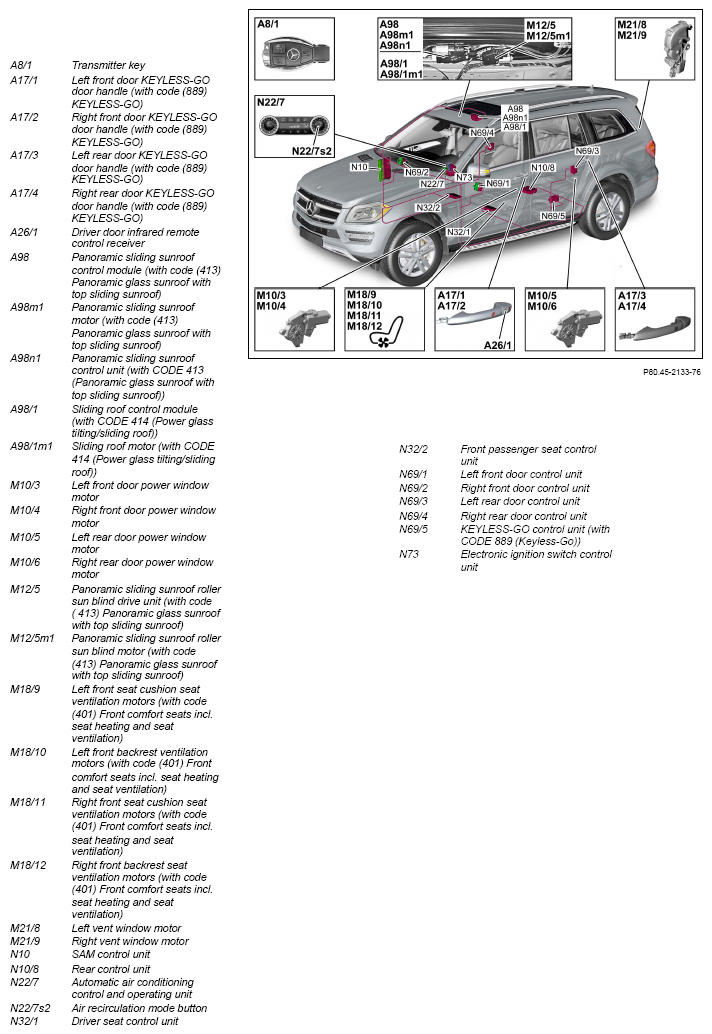

Convenience feature (CF), model 166.8

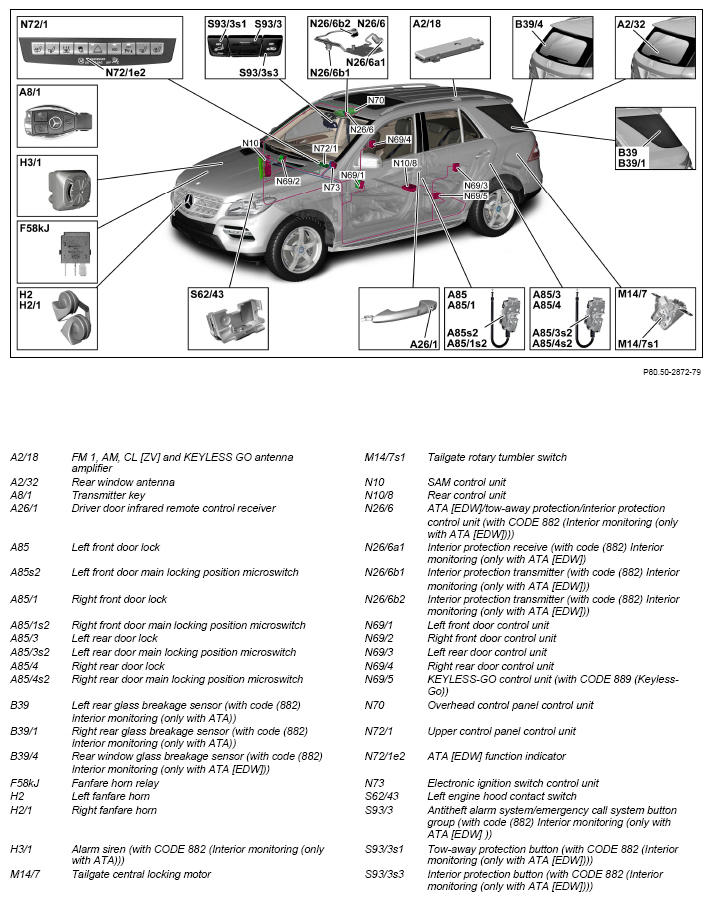

Anti-theft alarm system (ATA) (with code (551) Anti-theft alarm system (ATA)), shown on model 166.0

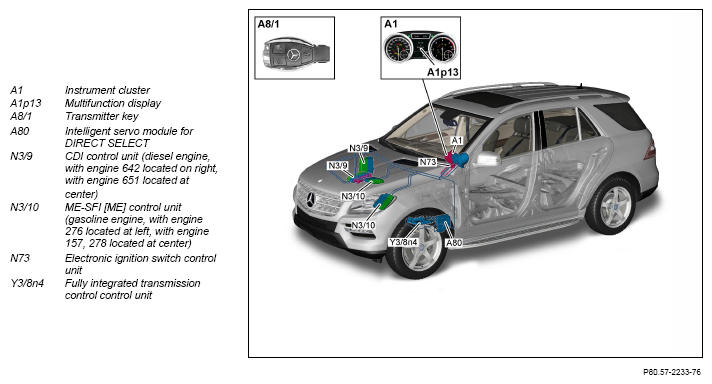

Drive authorization system stage 3 (DAS 3) or drive authorization system stage 4 (DAS 4), shown on model 166.0

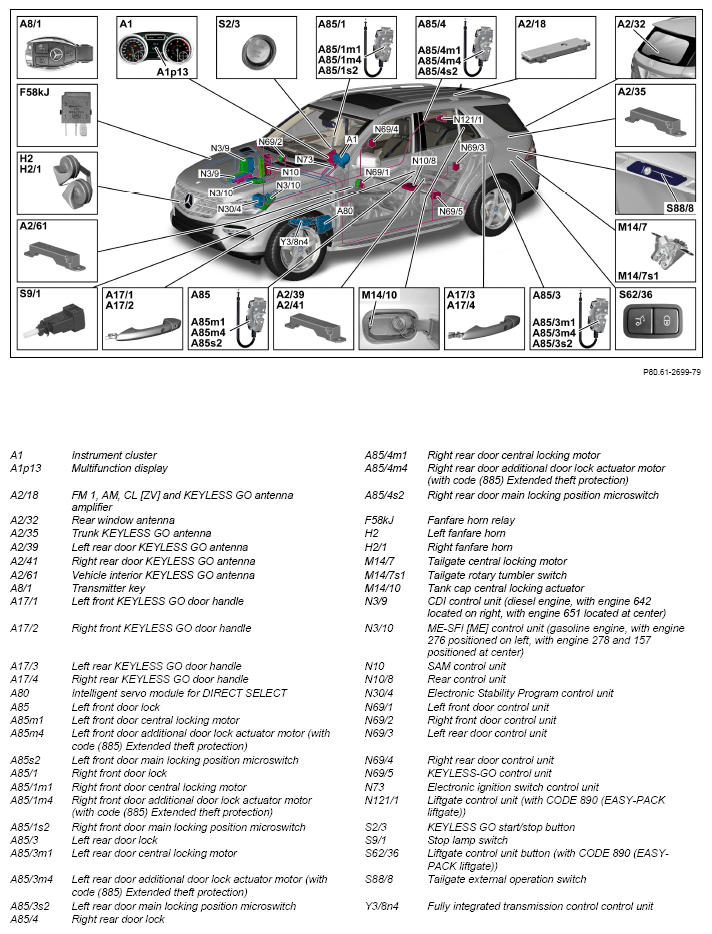

Keyless Go (with CODE 889 (Keyless Go)), shown on model 166.0
| Component description for instrument cluster | A1 | GF54.30-P-6000GR | |
| Component description for intelligent servo module for DIRECT SELECT | MODEL 166 with TRANSMISSION 722.9 up to model year 2016 A80 |
GF27.19-P-4020AHA | |
| Component description for panoramic sliding roof control module | MODEL 166 up to model year 2016 with CODE 413 (Panoramic glass roof with top sliding roof) A98, A98n1 |
GF77.20-P-4106GR | |
| Component description for sliding roof control module | MODEL 166 up to model year 2016 with CODE 414 (Power glass tilting/sliding roof) A98/1 |
GF77.20-P-4108GR | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080GR | |
| Component description for CDI control unit | MODEL 166 with ENGINE 642.8 up to model year 2016 N3/9 |
GF07.16-P-6000OGR | |
| MODEL 166 with ENGINE 651.9 up to 2/28/13 up to model year 2014 N3/9 |
GF07.16-P-6000OLG | ||
| MODEL 166 with ENGINE 651.9 as of 3/1/13 up to model year 2016 N3/9 |
GF07.16-P-6000OLL | ||
| Component description for ME-SFI (ME) control unit | MODEL 166 with ENGINE 276.8 up to model year 2016 N3/10 |
GF07.61-P-6000MMU | |
| MODEL 166 with ENGINE 276.9 up to model year 2016 N3/10 |
GF07.61-P-6000MMG | ||
| MODEL 166 with ENGINE 157.9, 278.9 up to model year 2016 N3/10 |
GF07.61-P-6000MMR | ||
| SAM control unit, component description | N10 | GF54.21-P-4157GR | |
| Rear control unit, component description | N10/8 | GF54.21-P-4134GR | |
| Component description for automatic air conditioning control and operating unit | N22/7 | GF83.40-P-3000GR | |
| ATA/tow-away protection/interior protection control unit, component description | MODEL 166 up to model year 2016 with CODE 882 (Interior monitoring (with ATA [EDW] only)) N26/6 |
GF80.50-P-4131GR | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119GR | |
| Component description for driver seat control unit | MODEL 166 up to model year 2016 with CODE 275 (Memory package (driver seat, steering column, mirrors)) N32/1 |
GF91.29-P-5231GR | |
| MODEL 166 up to model year 2016 without CODE 275 (Memory package (driver seat, steering column, mirrors)) N32/1 |
GF91.29-P-5231GRA | ||
| Component description for front passenger seat control unit | MODEL 166 up to model year 2016 with CODE P64 (Memory package) N32/2 |
GF91.29-P-5241GR | |
| MODEL 166 up to model year 2016 without CODE P64 (Memory package) N32/2 |
GF91.29-P-5241GRA | ||
| Component description for left front door control unit | N69/1 | GF72.29-P-6001GR | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009GR | |
| Component description for rear door control unit | N69/3, N69/4 | GF72.29-P-6021GR | |
| Component description for KEYLESS-GO control unit | MODEL 166 up to model year 2016 with CODE 889 (Keyless Go) N69/5 |
GF80.61-P-4204GR | |
| Component description for overhead control panel control unit | N70 | GF82.20-P-5216GR | |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040GR | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001GR | |
| Liftgate control unit, component description | MODEL 166 up to model year 2016 with CODE 890 (EASY-PACK liftgate) N121/1 |
GF80.20-P-6082GR | |
| Component description for emergency call system control unit | MODEL 166 up to model year 2016 with CODE 359 (TELE AID emergency call system) without CODE 348 (Emergency call/assistant system) N123/4 |
GF82.95-P-3212GRU | |
| MODEL 166 up to model year 2016 with CODE 348 (Emergency call/assistant system) N123/4 |
GF82.95-P-3212GRV | ||
| Component description for fully integrated transmission control unit | MODEL 166 with TRANSMISSION 722.9 up to model year 2016 Y38n4 |
GF27.60-P-5165AHA | |
| Table of contents for function description of theft protection and locking | GF80.00-P-0999GR |
