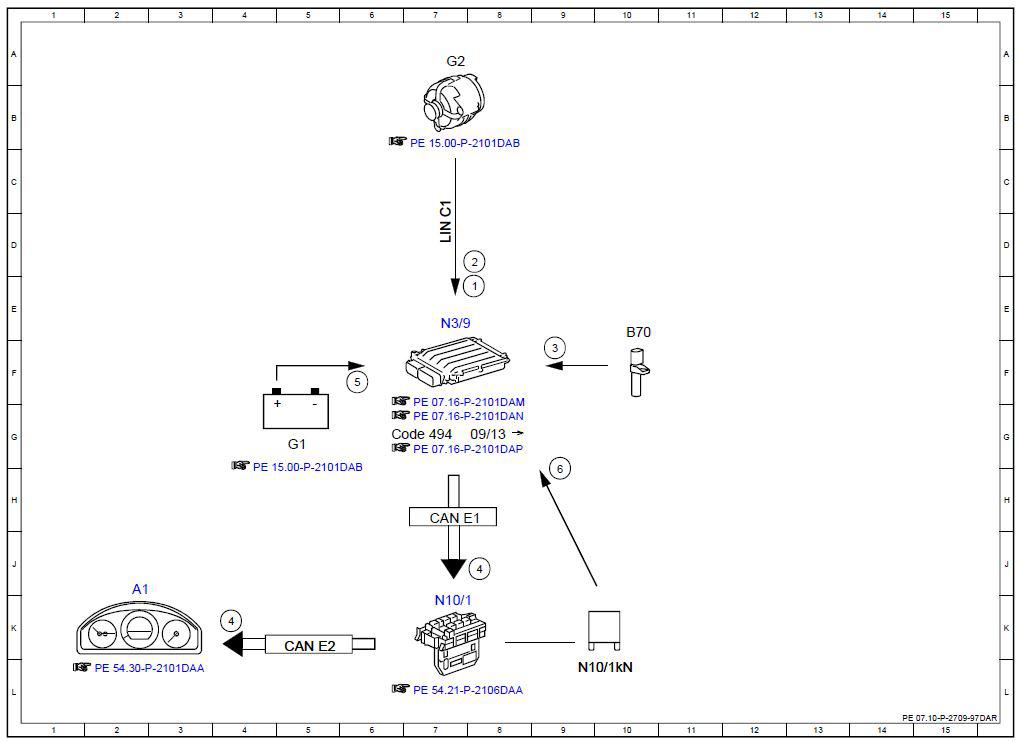

Electrical function schematic, alternator interface - PE07.10-P-2709-97DAR
ENGINE 651 as of 3/1/13 in MODEL 212 (except 212.098/298)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Alternator, status | 8E |
| 2 | Circuit 61, status | 8D |
| 3 | Engine speed, signal | 9F |
| 4 | Instrument cluster, message | 8J |
| 4 | Instrument cluster, message | 4K |
| 5 | Circuit 30, status | 6F |
| 6 | Circuit 87, status | 9H |
| A1 | Instrument cluster | 2J |
| B70 | Crankshaft Hall sensor | 10E |
| CAN E1 | Chassis CAN 1 | 7H |
| CAN E2 | Chassis CAN 2 | 5K |
| Code 494 | USA version | 6G |
| G1 | On-board electrical system battery | 5G |
| G2 | Alternator | 7A |
| LIN C1 | Drive train LIN | 7D |
| N10/1 | Front SAM control unit with fuse and relay module | 7K |
| N10/1kN | Engine circuit 87 relay | 9L |
| N3/9 | CDI control unit | 7E |
