Remove/install side deployment pressure sensor - AR91.60-P-0760CY

MODEL 204.9, 212, 218

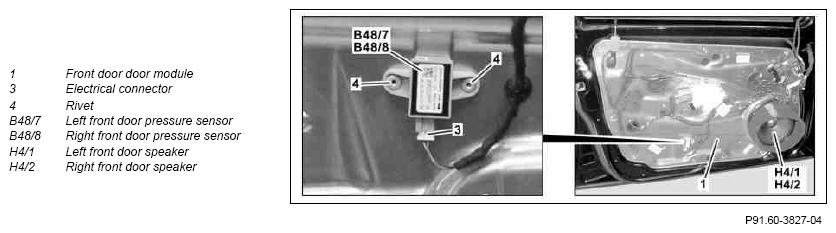

Fig 1: Identifying Side Deployment Pressure Sensor Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

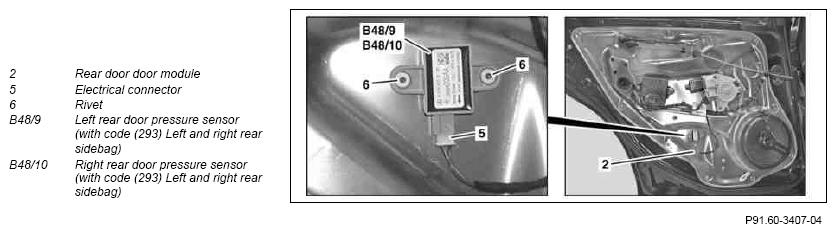

Fig 2: Identifying Side Deployment Pressure Sensor Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Remove door lining from left or right front door	MODEL 204, 212	AR72.10-P-1000CW
		MODEL 218 When removing the left front door pressure sensor (B48/7) and the right front door pressure sensor (B48/8).	AR72.10-P-1000EL
2	Remove left front door speaker (H4/1) and right front door speaker (H4/2)	When removing the left front door pressure sensor (B48/7) and the right front door pressure sensor (B48/8). Creates access to remove rivet residues from front door
3	Disconnect electrical connector (3) from left front door pressure sensor (B48/7) and right front door pressure sensor (B48/8)	When removing the left front door pressure sensor (B48/7) and the right front door pressure sensor (B48/8).
4	Drill out rivets (4) from left front door pressure sensor (B48/7) and right front door pressure sensor (B48/8)	When removing the left front door pressure sensor (B48/7) and the right front door pressure sensor (B48/8). Secure left front door pressure sensor (B48/7) or right front door pressure sensor (B48/8) to front door module (1) with new rivets (4). Blind/self-piercing riveting Rechargeable screwdriver, rechargeable drill
5	Remove left front door pressure sensor (B48/7) and right front door pressure sensor (B48/8) from front door module (1)	When removing the left front door pressure sensor (B48/7) and the right front door pressure sensor (B48/8).
6	Remove door lining on left or right rear door	Vehicles with code (293) Left and right rear sidebags and when removing left rear door pressure sensor (B48/9) and right rear door pressure sensor (B48/10).
		MODEL 204.9, 212	AR72.12-P-1010CW
		MODEL 218	AR72.12-P-1010EL
7	Remove rear door door module (2) from the left and right rear doors	Vehicles with code (293) Left and right rear sidebags and when removing left rear door pressure sensor (B48/9) and right rear door pressure sensor (B48/10). MODEL 212.0 with CODE Z04 (Light armoring)
		MODEL 212.0 without CODE Z04 (Light armoring)	AR72.12-P-0103CW
		MODEL 218 Creates access to remove rivet residues from rear door	AR72.12-P-0103EL
8	Disconnect electrical connector (5) from left rear door pressure sensor (B48/9) and right rear door pressure sensor (B48/10)	Vehicles with code (293) Left and right rear sidebags and when removing left rear door pressure sensor (B48/9) and right rear door pressure sensor (B48/10).
9	Drill out rivets (6) from left rear door pressure sensor (B48/9) and right rear door pressure sensor (B48/10)	Vehicles with code (293) Left and right rear sidebags and when removing left rear door pressure sensor (B48/9) and right rear door pressure sensor (B48/10). Secure left rear door pressure sensor (B48/9) or right rear door pressure sensor (B48/10) to rear door module (2) with new rivets (6). Rechargeable screwdriver, rechargeable drill Blind/self-piercing riveting
10	Remove left rear door pressure sensor (B48/9) and right rear door pressure sensor (B48/10) from rear door module (2)	Vehicles with code (293) Left and right rear sidebags and when removing left rear door pressure sensor (B48/9) and right rear door pressure sensor (B48/10).
11	Remove all rivet residue and chips from the relevant door	Completely remove rivet residues. Remaining rivet residue will make the door concerned corrode. Wet and dry vacuum cleaner
12	Install in the reverse order
