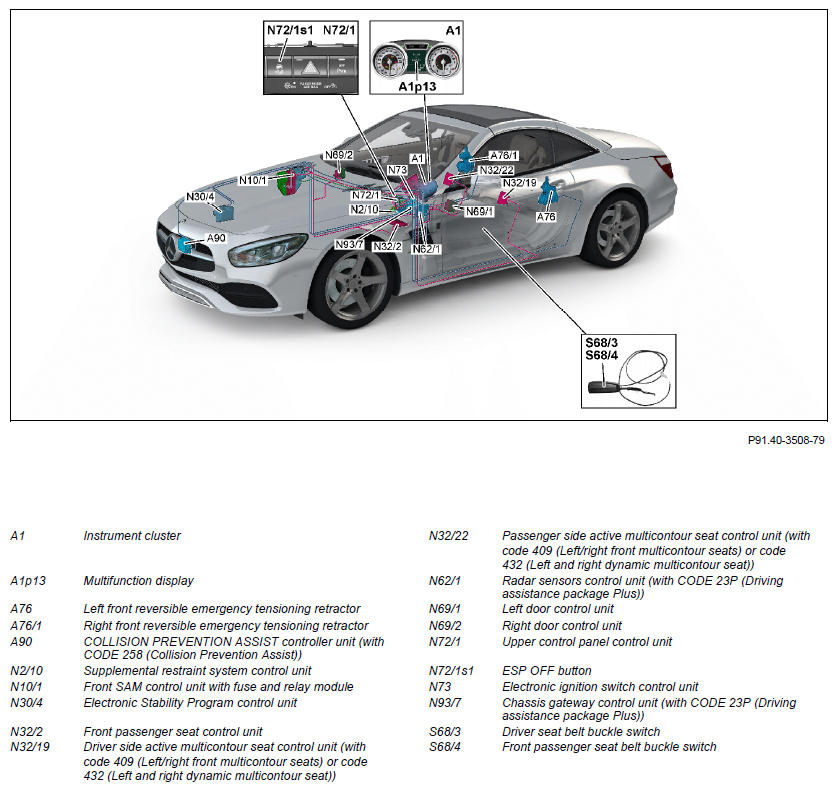

Overview of PRE-SAFE system components - GF91.40-P-9997RK
MODEL 231
Model 231 up to 2/29/16
with code 233 (DISTRONIC PLUS)
Model 231 up to 2/29/16
with code 237 (Active Blind Spot Assist)
The video and radar sensor system control unit (N62/2) is installed instead of the radar sensors control unit.
| Component description for instrument cluster | A1 | GF54.30-P-6000RK | |
| Component description for front reversible emergency tensioning retractors | A76, A76/1 | GF91.40-P-4020RK | |
| COLLISION PREVENTION ASSIST controller unit, component description | Model 231 as of model year 2017 with code 258 (COLLISION PREVENTION ASSIST) A90 |
GF30.30-P-3214RKM | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080RK | |
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070RK | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119RK | |
| Component description for front passenger seat control unit | N32/2 | GF91.29-P-5241RK | |
| Active multicontour seat control unit component description | Model 231 with code 409 (Left/right front multicontour seat) Model 231 with code 432 (Left and right dynamic multicontour seat) N32/19, N32/22 |
GF91.25-P-5220RK | |
| Component description for radar sensors control unit | Model 231 as of model year 2017 with code 23P (Driving Assistance package Plus) N62/1 |
GF30.30-P-3301RKM | |
| Component description for video and radar sensor system control unit | Model 231 up to model year 2017 with code 233 (DISTRONIC PLUS) with code 237 (Active Blind Spot Assist) with code 238 (Active lane keeping Assist) N62/2 |
GF30.30-P-3304RK | |
| Left door control unit, component description | N69/1 | GF72.29-P-4143RK | |
| Right door control unit, component description | N69/2 | GF72.29-P-4144RK | |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040RK | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001RK | |
| Component description for chassis gateway control unit | Model 231 as of model year 2017 with code 23P (Driving Assistance package Plus) N93/7 |
GF54.21-P-1010RKM | |
| Table of contents for PRE-SAFE function description | GF91.40-P-0997RK |
